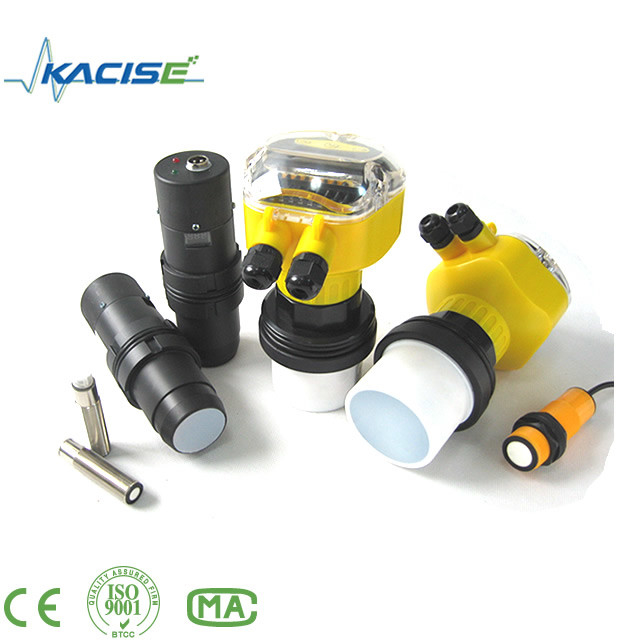

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor

  • High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor
High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor
Product Details:
Place of Origin: Shaanxi, China
Brand Name: GX support OEM
Model Number: GXUS series
Payment & Shipping Terms:
Price: $80.00 - $200.00/pieces
Packaging Details: carton or wooden box
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Model: Fuel Level Pressure Sensor Product Feature: Volvo Fuel Level Sensor
Port: Xi'an Or Other

High quality long distance ultra short blind zone  KUM series intelligent fuel level pressure sensor

 High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 0



Brief introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 10meters and provides sonar range information from 0.25meters out to 10meters out with 0.001meters or 0.01meters resolution. The interface output formats included are pulse width output, analog voltage output, NPN/PNP output and serial digital output.



Features

. Designed for outdoor or indoor distance and level measurement.

. High sensitivity

. Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.

. Free run operation can continually measure and output ranger information.

. 9V-28V supply with very low average current draw.

. Multi-kind output type such as analog (4-20mA, 0/1-5V, 0/1-10V), RS485.

. Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz



Parameters

Item



Measurement range

0.5m, 1m, 2m, 3m, 5m,10m,15m,20m,30m,40m,50m,60m

Measurement accuracy

0.25%~0.5%

resolution

3mm or 0.1%(The larger one is effective)

display

English LCD

Analog output



4-20mA, 0-10V

Switch output



PNP, NPN, relay

Power supply

24VDC(default)

220V AC+15%@50Hz

12VDC

Battery



Environment temperature

Display instrument-20~+60transducer-20~+80

Communication port

RS485,RS232 ( optional )

Protocol

Modbus-RTU

Protection grade

Display instrument IP65,transducer IP68

Transducer installation

According to the range and transducer select

According to the range and transducer select

Probe type

There are 6 type probes now and also there are 3 types under development.

Type1:PVDF

Type2:aluminium alloy

Type3:ABS

Type4: stainless steel 316

Type5: Teflon PTFE

Type6:titanium alloy

We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe.




Production Flow

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 2High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 3

Feedback

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 4

Packaging & Shipping

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 5

Certificates

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 6

Company Information

High quality long distance ultra short blind zone GXUM series intelligent fuel level pressure sensor 7

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services



  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.





We supply different models of distance and level measuring ultrsonic sensors with high quality, please let us know your requirements, we will provide most suitable solution and professional service for you. Please feel free to send us an inquiry, we will reply you within 12 hours.
