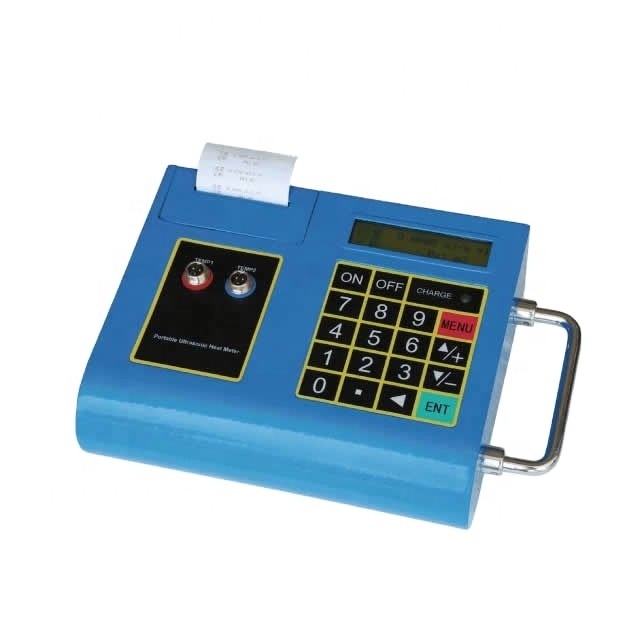

economical digital plastic flow meter with printer

economical digital plastic flow meter with printer

  • economical digital plastic flow meter with printer
economical digital plastic flow meter with printer
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Kacise
Model Number: KUF2000
Payment & Shipping Terms:
Price: $80.00 - $200.00/pieces
Packaging Details: carton or customers requests available
Supply Ability: 3000 Piece/Pieces per Month negotiable
Contact Now
Detailed Product Description
Name: Ecnomical Digital Plastic Flow Meter With Printer Accuracy: Up To 1.0%
Temperature: Customized Available Type: Ultrasonic Flow Meter
Port: Shanghai Or Other

  ecnomical digital plastic flow meter with printer

        GXUFM-2000 Series High Quality and Reliability Open Channel Flow Meter
Brief

 Smart ultrasonic flow meter can be used to measure various kind of fluid in the application field of tap water, heating, water

conservancy, metallurgy, chemical industry, machinery, energy indurstry.
both sensors and the host can be installed at the pipe. also can be used as calorimeter

Product intruduction of ecnomical digital plastic flow meter with printer

economical digital plastic flow meter with printer 0





GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed

on the pipes.  The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added



Feature of ecnomical digital plastic flow meter with printer



High flow accuracy
Up to 1 %
Suitable diameter
Choose different types of sensors, you can realize the diameters of DN15~DN6000mm tube measurement channel flow.
High reliability
Use low voltage.
Anti-interference is high
Use double-balanced signal to launch and receive circuit. It can resist inverter, television tower, high tension cable, etc.
Powerful function
1 channel is 4-20mA, as a flow sensor or quantity of heat sensor; 2 channel is OCT output, as a switch for flow/quantity of heat;3 channel is 4-20mA output, as a collector for data; 2 channel of 3 wires is PT100 signal output of resistors, as a watch for quantity of heat.
The transmittal is far, and it contact net quickly.
RS485 support connect wireless net, contact the GPRS485 can realize wireless transmittal.
Measure the quantity of heat
Contact temperature sensor, can measure the quantity of heat.





Ultrasonic flow thermal module/RTU be used in sundry liquids , support measure  online long-term.
Host install by lead rail, sensor be installed on outside of pipe wall. Host contact the sensor use the cable

for ultrasonic sensor, can realize measure flow, if contact the temperature sensor, can realize quantity measure.

It can be used in flow and quantity of heat, like, system integration, water resource, practice thrift energy,

drainage, heating power

economical digital plastic flow meter with printer 1

Type

Picture Specification Model DN Temp.  Size
Standard           clamp economical digital plastic flow meter with printer 2

Small



SS-2 DN15~DN100 -30~90°C 45X25X32mm
Middle SM-1 DN50~DN700 -30~90°C 64X39X44mm

Large

SL-1 DN300~DN6000 -30~90°C

97X54X53mm

High temp. clamp Small HS-2-HT DN15~DN100 -30~160°C 45X25X32mm
Middle HM-1-HT DN50~DN700 -30~160°C 64X39X44mm
Large HL-1-HT DN300~DN6000 -30~160°C 97X54X53mm
Plug in type Small BC-1 DN80~DN6000 -30~160°C 190X80X55mm
Large BC-2 DN80~DN6000 -30~160°C 335X80X55mm
Pipe type π type P3 DN15~DN25 -30~160°C 304 stainless steel threaded connection

Pipe type-A



B1 DN32/DN40 -30~160°C Carbon steel material threaded connection
Pipe type-B B2 DN50~DN6000 -30~160°C Carbon steel material flange connection





 Optional temp sensor of ecnomical digital plastic flow meter with printer

Picture Description Type No. Piperange Temp Fix con Accuracy
economical digital plastic flow meter with printer 3 3-wire PT100
clamp on type
TPT1 >DN50 40~160°C   easy

    100°C±0.8°C<0.1°C

economical digital plastic flow meter with printer 4 3-wire PT100
Plug in type
PPT1 >DN50 40~160°C shut flow down
economical digital plastic flow meter with printer 5 3-wire PT100 without
pressure loss plug in type
LPT 3 >DN50 40~160°C  easy
economical digital plastic flow meter with printer 6 mini 3-wire PT100
plug in type
MPT 3 >DN50 40~160°C  shut flow down

  Description of parts  of  ecnomical digital plastic flow meter with printer

economical digital plastic flow meter with printer 7



  Parameters of ecnomical digital plastic flow meter with printer

economical digital plastic flow meter with printer 8







Ordring info

 economical digital plastic flow meter with printer 9



 economical digital plastic flow meter with printer 10



economical digital plastic flow meter with printer 11



Application field of ecnomical digital plastic flow meter with printer



economical digital plastic flow meter with printer 12

           Water supply                   Heat supply               Intelligent building         Metallurgy               Peroleum         Powersupply



Packaging & Shipping



Packaing Detail: Standard export carton or wooden box.
