| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG03D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Shock: | 5000(g , 0.1 Ms, 1/2 Sine) | Power: | DC5(V) |
|---|---|---|---|
| Weight: | ≤50(g) | Vibration: | 6.06(g @ 20~2000 Hz) |
| Zero-bias Stability: | ≤0.2(deg/h) | Storage Temperature: | -55~+85(°C) |
| Nonlinearity: | ≤0.02(%FR) | Electrical Interface: | RS422 |

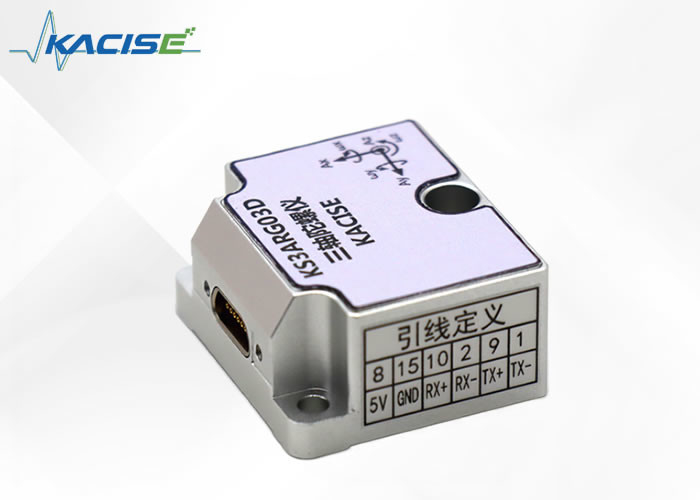

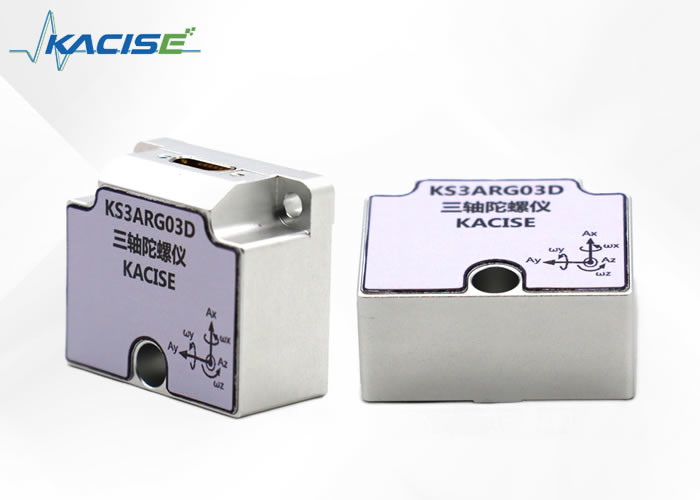

The KS3ARG03D series solid state angular rate sensors are precision instruments designed to measure the rate of rotation. They incorporate advanced micromechanical electronic system (MEMS) technology chips that are developed through the implementation of bipolar metal oxide semiconductor (BIMOS) production process. Additionally, these sensors utilize a spherical grid arrangement of current carrier welding technology to ensure optimal performance.
Known for their high reliability and robust packaging, these sensors are equipped with a Self-Test function. This enables the gyro to perform Built-In Tests (BIT) to verify functionality while embedded within a system.
The KS3ARG03D series operates on the basis of resonator gyro technology. At the core of the sensor's design are two polysilicon sensitive structures. Each one contains a high-frequency vibrating frame. These frames are driven electrostatically to resonate, forming the key elements necessary to measure velocity.
The frames' two outer ends incorporate a capacitance-sensitive structure. This structure is finely tuned to detect Coriolis forces that occur when the sensor experiences angular motion. As a result, an electric signal is generated, corresponding to the angular rate. This signal is then processed through an amplification stage and a modulation stage, ultimately producing an electrical output that is directly proportional to the angular velocity of the sensor.
● zero bias calibration
● temperature drift compensation
● wide measurement range
● wide bandwidth
● non-linear correction
● wide operating temperature range
● small size, light weight
● high impact acceleration resistance
Dimensions
| Parameter | KS3ARG03D |
| Power supply parameter | |
| power | DC5(V) |
| power dissipation | ≤1.1(W @5V DC) |
| Product performance | |
| range | ±500(triaxial)(deg/s) |
| Zero-bias | ≤±0.05(In 500°/s)(deg/s) |
| Zero-bias stability | ≤0.2(deg/h) |
| Zero-bias repeatability | ≤1(deg/s) |
| nonlinearity | ≤0.02(%FR) |
| Mean time between failures | 10(Kh MTBF) |
| electrical interface | RS422 |
| data updating rate(can set) | 2000(Hz@460800) |
| Size | 45×39×20(mm) |
| Weight | ≤50(g) |
| Environment | |
| Operating temperature | -40~+80℃ |
| Storage temperature | -55~+85℃ |
| Vibration | 6.06(g @ 20~2000 Hz) |
| Shock | 5000(g , 0.1 ms, 1/2 Sine) |
The realm of technology has witnessed incredible advancements, among which the evolution of the intelligent automobile stands prominent. These cars are not just mere vehicles; they are a blend of sophistication and artificial intelligence, propelling us towards a future of autonomous driving.
Delving deep into the crust of our planet, geological exploration techniques continue to advance. Through the use of cutting-edge tools and methods, scientists are now able to unlock the secrets held by rocks and minerals, aiding in the search for natural resources and understanding earth's history.
Robots have transcended the boundaries of science fiction and are now pivotal to modern industry and daily life. Their precision and efficiency have revolutionized manufacturing, healthcare, and even domestic chores, solidifying their role as indispensable partners in progress.
Guiding missiles with unerring precision, the technology behind missile guidance and control has become a cornerstone of defense systems worldwide. It ensures that security measures are robust and that each mission can be carried out with unparalleled accuracy.
In the airspace where stability is crucial, the control mechanisms of aircraft have seen remarkable innovations. Ensuring that the aircraft remain stable during various stages of flight, these control systems employ advanced algorithms and technology to maintain the safety and comfort of passengers.
Strapdown inertial navigation stands out as a field that has entirely revolutionized navigation systems. Freed from the constraints of gimbals, this technology utilizes motion sensors to calculate the position, orientation, and velocity of a moving object without the need for external references.
Lastly, antenna and camera stability have become pivotal in maintaining the quality of communications and imagery. Whether in broadcasting, surveillance, or remote sensing, enhanced stabilization techniques ensure that the information captured and transmitted is clear and undistorted, even in challenging environments.
