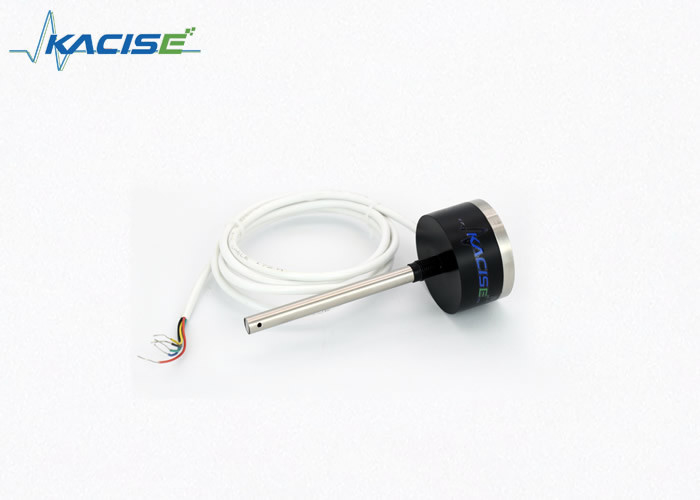

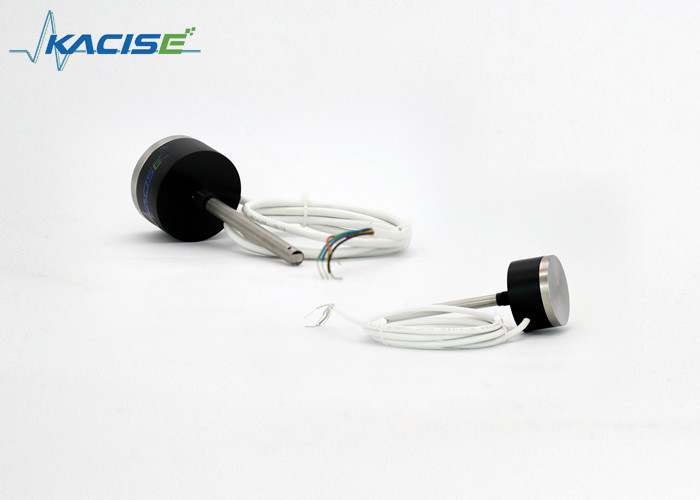

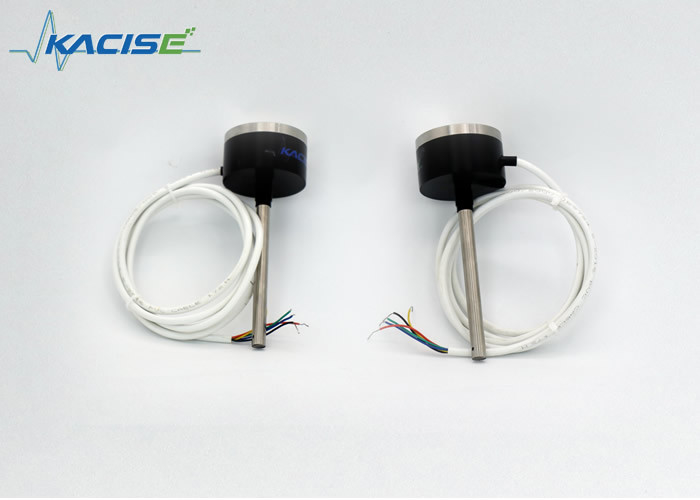

Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF

Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF

  • Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF
  • Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF
  • Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF
Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSLV606
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Ambient Temperature: -40°C~85°C Capacitance Measurement Range: 10PF~500PF
Range: 5cm-20cm Level Sensor Material: 304 Stainless Steel; PVC; PTFE
Temperature Drift: <0.01%FS/°C Power Supply Voltage: 5~36V DC; 12~36V DC(analog Output)
Probe Temperature Resistance: -200°C~200°C Pressure Range: Can Customize(Default Normal Pressure)
High Light:

Stainless Steel Capacitive Level Meter

,

Temperature Resistant Capacitive Level Meter

Introduction:



The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.

The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.



Features:

● The MODBUS RTU protocol is easy to integrate.

● Multiple output types to choose from.

● Customizable output.

● Customizable protection level.

● Corrosion resistance process can be customized.

● No moving parts, reliable and stable work.

● Can measure any liquid medium.

● Can measure the level of fluctuating liquid.



Technical Specifications:



Range 5cm-20cm
Accuracy ±2%
Capacitance measurement range 10PF~500PF
Protection level IP65; IP68(Can customize)
Pressure range Can customize(Default normal pressure)
Probe temperature resistance -200°C~200°C
Ambient temperature -40°C~85°C
Output RS485; 4-20mA; 0-10V; Switch(Can customize)
Power supply voltage 5~36V DC; 12~36V DC(analog output)
Level sensor material 304 Stainless Steel; PVC; PTFE
Long-term stability <0.1%FS/Year
Temperature drift <0.01%FS/°C


Dimension:



D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm



Temperature Resistant Stainless Steel Capacitive Level Meter With Capacitance Range 10PF-500PF 0Voltage output wiring:



Red: VCC   Black: GND   Yellow: 0-5V   Blue: RS485A   Green: RS485B



Current output wiring:

Red: Loop+   Loop: Loop-   Yellow: Null   Blue: RS485A   Green: RS485B



485 Output cable wiring:

Red: VCC   Loop: GND   Yellow: Null   Blue: RS485A   Green: RS485B



For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.

Applications:

The Fluid Level Meter is a capacitance level detector that uses capacitance measurement range of 10PF~500PF to measure the level of fluid in a container. The Capacitive Liquid Level Sensing feature of the product ensures accurate measurement of the fluid level with an accuracy of ±2%. This makes it ideal for use in applications where precise measurement of fluid level is required.

The product is suitable for a wide range of applications such as in chemical tanks, water tanks, oil tanks, and other fluid storage containers. It is also ideal for use in food processing, pharmaceutical, and other industries that require accurate and reliable fluid level measurement.

The Fluid Level Meter has a long-term stability of less than 0.1%FS/Year, which ensures that the product will maintain its accuracy over time. The range of the product is 5cm-20cm, which makes it suitable for use in containers of varying sizes.

The probe temperature resistance of -200°C~200°C ensures that the product can be used in applications where the temperature of the fluid is extreme. This makes it suitable for use in industries such as oil and gas, chemical processing, and others.

In summary, the Kacise KSLV606 Fluid Level Meter is a reliable and accurate product that is suitable for a wide range of applications that require capacitive level measurement. Its Capacitive Liquid Level Sensing feature, along with its accuracy, long-term stability, and temperature resistance, make it an ideal product for use in various industries.

Support and Services:



-Troubleshooting assistance

- Product installation guidance

- Maintenance and repair services

Our goal is to provide you with the best possible experience with your Fluid Level Meter. Contact us today to learn more about our technical support and services.

Packing and Shipping:

Product Packaging:

The Fluid Level Meter product comes in a sturdy cardboard box with foam inserts to protect the device during shipping. The product is accompanied by a user manual and a calibration certificate.

Shipping:

The product will be shipped within 2 business days of placing the order and should arrive within 5-7 business days for domestic orders and 10-14 business days for international orders.
