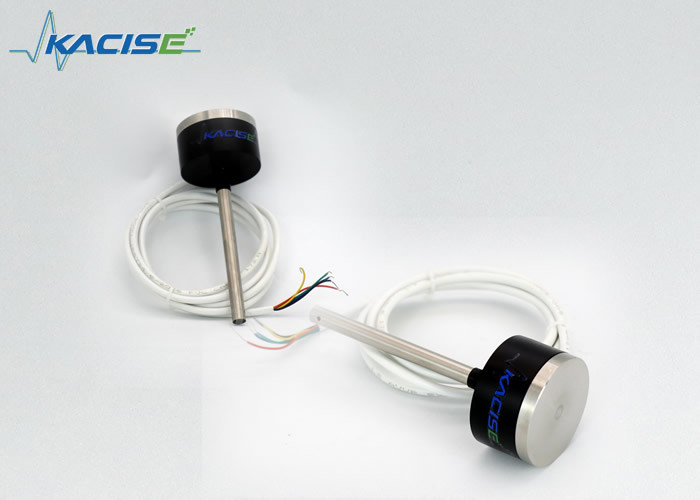

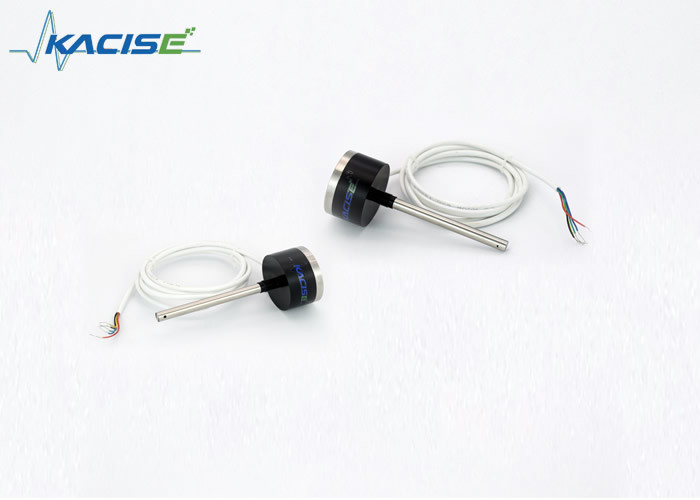

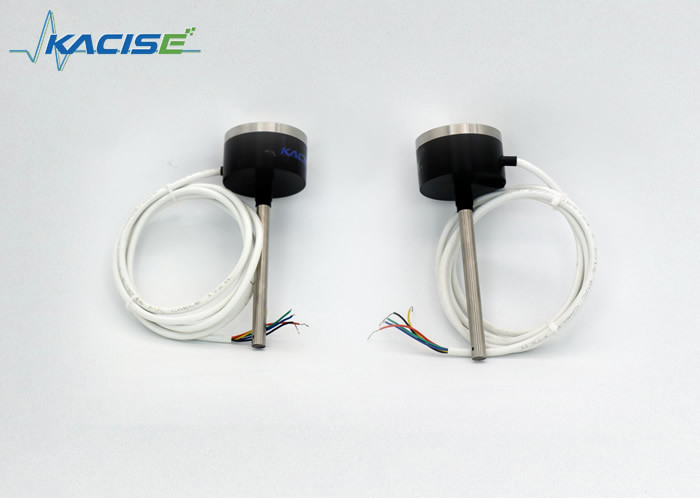

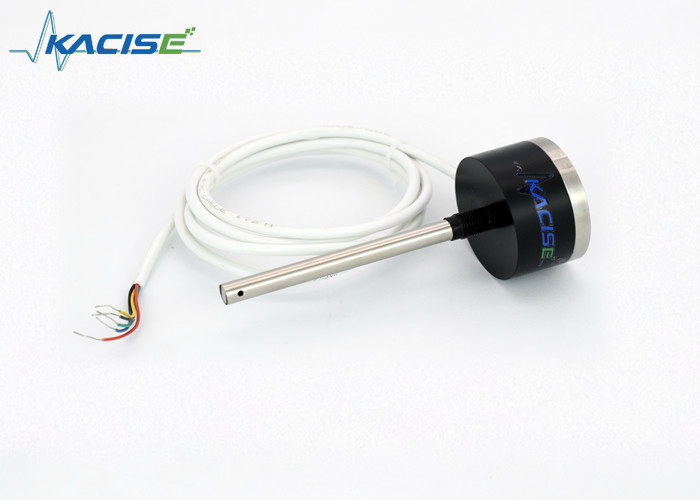

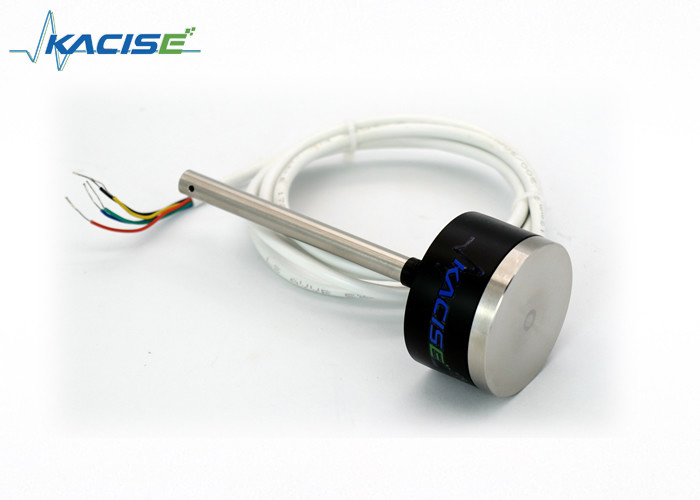

Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output

Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output

  • Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output
  • Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output
  • Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output
  • Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output
  • Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output
Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSLV606
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Level Sensor Material: 304 Stainless Steel; PVC; PTFE Probe Temperature Resistance: -200°C~200°C
Output: RS485 Pressure Range: Can Customize(Default Normal Pressure)
Long-term Stability: <0.1%FS/Year Ambient Temperature: -40°C~85°C
Protection Level: IP65; IP68(Can Customize) Capacitance Measurement Range: 10PF~500PF
High Light:

Capacitive Fuel Level Sensor

,

Oil Tank Fuel Level Sensor

,

RS485 Fuel Level Sensor

Introduction:



The KSLV606 capacitive level sensor produced by Kacise is a small range level sensor, can be used to measure a variety of liquids, no moving parts inside, not affected by steam. It also has a good physical filtering effect for liquid fluctuations, making the measurement result fluctuate less, and the use of multiple capacitor detection plate technology, the maximum measurement range is greatly improved, and more flexible, and can help troubleshoot sensor faults.

The KSLV606 sensor has the advantages of miniaturization, long-term reliability, high temperature resistance, high sensitivity, good linearity, customizable length, customizable output, customizable protection level, and customizable corrosion resistance process. The output is RS485, two-wire 4-20mA, voltage output, switching output, RS485 to 4G, RS485 to Bluetooth and other output modes. Widely used in water treatment, paper making, petrochemical, metallurgy, electric power, pharmaceutical.



Features:

● The MODBUS RTU protocol is easy to integrate.

● Multiple output types to choose from.

● Customizable output.

● Customizable protection level.

● Corrosion resistance process can be customized.

● No moving parts, reliable and stable work.

● Can measure any liquid medium.

● Can measure the level of fluctuating liquid.



Technical Parameters:

Range 5cm-20cm
Accuracy ±2%
Capacitance measurement range 10PF~500PF
Protection level IP65; IP68(Can customize)
Pressure range Can customize(Default normal pressure)
Probe temperature resistance -200°C~200°C
Ambient temperature -40°C~85°C
Output RS485; 4-20mA; 0-10V; Switch(Can customize)
Power supply voltage 5~36V DC; 12~36V DC(analog output)
Level sensor material 304 Stainless Steel; PVC; PTFE
Long-term stability <0.1%FS/Year
Temperature drift <0.01%FS/°C


Dimension:



D=48mm, H=29mm, d=M10*1mm(Mounting thread), L=Range, D1=8mm

Capacitive Fuel Level Sensor Are Used For Oil Tank Level Monitoring With -40°C~85°C Ambient Temperature And RS485 output 0
Voltage output wiring:



Red: VCC   Black: GND   Yellow: 0-5V   Blue: RS485A   Green: RS485B



Current output wiring:

Red: Loop+   Loop: Loop-   Yellow: Null   Blue: RS485A   Green: RS485B



485 Output cable wiring:

Red: VCC   Loop: GND   Yellow: Null   Blue: RS485A   Green: RS485B



For other and customized wiring methods, see the label on the sensor, or consult the after-sales personnel.

Applications:

The KSLV606 Fluid Level Meter has a power supply voltage of 5~36V DC and 12~36V DC(analog Output). The long-term stability of the product is less than 0.1%FS/Year, and the accuracy is ±2%. The range of the product is 5cm-20cm, which makes it suitable for a wide range of applications.

The level sensor material of the KSLV606 Fluid Level Meter is made of 304 Stainless Steel, PVC, and PTFE, which ensures that it is durable and can withstand harsh environments. The product is also equipped with Capacitive Sensors for Point Level Detection, which makes it a reliable and accurate solution for fluid level measurement.

The KSLV606 Fluid Level Meter is suitable for a variety of applications, such as water treatment, chemical processing, and oil and gas industries. It can also be used in food and beverage processing, pharmaceuticals, and other industries that require accurate fluid level measurement.

The capacitive water level sensor is easy to install and operate, making it an ideal solution for a wide range of scenarios. It can be used to measure the fluid level in tanks and containers, as well as in pipes and other industrial equipment.

In conclusion, the Kacise KSLV606 Fluid Level Meter is a reliable and accurate solution for fluid level measurement. Its high-quality materials, wide range of applications, and easy installation and operation make it an ideal choice for various scenarios.

Support and Services:



-Troubleshooting assistance

- Product installation guidance

- Maintenance and repair services

Our goal is to provide you with the best possible experience with your Fluid Level Meter. Contact us today to learn more about our technical support and services.

Packing and Shipping:

Product Packaging:

The Fluid Level Meter product comes in a sturdy cardboard box with foam inserts to protect the device during shipping. The product is accompanied by a user manual and a calibration certificate.

Shipping:

The product will be shipped within 2 business days of placing the order and should arrive within 5-7 business days for domestic orders and 10-14 business days for international orders.
