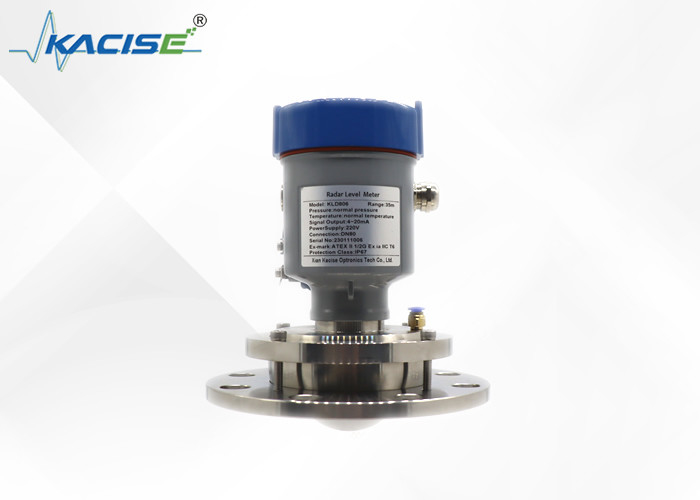

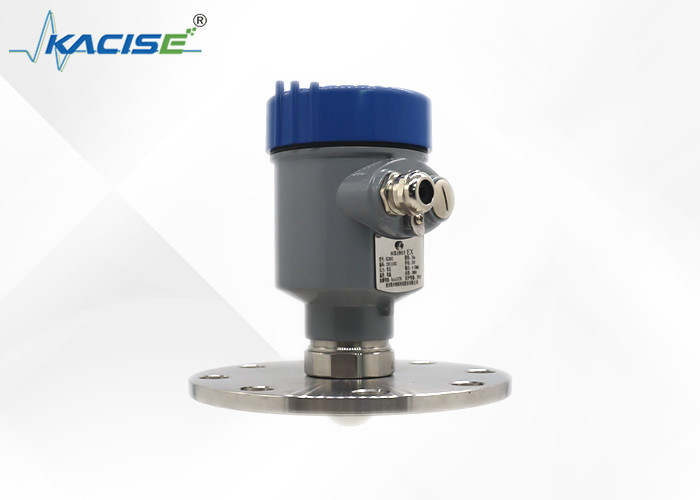

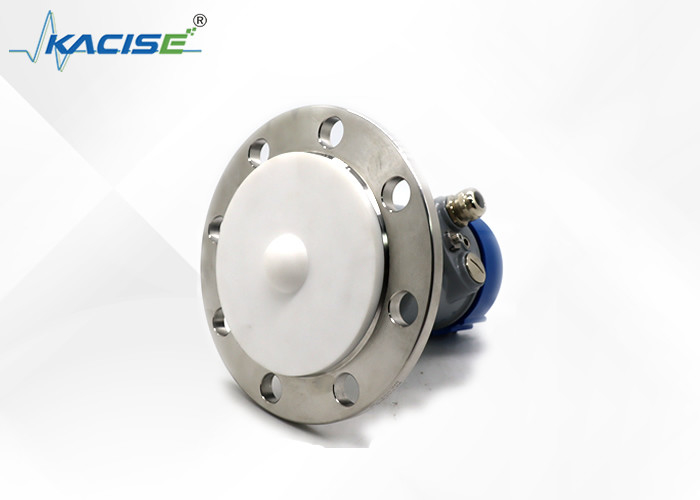

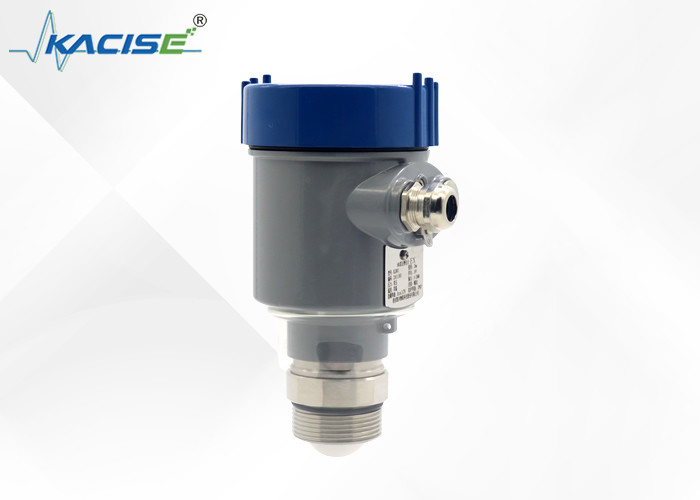

Name: Coal Mining Industry Mine Level Meter with Small Blind Area and High Precision Protected by IP67
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD800 Series
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

Coal Mining Industry Mine Level Meter with Small Blind Area and High Precision Protected by IP67

Small Blind Area Mine Level Meter

High Precision Mine Level Meter

IP67 Mine Level Meter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLD800 Series

Document:

KLD800 Series Radar Level S...v1.pdf

Request A Quote

Coal Mining Industry Mine Level Meter with Small Blind Area and High Precision Protected by IP67

Product Details

Measuring Range::

0.05m～10/20/30/60/100m

Protection Class:

IP67

Center Frequency::

80GHz

Antenna Material::

PTFE

Highlight:

Small Blind Area Mine Level Meter

High Precision Mine Level Meter

IP67 Mine Level Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Rs485 Intelligent Ultrasonic Sensor 4 - 20mA Wide Range

Get Best Price

GXRS Series Water Tank Level Indicator Sensor Stainless Steel Material

Get Best Price

KUS550 Ultrasonic Sensor For Distance And Level Measurement with ip68

Get Best Price

RS485 Output Fluid Level Meter Beer Tank Liquid Level Measurement Sensor

Get Best Price

86--17719566736

Contact Now

Product Description

Coal Mining Industry Mine Level Meter with Small Blind Area and High Precision Protected by IP67

Product Specifications

Measuring range	0.05m～10/20/30/60/100m
Protection class	IP67
Center frequency	80GHz
Antenna material	PTFE

Product Overview

Operating Principle

This high-precision mine level meter with minimal blind area is specifically designed for coal mining applications. It provides accurate water level measurements in challenging underground environments, helping prevent flooding and ensuring mining safety. The advanced millimeter wave radar technology enables continuous monitoring with ±2mm accuracy and a minimal 0.05m blind zone.

Key Features

Millimeter wave radar technology with ±2mm measurement accuracy
Minimal measurement blind zone of just 0.05m
Compact antenna design for versatile installation
Multiple lens antenna options with concentrated energy for stronger echo signals
Excellent penetration capability for use in adhesion and condensation conditions
Wide dynamic signal range for stable measurement of low dielectric constant media
Multiple measurement modes including fast response radar mode

Model Specifications

KLD801

Medium: Liquid, non-corrosive

Measuring range: 0.05m～10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40～80℃

Process pressure: -0.1～0.3 MPa

Antenna size: 32mm lens antenna

KLD802

Medium: Non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN80

Process temperature: -40～110℃

Process pressure: -0.1～1.6MPa

Antenna size: 32mm lens antenna

KLD803

Medium: Strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: Flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna

KLD804

Medium: Non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

KLD805

Medium: Strong corrosive liquid, steam, foam, high temperature and high pressure

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN80

Process temperature: -40～200℃

Process pressure: -0.1～2.5MPa

Antenna size: 76mm lens antenna

KLD806

Medium: Solid, storage container, process container, strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: Flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna

Production & Quality

Company Profile

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, ensuring our products meet international standards.

With 10 years of specialization in manufacturing pressure, level and flow measuring instruments, we have become a professional measuring instrument manufacturer and solution provider. Our products are exported to over 20 countries including America, Spain, Australia, and Chile.

We maintain reasonable prices, efficient production times, and excellent after-sales service as our core values.

Our Services

24-hour response to inquiries
Fluent English support from experienced staff
OEM & ODM services available
Distributorship opportunities
Strict protection of sales areas and design confidentiality
Volume discounts available
Paid repair services for non-warranty issues

Frequently Asked Questions

Q: What information is needed to select the appropriate mine level meter?

A: Please provide: application field, medium, measuring range, output signal, power supply, temperature, and installation method for accurate model selection and quotation.

Q: Are you a manufacturer or trading company?

A: We are an ISO-certified manufacturer specializing in level and flow measuring instruments, offering OEM & ODM services.

Q: What is your minimum order quantity?

A: Sample orders are acceptable to initiate our cooperation.

Q: What is your delivery time?

A: Typical delivery is 3-15 working days after payment confirmation.
