Name: KWD110 Ultrasonic Depth Sounder with 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD110
Price: 1,000.00 USD
Availability: InStock

Home > products > Fluid Level Meter >

KWD110 Ultrasonic Depth Sounder with 4-20mA Output

Split-Type Ultrasonic Depth Sounder

KWD110 Ultrasonic Depth Sounder

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KWD110

Document:

KWD110 Split Ultrasonic Dep....0.pdf

Request A Quote

KWD110 Ultrasonic Depth Sounder with 4-20mA Output

Product Details

Measurement Accuracy:

1%~3%

Resolution:

5mm Or 0.5% (the Larger One)

Display:

Chinese LCD Display

Analog Output:

4~20mA/750Ω Load

Relay Output:

Single Channel Is 2 Groups Of AC 250V/8A Or DC 30V/5A, State Programmable

Communication:

Optional 485, 232 Communication (manufacturer Protocol)

Ambient Temperature:

Display Instrument -20~+60℃, Probe -20~+80℃

Highlight:

Split-Type Ultrasonic Depth Sounder

KWD110 Ultrasonic Depth Sounder

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Corrosion Resistant Capacitive Level Transmitter With NPN/PNP Output Is Used For Level Monitoring In Laboratory Reactors

Get Best Price

Video

KLD800 Series 80G Radar Level Gauge PTFE Antenna Size Small Blind Spot

Get Best Price

Video

0.1m~3m Capacitive Water Level Sensor High Performance And Wide Range

Get Best Price

1m Liquid Tank Level Sensor IP67 Fluid Level Meter RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

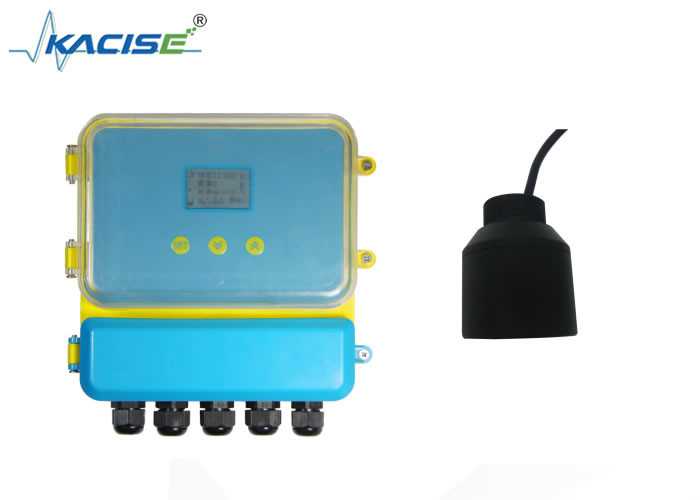

KWD110 Split-Type Ultrasonic Depth Sounder

Product Overview

The KACISE KWD110 Split-Type Ultrasonic Depth Sounder is a highly reliable and cost-effective solution for measuring mud levels and water depth. Designed for easy installation and maintenance, it uses ultrasonic technology to detect underwater distances through liquid propagation. With a measurement range customizable up to 70 meters and an accuracy of 1%-3%, this device is ideal for various industrial applications. Its split-type design ensures flexibility, while the IP68-rated probe and IP65-rated display instrument guarantee durability in harsh environments.

Technical Specifications

Attribute	Value
Measurement Accuracy	1%~3%
Resolution	5mm or 0.5% (the larger one)
Display	Chinese LCD display
Analog Output	4~20mA/750Ω load
Relay Output	Single channel is 2 groups of AC 250V/8A or DC 30V/5A, state programmable
Communication	Optional 485, 232 communication (manufacturer protocol)
Ambient Temperature	Display instrument -20~+60℃, probe -20~+80℃

Additional Technical Parameters

Range: Conventional measuring range is 5-20 meters, customizable up to 70 meters
Power Supply: Standard 220V AC+15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery
Protection Level: Display instrument IP65, probe IP68
Probe Cable: Up to 100 meters (standard 10 meters)

Installation Dimensions

Appearance
