SafeO2 Electrochemical Sensor - A Reliable Alternative to Alphasense

SafeO2 Electrochemical Sensor - A Reliable Alternative to Alphasense

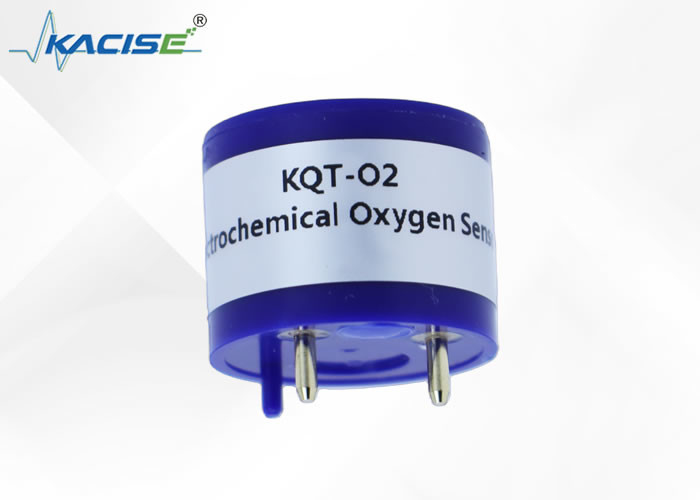

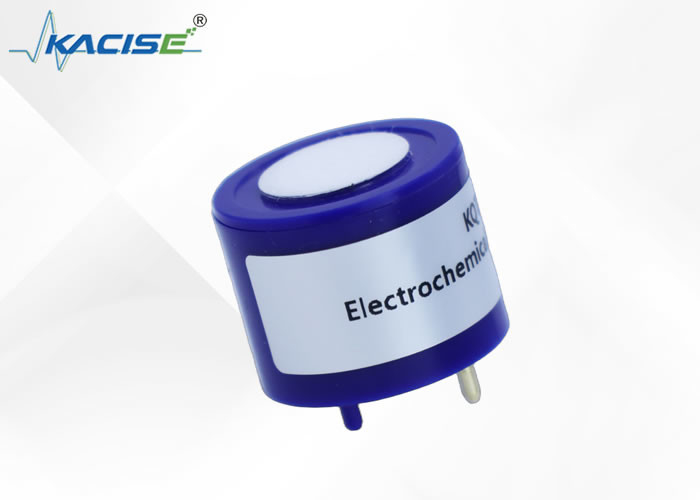

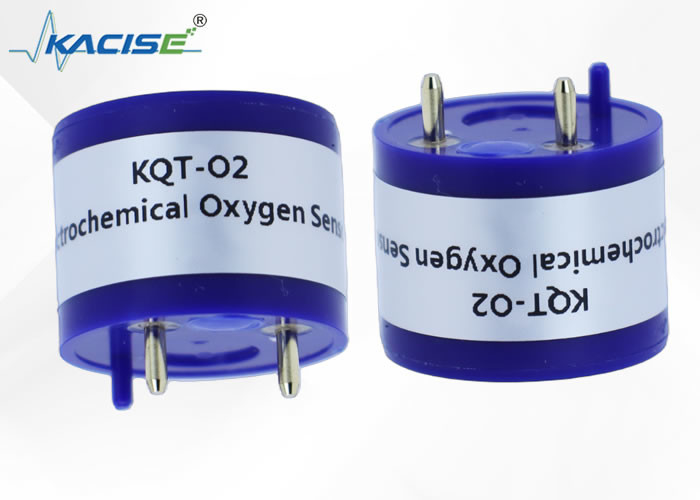

SafeO2 Electrochemical Sensor

Alphasense Electrochemical Sensor

Reliable Electrochemical Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KQT-O2

Contact Us
Request A Quote
Product Details
Load Resistance:
100Ω
Temperature Range:
-30℃ - 50℃
Detection Principle:
Electrochemical Two-electrode
Detection Range:
0 - 25%VOL
Maximum Load Concentration:
30%VOL
Output Signal:
100±20 μA In Air
Highlight:

SafeO2 Electrochemical Sensor

,

Alphasense Electrochemical Sensor

,

Reliable Electrochemical Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

SafeO2 Electrochemical Sensor - A Reliable Alternative to Alphasense

1.Overview

KACISE’s SafeO2 Electrochemical Sensor is a robust and reliable solution for oxygen detection, serving as a high-quality alternative to Alphasense. Designed for safety-critical applications such as mining, medical oxygen systems, and air quality monitoring, it features high sensitivity, wide linearity, and strong anti-interference capabilities. With a detection range of 0-25% VOL and a resolution of 0.1% VOL, the SafeO2 ensures precise measurements even in challenging conditions. KACISE’s expertise in electrochemical sensing technology guarantees long service life, low power consumption, and consistent performance, making it a trusted choice for oxygen monitoring.

2. Application Fields

1.Oxygen alarms in the mining field

2.Medical oxygen generators

3.Air quality detection instruments

4.Air purification equipment in underground parking lots and commercial areas

5.Air quality detection in vehicles, as well as the fresh air systems of in-vehicle purification equipment

3. Product Features

1. High precision and long service life

2. Fast response speed and quick return to zero

3. Low power consumption and high sensitivity

4. Wide linear range

5. Strong anti-interference ability

6. Excellent repeatability and stability

4. Technical Parameters

Project Parameter
Model KQT-O₂
Detection Principle Electrochemical two-electrode
Detected Gas O₂
Detection Range 0 - 25%VOL
Maximum Load Concentration 30%VOL
Output Signal 100±20 μA in air
Zero-point Drift 0.6%VOL
Resolution 0.1%VOL
Response Time T90 < 20s
Bias Voltage 0
Load Resistance 100Ω
Temperature Range -30℃ - 50℃
Humidity Range 15% RH to 90% RH (no condensation)
Repeatability < ±2% output signal
Long-term Stability < 2% signal / month
Linearity Linear, regression coefficient R² = 0.999
Working Pressure 90 to 110 kPa
Shelf Life 12 months after delivery
Service Life 2 years
