High Sensitivity 80±20nA/PPM EcoMonox Electrochemical CO Detector

High Sensitivity 80±20nA/PPM EcoMonox Electrochemical CO Detector

EcoMonox CO Detector

High Sensitivity CO Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KQT-CO

Contact Us
Request A Quote
Product Details
Detection Range:
0 - 1000PPM
Maximum Load Concentration:
2000PPM
Sensitivity:
80±20nA/PPM
Working Pressure:
90 To 110 KPa
Detection Principle:
Electrochemical Three-electrode
Detected Gas:
CO
Highlight:

EcoMonox CO Detector

,

High Sensitivity CO Detector

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

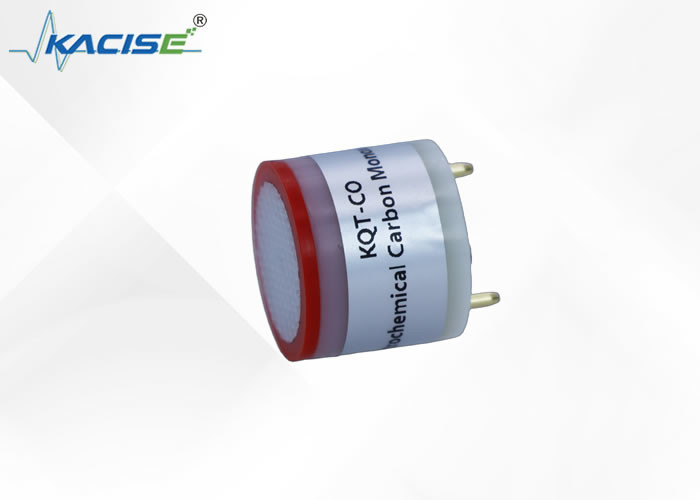

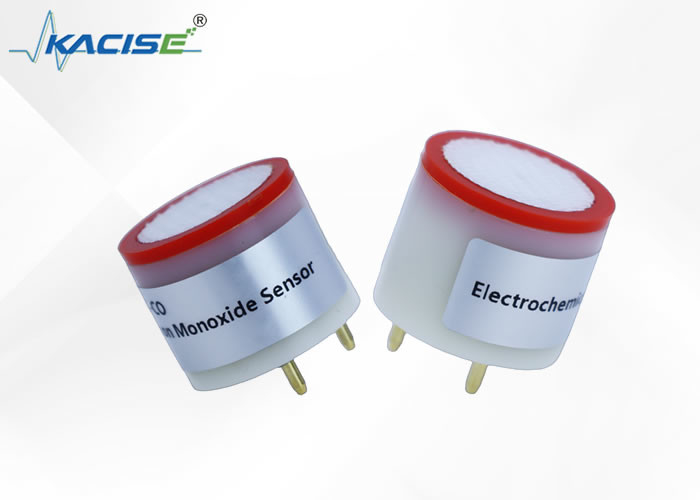

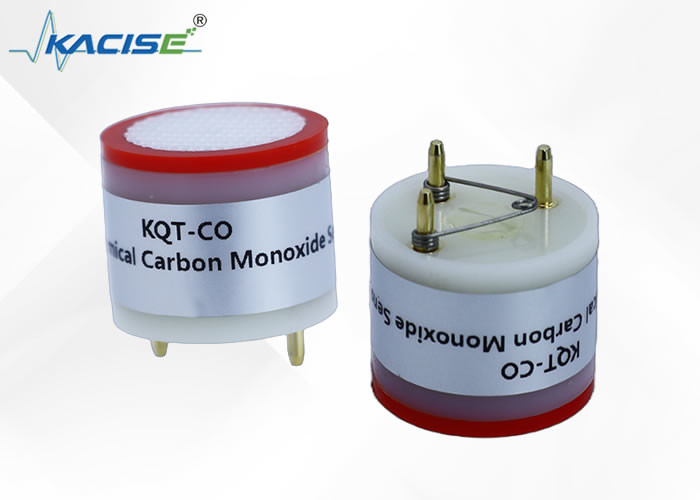

EcoMonox Electrochemical CO Detector

1.Overview

KACISE’s EcoMonox Electrochemical CO Detector is an eco-friendly, high-precision sensor designed for carbon monoxide detection in environmental and industrial settings. Featuring a robust three-electrode electrochemical system, it offers excellent repeatability, long-term stability, and a wide detection range of 0-1000ppm. The EcoMonox is perfect for applications such as air quality monitoring, vehicle exhaust systems, and fire safety equipment. Its low power consumption and fast response time make it a sustainable and efficient choice for modern gas detection needs. With KACISE’s commitment to innovation, the EcoMonox ensures reliable performance while contributing to a greener future.

2. Application Fields

1.Carbon monoxide alarm

2.Fire alarm for carbon monoxide gas produced by the insufficient combustion of gas water heaters

3.Range hood

4.Air quality detection instrument

5.Air purification equipment for vehicle exhaust emissions in underground parking lots, homes and commercial areas

6.Air quality detection in vehicles, as well as the fresh air systems of in-vehicle purification equipment

3. Product Features

1.High precision and long service life

2.Fast response speed and quick return to zero

3.Low power consumption and high sensitivity

4.Wide linear range and strong anti-interference ability

5.Excellent repeatability and stability

4. Technical Parameters

Project Parameter
Model KQT-CO
Detection Principle Electrochemical three-electrode
Detected Gas CO
Detection Range 0 - 1000PPM
Maximum Load Concentration 2000PPM
Sensitivity 80±20nA/PPM
Zero-point Drift ±2PPM
Resolution 1PPM
Response Time T90< 25s
Bias Voltage 0
Load Resistance 5 - 30Ω
Temperature Range -30℃ - 50℃
Humidity Range 15% RH to 90% RH (no condensation)
Repeatability 1% output signal
Long-term Stability < 2% signal / month
Linearity Linear, regression coefficient R² = 0.999
Working Pressure 90 to 110 kPa
Shelf Life 12 months after delivery
Service Life 2 years
