Name: KGD WQ 522 Vibration Type Engine Tachometer Communication Inductive Pulse Electrical Parameter Simulated Ignition Signal
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-522
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KGD WQ 522 Vibration Type Engine Tachometer Communication Inductive Pulse Electrical Parameter Simulated Ignition Signal

inductive pulse Engine Tachometer

Communication Engine Tachometer

Electrical Parameter Engine Tachometer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-522

Request A Quote

Product Details

Measuring Range:

Gasoline Engine: 400 - 8000 Rpm; Diesel Engine: 400 - 6000 Rpm

Operating Temperature:

5 °C - 45 °C

Humidity:

30% - 90%RH

Electrical Parameter - Communication:

RS - 232, TTL Signal Pulse Output, Inductive Pulse - Simulated Ignition Signal

Electrical Parameter - Power Supply:

12VDC, 350mA

Display:

LCD Display

Highlight:

inductive pulse Engine Tachometer

Communication Engine Tachometer

Electrical Parameter Engine Tachometer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

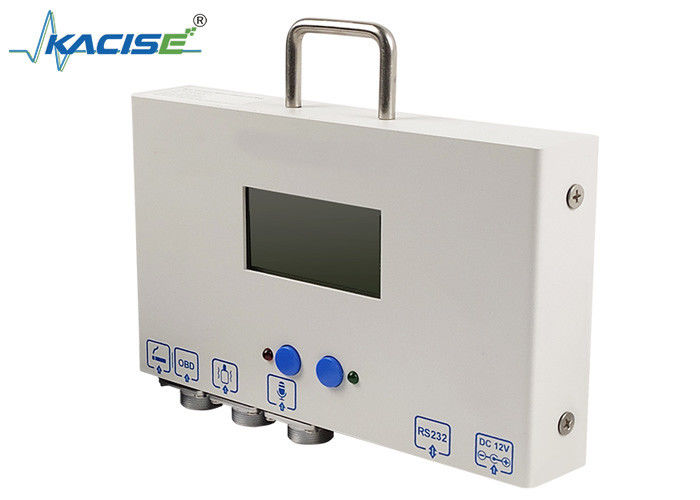

KGD WQ 522 Vibration Type Engine Tachometer

Communication Inductive Pulse Electrical Parameter Simulated Ignition Signal

Product Introduction

The KGD-WQ-522 is a portable vehicle tachometer that calculates engine speed by measuring and analyzing vibration and cigarette-lighter spectrum signals. It outputs results to instruments such as exhaust gas analyzers or smoke meters, complying with JJF 1375 "Calibration Specification for Motor Vehicle Engine Tachometers."

Key Features

Advanced hardware design integrated with software analysis technology
Capable of measuring speeds of various gasoline and diesel engines
Automatic calibration with high measurement accuracy and reliable performance
Easy to install, carry, and operate
Can be integrated with vehicle emission analyzers or smoke meters

Technical Specifications

Measurement Index	4-stroke gasoline and diesel engine speed
Measuring Range	Gasoline engine: 400 - 8000 rpm Diesel engine: 400 - 6000 rpm
Operating Temperature	5 °C - 45 °C
Humidity	30% - 90%RH
Electrical Parameter - Communication	RS-232, TTL signal pulse output, inductive pulse - simulated ignition signal
Electrical Parameter - Power Supply	12VDC, 350mA
Display	LCD display
