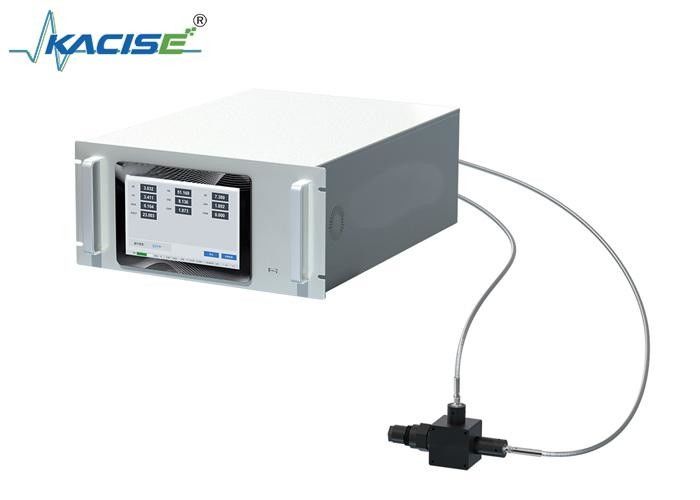

Name: Fast Response Laser Raman Spectroscopy Gas Analyzer KGD WQ 523 with Input Voltage 50 60Hz standard
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-WQ-523
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Fast Response Laser Raman Spectroscopy Gas Analyzer KGD WQ 523 with Input Voltage 50 60Hz standard

Laser Raman Spectroscopy Gas Analyzer

Fast Response Spectroscopy Gas Analyzer

KGD WQ 523 Spectroscopy Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-WQ-523

Request A Quote

Product Details

Measured Components:

H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₃H₆, Etc.

Communication Interface:

RS - 232/RS - 485 Serial Port, TCP/IP Network Port, USB Interface

Measurement Precision:

≤ ± 1%F.S.

Repeatability:

≤ 1%F.S.

Response Time:

≤ 30s

Input Voltage:

100 - 240VAC, 50 - 60Hz (standard)

Highlight:

Laser Raman Spectroscopy Gas Analyzer

Fast Response Spectroscopy Gas Analyzer

KGD WQ 523 Spectroscopy Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KGD - WQ - 517 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System For Diesel Vehicle Gas Detection

Get Best Price

KGD - WQ - 518 Non - Road Machinery / Diesel Vehicle Exhaust Smoke Detection System

Get Best Price

Non-Road Machinery / Diesel Vehicle Exhaust Smoke Detection System KGD-WQ-519 with Digital Output and Print Interface

Get Best Price

Ultra-Precision Vehicle Exhaust Analyzer KGD-WQ-521 With CO₂ Measuring Range 16.01-18.0 ×10⁻²

Get Best Price

86--17719566736

Contact Now

Product Description

Fast Response Laser Raman Spectroscopy Gas Analyzer KGD WQ 523

Key Specifications

Attribute	Value
Measured Components	H₂, N₂, O₂, CO, CO₂, CH₄, C₂H₂, C₂H₄, C₃H₆, etc.
Communication Interface	RS-232/RS-485 serial port, TCP/IP network port, USB interface
Measurement Precision	≤ ±1%F.S.
Repeatability	≤1%F.S.
Response Time	≤30s
Input Voltage	100-240VAC, 50-60Hz (standard)

Product Overview

The KGD-WQ-523 Laser Raman Spectroscopy Gas Analyzer utilizes laser Raman scattering technology to enhance, collect, process, and identify characteristic Raman spectra of target gases. This enables continuous online real-time monitoring and quantitative analysis of multiple gas components simultaneously.

Key Features

Comprehensive Gas Analysis: Capable of real-time quantitative measurement of nearly all gases, including symmetric molecules like H₂, O₂, and N₂
Rapid Response: Provides second-level response times for continuous in-situ testing with immediately usable results
Low Maintenance: Requires no carrier gas, chromatographic columns, or consumables. Only periodic optical surface cleaning and filter replacement needed
Advanced Technology: Superior alternative to traditional methods like gas chromatography (GC) and mass spectrometry (MS)

Technical Parameters

Parameter	Specification
Measuring Range	0-100% gas concentration (adjustable based on application)
Measurement Precision	≤ ±1%F.S.
Repeatability	≤1%F.S.
Response Time	≤30s
Input Voltage	100-240VAC, 50-60Hz (standard)
User Interface	Color touchscreen
Probe Quantity	1
Fiber Optic Probe Temperature	0-200°C
Fiber Optic Probe Pressure	80-4000kPa, gas phase
Operating Temperature	10-35°C
Working Humidity	95%RH, non-condensing
