KGD - WQ - 526 Vehicle Exhaust Flow Analyzer

KGD - WQ - 526 Vehicle Exhaust Flow Analyzer

Vehicle Exhaust Flow Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KGD-WQ-526

Contact Us
Request A Quote
KGD - WQ - 526 Vehicle Exhaust Flow Analyzer
Product Details
Flow Rate:
(4 - 12) M³/min
O₂:
(0.3 - 25)×10⁻²
Temperature:
-30°C - 150°C
Pressure:
70.0kPa - 110.0kPa
Pre - Heating Time:
< 3 Min
Relative Humidity:
0 - 95%
Highlight:

Vehicle Exhaust Flow Analyzer

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

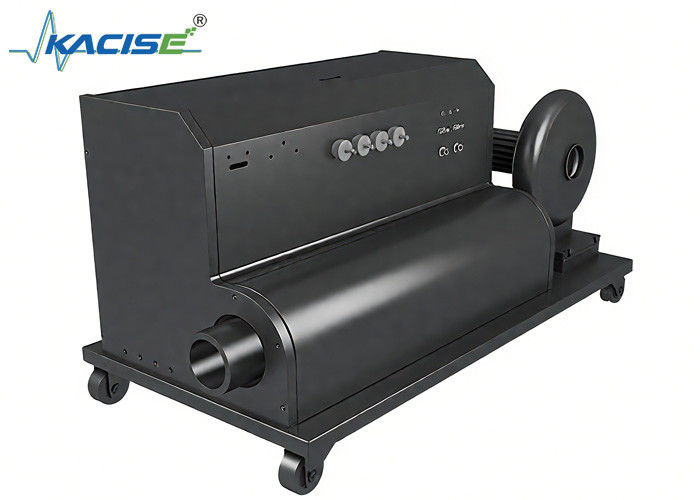

KGD - WQ - 526 Vehicle Exhaust Flow Analyzer

Product Introduction

The KGD - WQ - 526 Vehicle Exhaust Flow Analyzer uses the ultrasonic and vortex street principles to measure the flow rate of diluted motor vehicle exhaust, and employs a zirconia sensor to measure the concentration of the diluted gas. It is one of the core components of the VMAS system. It is used to measure the flow rate, pressure, temperature, and diluted oxygen concentration of the exhaust gas emitted by gasoline engines of motor vehicles. It complies with the requirements of the national standard GB 18285 - 2018 "Limits and Measurement Methods for Emissions from Gasoline - fueled Vehicles (Double - Idle Speed Method and Simple Driving Cycle Method.

KGD - WQ - 526 Vehicle Exhaust Flow Analyzer 0

Product Features

  • Good measurement stability and high measurement accuracy.
  • Fully meets the measurement technical requirements of VMAS flowmeters.
  • Excellent seismic performance, long service life, and is not affected by vibrations on measurement accuracy.

Technical Parameters

Gas Type Measuring Range Resolution Absolute Error Relative Error
Flow Rate (4 - 12) m³/min 0.01 m³/min -- ± 4% (F·S)
O₂ (0.3 - 25)×10⁻² 0.1×10⁻² ± 0.1×10⁻² ± 5%
Temperature -30°C - 150°C 0.1 °C ± 1 °C --
Pressure 70.0kPa - 110.0kPa 0.1 kPa ± 0.5 kPa ± 3%
Zero - point/Range Drift O₂: ± 2.5%F.S.
Flow Rate: ± 2%F.S.
Response Time Flow Rate: ± 2%F.S., O₂: Relative Standard Deviation Not More Than 1.5%
O₂: < 5s
Pre - heating Time < 3 min
Relative Humidity 0 - 95%
Working Power Supply AC220V±10%, 50 Hz±1Hz
