Name: Distance Sensor Short Range 5m Laser Measuring Device
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLS210
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

Distance Sensor Short Range 5m Laser Measuring Device

5m Laser Measuring Device

Short Range Laser Measuring Device

Distance Sensor Laser Measuring Device

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KLS210

Request A Quote

Distance Sensor Short Range 5m Laser Measuring Device

Product Details

Measuring Range:

0.03~5m

Measuring Accuracy:

±1mm

Laser Grade:

Class 1

Laser Type:

620~690nm,<0.4mW

Working Voltage:

6~32V

Measuring Time:

0.4~4s

Highlight:

5m Laser Measuring Device

Short Range Laser Measuring Device

Distance Sensor Laser Measuring Device

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

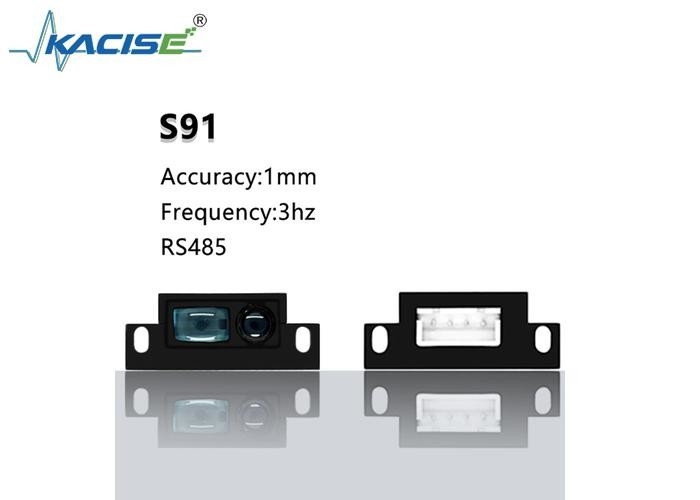

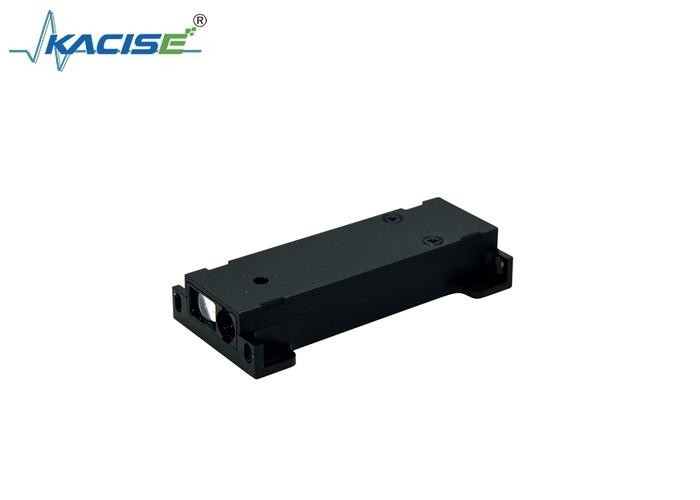

Distance Sensor Short Range 5m Laser Measuring Device

Introduction

5m short range distance sensor is a phase-type laser measuring device, with measuring range of 5m, high precision of 1mm, and small size of 63*30*12mm. The characteristics of the sensor are high measurement accuracy, fast measurement speed and abundant output interfaces. It can be integrated into industrial measurement projects that require short range and high precision.

fields of laser range sensor:

1. Bridge static deflection monitoring system

2. Tunnel overall deformation monitoring system, tunnel key point deformation monitoring system

3. Liquid level, material level, material level monitoring system

4. Balance Monitoring System

5. Positioning and alarm system in transportation, hoisting and other industries

6. Thickness and dimension monitoring system

7. Mine elevator, large hydraulic piston height monitoring, positioning monitoring system

8. Monitoring system for dry beach, tailings, etc.

Technical Parameters

Model	KLS210
Measuring Range	0.03~5m
Measuring Accuracy	±1mm
Laser Grade	Class 1
Laser Type	620~690nm,<0.4mW
Working Voltage	6~32V
Measuring Time	0.4~4s
Frequency	3Hz

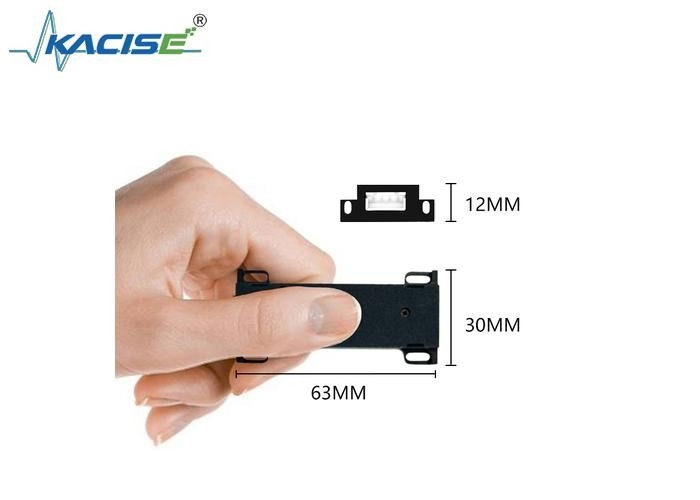

Size	633012mm
Weight	20.5g
Communication Mode	Serial Communication, UART
Interface	RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Temperature	0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized)
Storage Temperature	-25℃-~60℃
