Name: Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSBH-90A
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S

Single Gas Detector

DC3.7V Li Battery Gas Detector

1500mAh Li Battery Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSBH-90A

Request A Quote

Product Details

Accuracy :

≦ 5% F.S.

Response Time:

T＜30s

Humidity:

＜95%RH Non-condensing

Operating voltage:

DC3.7V Li Battery 1500mAh

Working Time:

≧8h Continuously

Charging Time:

4h～6h

Highlight:

Single Gas Detector

DC3.7V Li Battery Gas Detector

1500mAh Li Battery Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

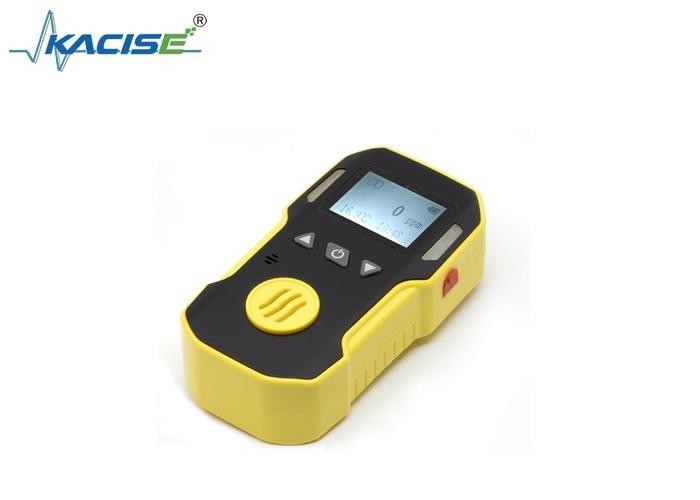

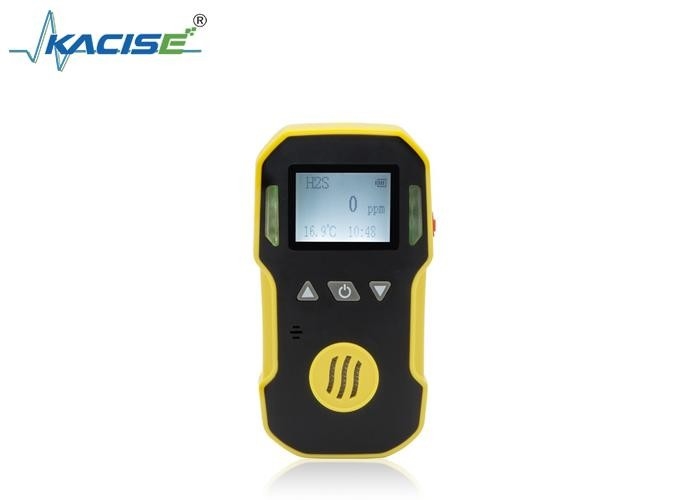

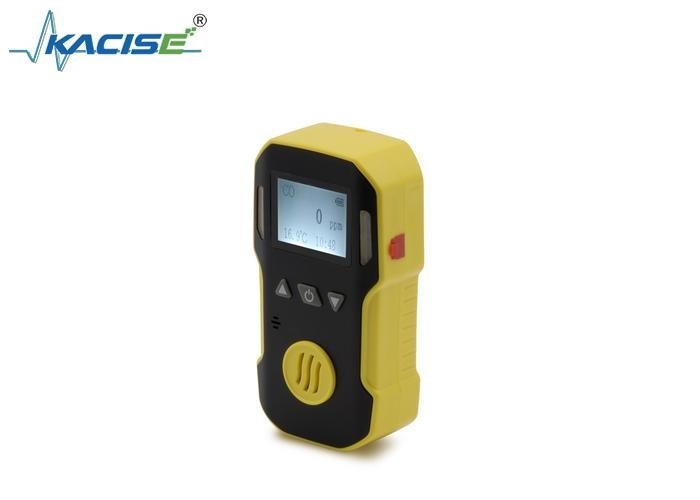

KSBH-90A Single Gas Detector
Introduction
KSBH-90A portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate.

Technical Parameters

Accuracy	≦ 5% F.S.
Response time	T＜30s
Indication	LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration
Operating Environment	Operating temperature -40℃～70℃ (for combustible gas)
Operating Environment	Operating temperature: -20℃～50℃ (for toxic gas)
Humidity	＜95%RH non-condensing
Operating voltage	DC3.7V Li battery 1500mAh
Working time	≧8h continuously
Charging time	4h～6h
Sensor life	2 years
Weight	about 130g (including battery but without accessories)
Explosion proof	Ex ib llB T3 Gb
Dimension	100mm×60mm×30mm

Product Features
*Advanced MCU control with low power consumption;
*Adjustable low and high alarm level;
*Adjustable calibrating level;
*High concentration protection for combustible gas;
*Self test for the combustible gas sensor;
*Low battery indication;
*Self-adjustment function
*Visual and audible alarm with vibration;
*Advanced self-examination and self-renovation function
*Password management to avoid wrong operation;
*Explosive proof housing.

Application
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S 0

Specifications

Model	Range	Resolution	L-alarm	H-alarm

O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol

H2S	0-100ppm	0.1ppm	10ppm	20ppm

C2H4O	0-100ppm	1ppm	10ppm	20ppm

HC	0-2%vol	0.01%vol	0	0

NH3	0-100ppm	1ppm	10ppm	20ppm

O3	0-20ppm	0.1ppm	5ppm	10ppm

PH3	0-20ppm	0.1ppm	5ppm	10ppm

NO	0-250ppm	1ppm	50ppm	150ppm

HCN	0-50ppm	0.1ppm	5ppm	10ppm

HF	0-10ppm	0.1ppm	3ppm	5ppm
