KSK-600 Single Gas Detector Built-In Pump Sampling For 0-20ppm Ozone Detector

KSK-600 Single Gas Detector Built-In Pump Sampling For 0-20ppm Ozone Detector

Built-In Pump Sampling Gas Detector

Single Gas Detector

0-20ppm Ozone Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KSK-600

Contact Us
Request A Quote
Product Details
Accuracy:
≦±5% F.S.
Working Environment:
-20℃~50℃, <95%RH (no Dew)
Power Source:
DC3.7V Li-on Battery, 3200mAh
Charging Time:
6h~8h
Working Time:
≧8h Continuously (without Alarming)
Highlight:

Built-In Pump Sampling Gas Detector

,

Single Gas Detector

,

0-20ppm Ozone Detector

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

KSK-600 Single Gas Detector|Built-In Pump Sampling for 0-20ppm Ozone Detector

Introduction

KSK-600 portable gas detector with built-in pump is a new intelligent gas detector, which adopts an advanced integrated circuit, with standard intelligent level design technology, and proprietary digital analog hybrid communication technology. The detector is of excellent sensitivity and repeatability, which makes it very easy to use and maintain. Thus greatly meets the safety requirements of industrial sites with high reliability. The detector is made of high-strength engineering plastics, compound non-slip rubber, which is of high strength and good hand feeling. what's more, the detector is water-proof, dust-proof and explosion-proof. It is widely used in petroleum, chemical, environmental, metallurgy, refining, gas transmission and distribution, biochemical medicine, agricultural and other industries

Technical Parameters
Gas sampling method Gas pump sampling
Accuracy ≦±5% F.S.
Response Time ≦30s
Indication LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state.
Working environment -20℃~50℃, <95%RH (no dew)
Power Source DC3.7V Li-on battery, 3200mAh
Charging time 6h~8h
Working time ≧8h continuously (without alarming)
Gas Sensor Life 2 years
Explosion-proof grade Ex ib IIC T4 Gb
Weight Appr. 400g (with battery)
Product Features

* Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.

* 32-bit built-in MCU, high reliability and self-adaptation ability.

* Full functions, easy operation.

* CSTN colorful LCD, more intuitionistic, abundant and clear indication.

* Compact design, easy carrying.

* High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

*1200pcs data records, can be contacted with computer via software. Can print the data records, can store data records, can make the data analysis.

*Gas curve display.

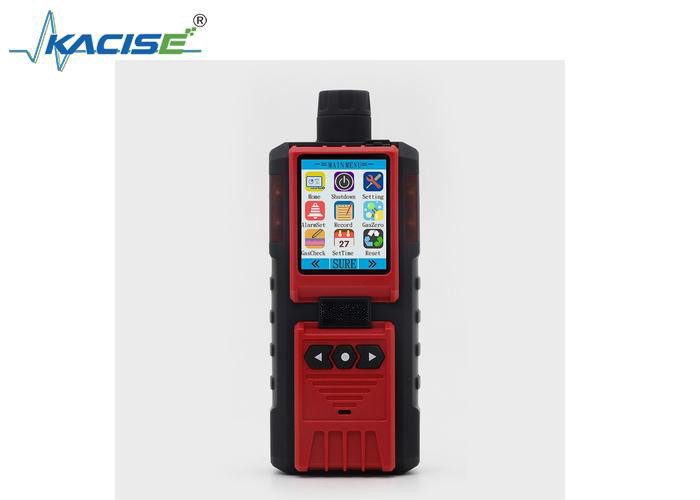

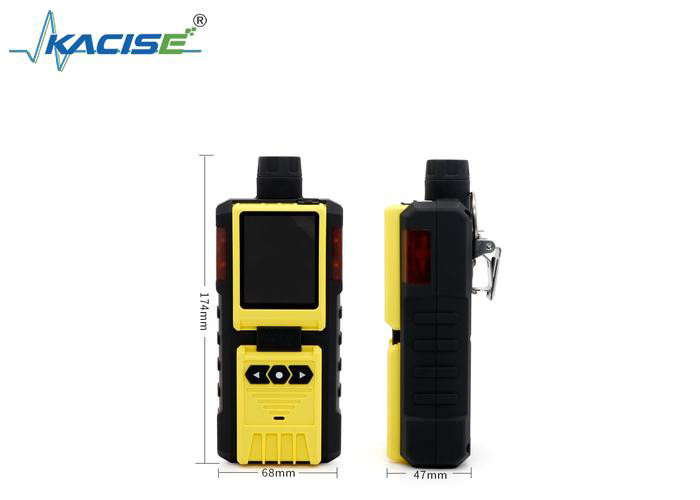

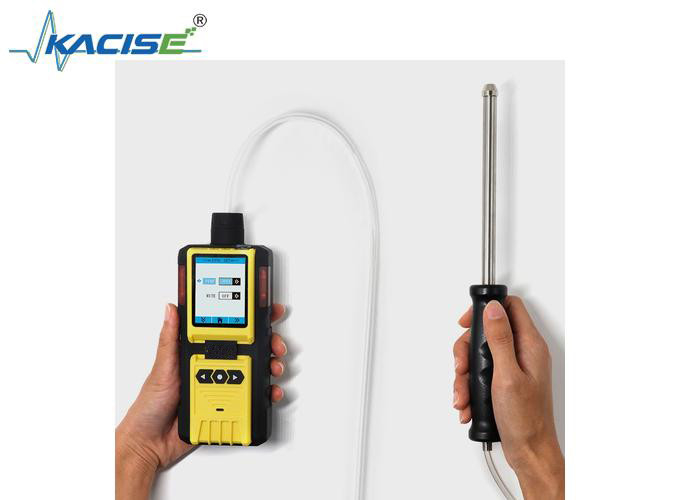

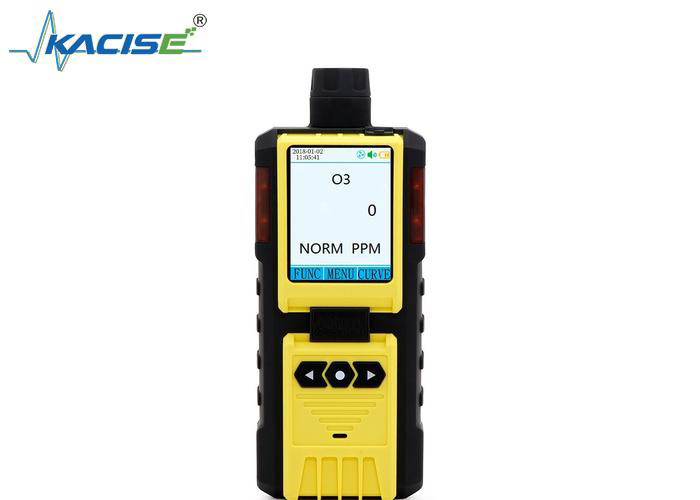

Detailed Images

KSK-600 Single Gas Detector Built-In Pump Sampling For 0-20ppm Ozone Detector 0

Specifications
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol.
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
