Name: CO EX H2S CO2 O2 CH4 03 SO2 HCL KFGT-K90 Fixed Gas Detector IP66 36-106Kpa Connection Port M27*1.5mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFGT-K90
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

CO EX H2S CO2 O2 CH4 03 SO2 HCL KFGT-K90 Fixed Gas Detector IP66 36-106Kpa Connection Port M27*1.5mm

CO2 Fixed Gas Detector

IP66 Fixed Gas Detector

H2S Fixed Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFGT-K90

Request A Quote

Product Details

Working Environment:

-40℃～70℃ ＜93%RH (no Dew)

Protection Class :

IP66

Connection Port:

M27*1.5mm

Zero Drift:

≦±2% F.S.

Response Time:

≦30s

Working Pressure:

36~106Kpa

Highlight:

CO2 Fixed Gas Detector

IP66 Fixed Gas Detector

H2S Fixed Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

KFGT-K90 Fixed Gas Detector (IP66)
Introduction
KFGT-K90 Fixed Gas Detector (IP66)nn KFGT-K90 fixed gas detector supports customization of more than 300 kinds of gases such as CO, EX, H2S, CO2, O2, CH4, 03, SO2, HCL, etc. , and customization of different ranges. This gas detector is a smart products with various communicate methods and display in real time. This product uses 2.4 inches inch industrialgrade OLED screen with high stability, high accuracy and high intelligence real time monitoring and alarming can be carried out through simple settings. nnWe provide gas detector OEM/ODM service.

Product Features

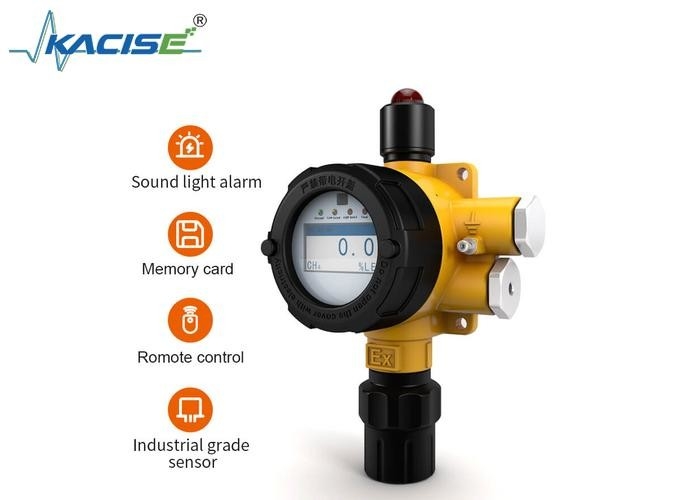

* Integrated sound and light alarm indication
* SD memory card plus FLASH, data storage and export are more convenient
* Full-scale temperature compensation, over-range protection
* Equipped with infrared remote control, the remote control distance is up to 8 meters
* Replace the sensor, no need calibration
* Independent RTC dock
* IP66 protection grade

Technical Parameters

Protection class	IP66
Connection port	M27*1.5mm
Zero drift	≦±2% F.S.
Response Time	≦30s
Working pressure	36~106Kpa
Working environment	-40℃～70℃ ＜93%RH (no dew)
Resolution	0.1%LEL
Display error	±3%LEL
Detection principle	catalytic combustion
Gas Sensor Life	2 years
Explosion-proof grade	Ex db IIC T6 Gb
Cable	3x1.5mm2, 4x1.5mm'shielded cable
Weight	2.1KG
Dimensions	261913.5cm

Detailed Images

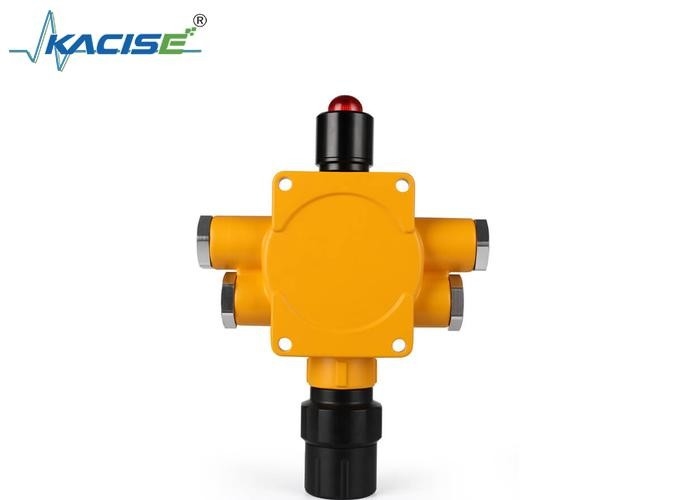

CO EX H2S CO2 O2 CH4 03 SO2 HCL KFGT-K90 Fixed Gas Detector IP66 36-106Kpa Connection Port M27*1.5mm 0

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
