Name: Kfbh-60 Fixed Gas Detector The Ultimate Tool for Refinery Gas Detection
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFBH-60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Kfbh-60 Fixed Gas Detector The Ultimate Tool for Refinery Gas Detection

0.1ppm Fixed Gas Detector

Refinery Gas Detector

Fixed Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFBH-60

Request A Quote

Product Details

Resolution:

1%LEL, 0.1ppm, 1ppm, 0.01%vol

Precision:

＜5% F.S.

Response Time:

≦30S

Recovery Time:

≦10S

Repeatability:

≦±1%

Working Temperature:

-20℃-55℃

Highlight:

0.1ppm Fixed Gas Detector

Refinery Gas Detector

Fixed Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

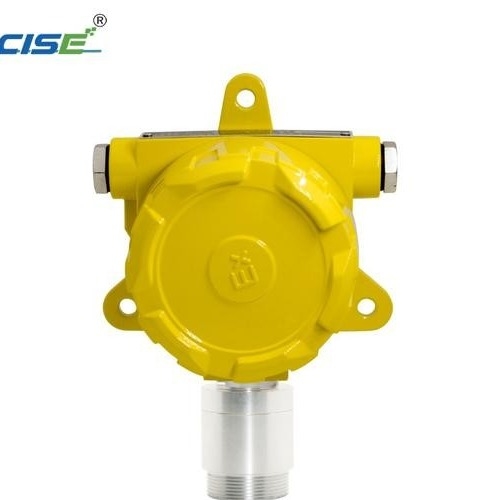

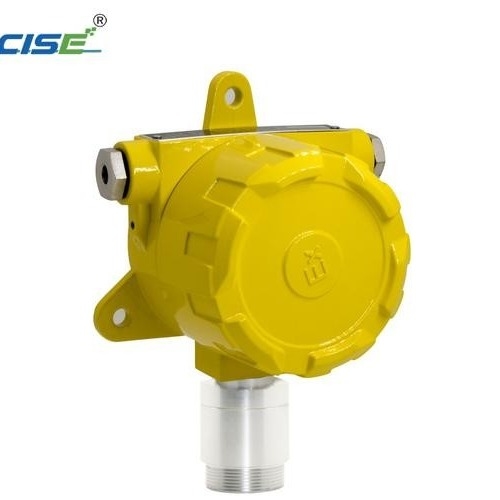

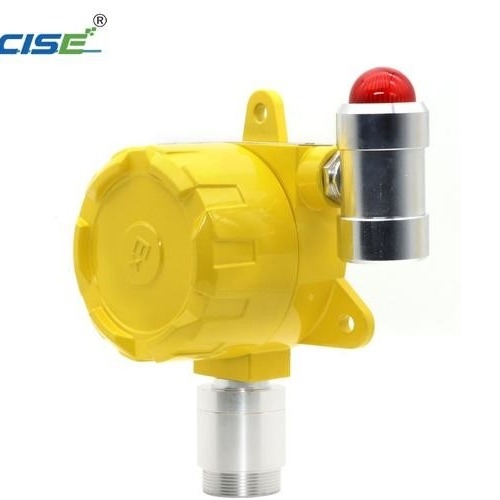

KFBH-60 Fixed Gas Detector

Introduction

KFBH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists. We provide gas detector OEM/ODM service.

Technical Parameters

Gas Detected	Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF
Detection principle	catalytic or electrochemical or PID's or infrared principles
Sampling Method	wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution	1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision	＜5% F.S.
Output signal	4-20mA ,0-5V, RS485, relays, wireless digital (optional)
Response Time	≦30S
Recovery Time	≦10S
Repeatability	≦±1%
Linearity error	≦±1%
Zero shift	≦±1% (FS / year)
Display Technology	Display high brightness LED display
Connection mode	G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm
Working temperature	-20℃-55℃
Explosion-Proof	Ex db IIC T6 Gb
Working voltage	DC 24V
Dimensions	190×150×95mm
Cable requirement	4-20mA, RVVP, 3-line, ≧1.5 mm2
Cable requirement	Modbus, RVVP, 4-line, ≧1.5 mm2

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
