Name: KFK-G60 Fixed Gas Detector IP 66 Protection Ex db lIC T6 Gb/Ex tb IIIC T80C Db with High Explosion Proof Grade
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFK-G60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KFK-G60 Fixed Gas Detector IP 66 Protection Ex db lIC T6 Gb/Ex tb IIIC T80C Db with High Explosion Proof Grade

IP 66 Protection Gas Detector

High Explosion Proof Grade Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFK-G60

Request A Quote

Product Details

Explosion Proof Grade:

Ex Db LIC T6 Gb/Ex Tb IIIC T80C Db

Protection Category:

IP 66

Response Time:

<30S

Power Supply:

DC24V±15%

Working Temperature:

-20℃~50℃

Output Current:

4-20mA

Highlight:

IP 66 Protection Gas Detector

High Explosion Proof Grade Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

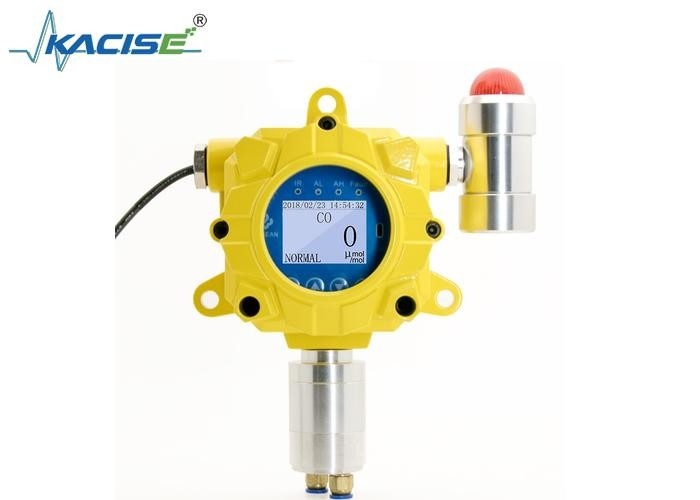

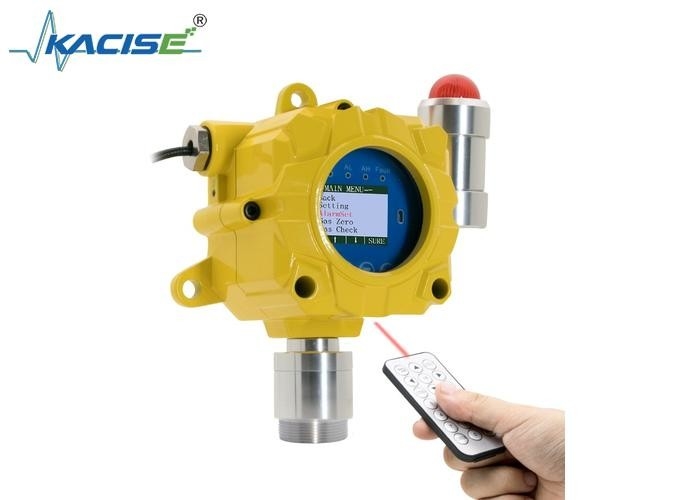

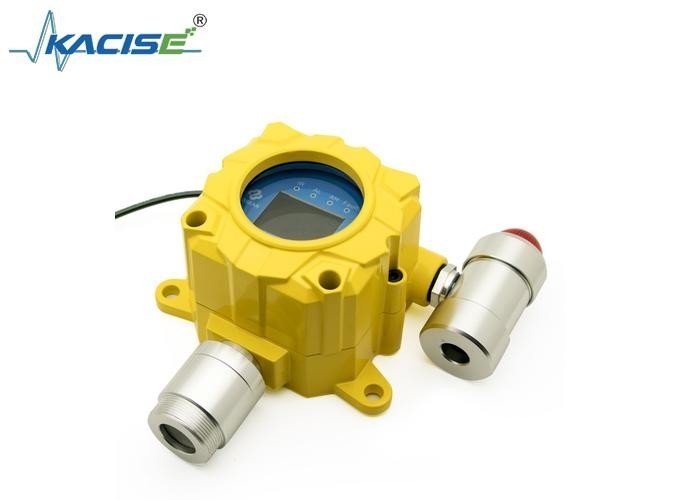

KFK-G60 Fixed Gas Detector

Introduction

KFK-G60 fixed gas detector is a new type of gas detector developed and produced by the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value. At the same time, the controller will give an audible and visual alarm, and promptly take measures to prevent the explosion and poisoning accidents, thus ensuring the safety of life and property.

Technical Parameters

Product Name	K-G60 Remote Control Fixed Gas Detector
Explosion proof grade	Ex db lIC T6 Gb/Ex tb IIIC T80C Db
Protection category	IP 66
Response time	<30S
Power supply	DC24V±15%
Working temperature	-20℃~50℃
Output current	4-20mA
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	19015095mm(LWH)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
