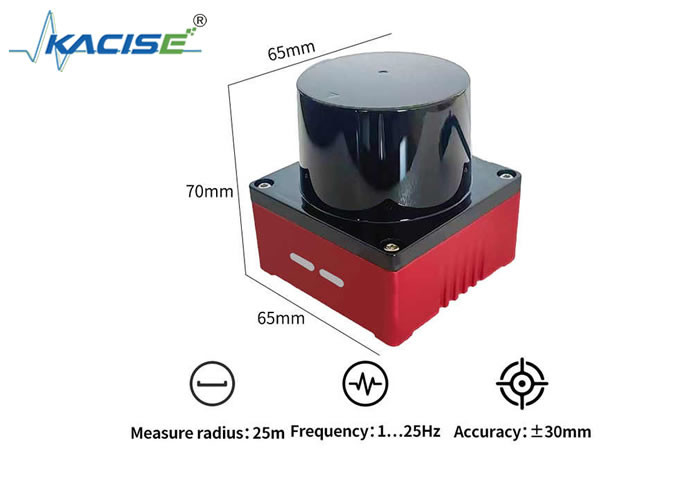

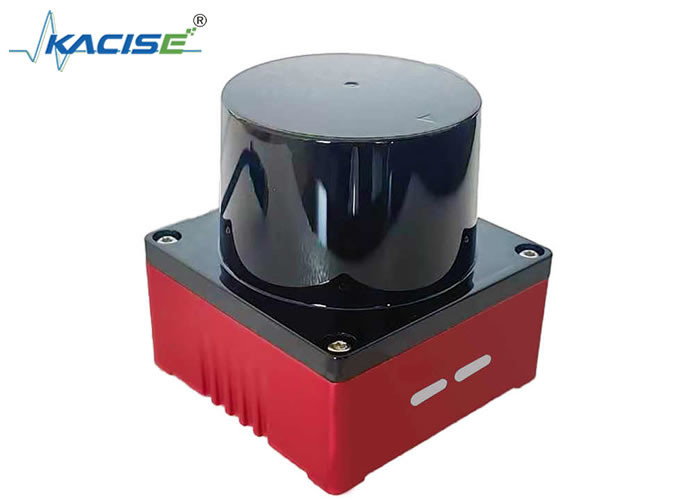

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Request A Quote

KL2A-25 LiDAR for robot navigation and obstacle avoidance, Absolute accuracy ±30mm

Product Details

Measuring Rate:

1...25Hz

Description:

2D 360 ° Laser Scanning Radar

Type:

Distance Sensor

Absolute Accuracy:

±30mm

Measurement:

0.1...25m

Power Dissipation:

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

KL2A - 25 Industrial Automation High - Precision Laser Distance Sensor

Overview

The KL2A - 25 Industrial Automation High - Precision Laser Distance Sensor, crafted by KACISE, is a boon for industrial automation. Employing DTOF technology, it can measure distances up to 100m with millimeter - level precision. Operating at frequencies from 3 to 20Hz, it offers flexibility. The built - in digital display allows for easy result reading. Supporting PLC programming and networking, it seamlessly integrates with industrial control systems. With RS485 Modbus - RTU protocol and 4 - 20mA analog output, it ensures stable data transfer. Easy to install, it’s an ideal choice for industrial distance measurement tasks.

Product Features

1. Long - range and high - precision measurement, meeting industrial requirements.

2. Supports PLC programming, facilitating automation integration.

3. Stable data transfer with multiple output protocols.

Technical Parameters

Mounting Type	manual install
Description	2D 360 ° laser scanning radar
Model Number	KL2A-25
Type	Distance Sensor
Series	KL2A-25
Features	2D LiDAR
Manufacturing Date Code	202501
Brand Name	Siman
Theory	DTOF
Output	Network port, switch quantity
Description	KL2A-25
Measurement	0.1...25m
Duplicate accuracy	±20mm
Absolute accuracy	±30mm
Measuring rate	1...25Hz
Angular resolution	0.25°@10Hz;0.5°@15Hz;1°@25Hz
Point cloud density	14.4K@10Hz;10.8K@15Hz;9K@25Hz
Interface	Network port, switch quantity
Working voltage	DC12...30V
power dissipation	5W
