Name: KMBH - 4A Construction Site Gas Detector
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMBH-4A
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KMBH - 4A Construction Site Gas Detector

4A Construction Site Gas Detector

KMBH - 4A Gas Detector

KMBH Construction Site Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KMBH-4A

Request A Quote

Product Details

Response Time:

≦30s

Accuracy:

≦±5% F.S.

Working Environment:

DC3.7V Li-on Battery, 1800mAh

Sensor:

-20℃～50℃, ＜95%RH (no Dew)

Alarm Type:

6h~8h

Power Source:

2 Years

Highlight:

4A Construction Site Gas Detector

KMBH - 4A Gas Detector

KMBH Construction Site Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

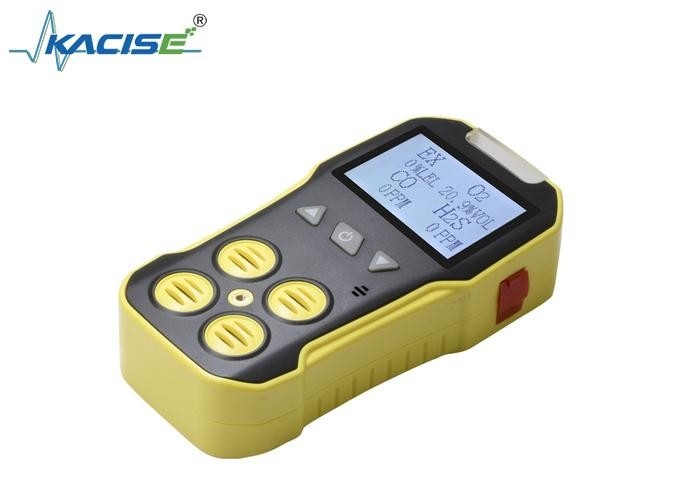

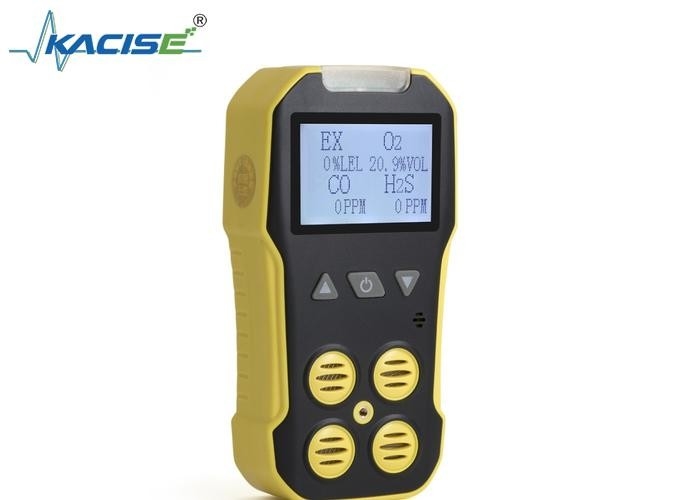

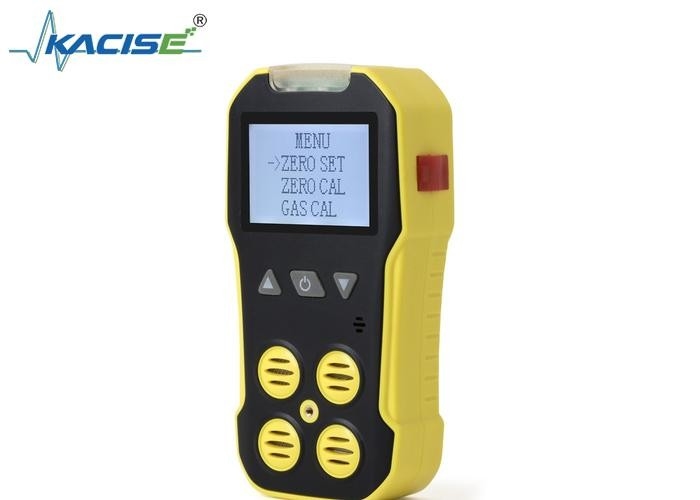

KMBH - 4A Construction Site Gas Detector

Introduction

The KMBH - 4A Construction Site Gas Detector is essential for construction sites where gas hazards may occur. It continuously and simultaneously detects combustible gas, O₂, and two types of toxic gases. With a natural diffusion sampling method and high - sensitivity sensors, it offers accurate and repeatable measurements. The 32 - bit MCU provides high reliability and adaptability to the dynamic construction environment. The large LCD clearly shows real - time gas levels and system status. Its compact design and light weight make it convenient to carry around construction sites. Constructed with high - strength materials, it’s waterproof, dustproof, and explosion - proof, protecting construction workers from gas - related risks.

Product Features

1. Simultaneous multi - gas detection to enhance construction site safety.

2. Compact and portable design for easy on - site use.

3. Robust build to endure construction - site conditions.

Technical Parameters

Accuracy	≦±5% F.S.
Response Time	≦30s
Indication	LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage.
Sensor	-20℃～50℃, ＜95%RH (no dew)
Working environment	DC3.7V Li-on battery, 1800mAh
Alarm Type	6h~8h
Backlight	≧8h continuously (without alarming)
Power Source	2 years
Charging time	Appr. 400g (with battery)
Working time	130mm×67mm×30mm(L × W × H)
Gas Sensor Life	Suit case packaging, 1pc; Charger, 1pc; Calibration cap, 1pc; Communications cable, 1pc; User manual, 1pc.

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
