KLBH90E Chemical Engineering Gas Leak Detector Sensor and DC3.7V Battery

KLBH90E Chemical Engineering Gas Leak Detector Sensor and DC3.7V Battery

DC3.7V Gas Leak Detector Sensor

KLBH90E Gas Leak Detector Sensor

Chemical Engineering Gas Leak Detector Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLBH90E

Contact Us
Request A Quote
Product Details
Accuracy:
≦±5% F.S.
Response Time:
≦30s
Working Environment:
DC3.7V Li-on Battery, 1800mAh
Sensor:
-20℃~50℃, <95%RH (no Dew)
Backlight:
≧8h Continuously (without Alarming)
Alarm Type:
6h~8h
Highlight:

DC3.7V Gas Leak Detector Sensor

,

KLBH90E Gas Leak Detector Sensor

,

Chemical Engineering Gas Leak Detector Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

KLBH90E Chemical Engineering Gas Leak Detector

Introduction

The KLBH90E Chemical Engineering Gas Leak Detector is designed to meet the demands of the chemical engineering industry. Equipped with an imported high - quality semiconductor sensor and a 32 - bit MCU, it offers high sensitivity and adaptability. Operating within - 10℃ to 40℃, it can detect combustible gases in a range of 0 - 10,000ppm. The detector’s high - strength engineering plastics and anti - slip rubber construction make it durable. With a rechargeable 1800mAH lithium battery, it can work continuously for at least 8 hours, ensuring long - term monitoring in chemical engineering settings.

Product Features

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*Large LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

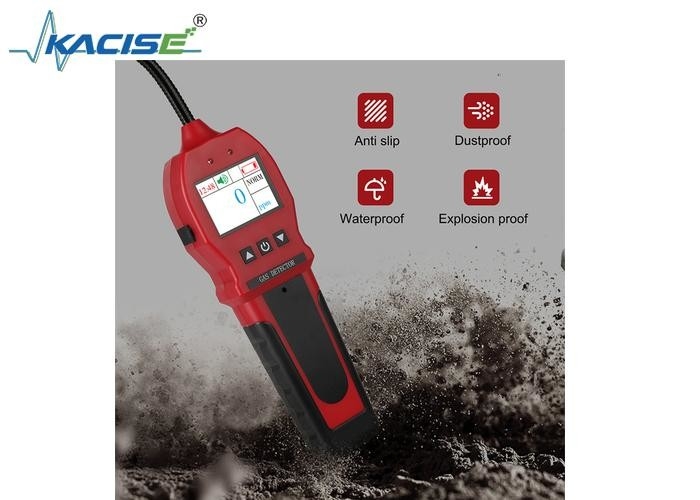

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

Technical Parameters

Target gas Combustible gas
Range 0-10,000ppm (μmol/mol)
Sampling method Natural diffusion
Alarm point Default: Low alarm: 500ppm; High alarm: 2000ppm.
Support personalized setting.
Alarm types Audible buzzer alarm; Visual LED light alarm; Vibration alarm
Warm-up time 60S
Response time <30s
Sensor type Imported FIGARO sensor
Sensor life 2 years
Power supply Rechargeable lithium battery, DC3.7V 1800mAH
Charging time 6h-8h
Continuous working hours No less than 8 hours (normal working environment)
Working condition Temperature: -10~40℃ Humidity: ≤95% RH with no condensation.
Storage condition Temperature: -20~50℃ Humidity: ≤85% RH, avoid caustic gases or substances.
Weight Approx. 300g (excluding accessories)
Dimension Approx. 210mm(L)×66mm(W)×30mm(H)

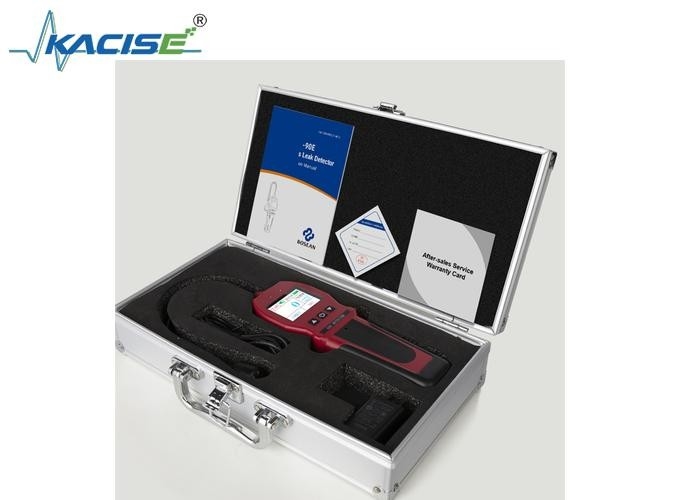

Packing list Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card.
