Name: KMCD4 Underground Mining Gas Sentinel with Plug-in Electrochemical Sensor IP66 Protection and Ex ib llC T4 Gb Explosion-Proof
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMCD4
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

KMCD4 Underground Mining Gas Sentinel with Plug-in Electrochemical Sensor IP66 Protection and Ex ib llC T4 Gb Explosion-Proof

KMCD4 Gas Sentinel

KMCD4 Underground Mining Gas Sentinel

Underground Mining Gas Sentinel

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KMCD4

Request A Quote

Product Details

Accuracy:

≦±5% F.S.

Response Time:

≦30s

Sensor:

Plug-in Electrochemical Sensor

Working Environment:

-20℃～50℃, ＜95%RH (no Dew)

Power Source:

DC3.7V Li-on Battery, 1800mAh

Charging Time:

6h~8h

Highlight:

KMCD4 Gas Sentinel

KMCD4 Underground Mining Gas Sentinel

Underground Mining Gas Sentinel

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

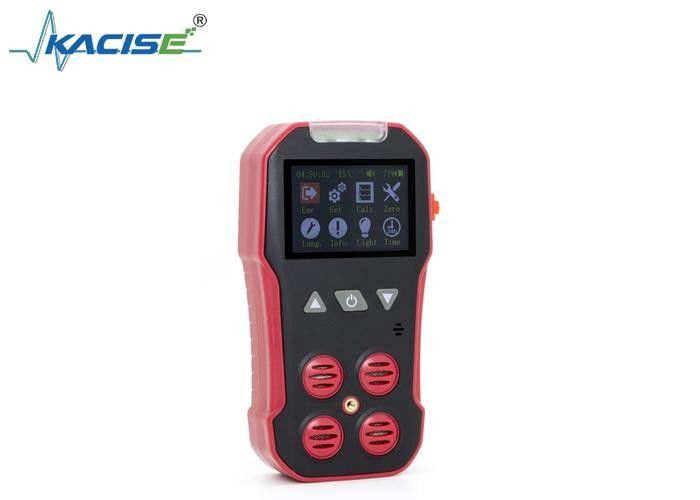

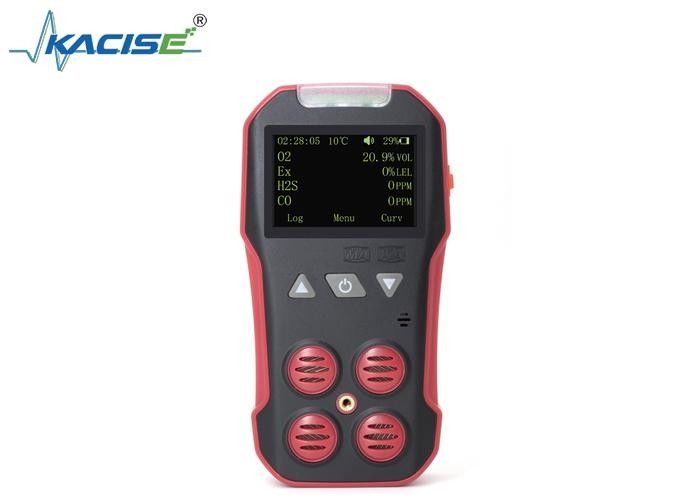

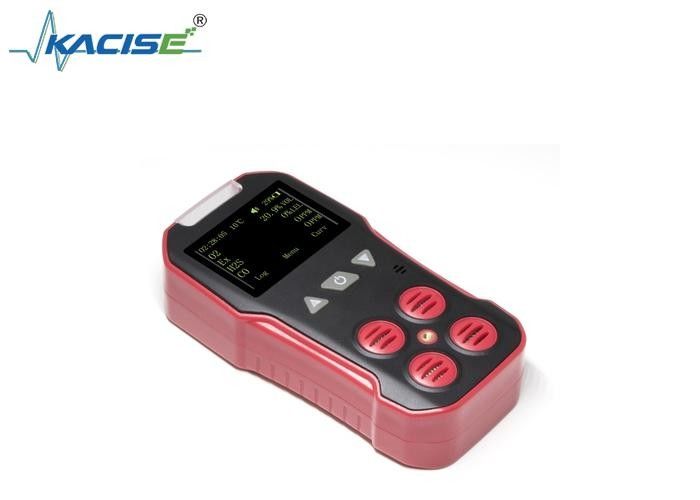

KMCD4 Underground Mining Gas Sentinel

Introduction

The Underground Mining Gas Sentinel: KMCD4 is an essential device for underground mining. It features a plug - in electrochemical sensor and a self - checking function for battery power, display, sensor, and hardware. With a protection grade of IP66 and an explosion - proof grade of Ex ib llC T4 Gb, it's suitable for harsh mining environments. It weighs about 400g and has compact dimensions, making it convenient for miners to carry.

Product Features

Plug - in electrochemical sensor for easy replacement.
Self - checking function for system integrity.
High protection and explosion - proof grades.
Compact size and light weight for portability.

Technical Parameters

Accuracy	≦±5% F.S.
Response Time	≦30s
Indication	LCD displays real-time and system status;LED, audio and vibration alert for gas leakage, fault and low voltage.
Sensor	plug-in electrochemical sensor
Alarm Type	low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Working environment	-20℃～50℃, ＜95%RH (no dew)
Power Source	DC3.7V Li-on battery, 1800mAh
Charging time	6h~8h
Working time	≧8h continuously (without alarming)
Resolution	0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
Self-checking Function	Self-checking Battery power, display, sensor, hardware failure
Gas Sensor Life	2 years
Explosion-proof grade	Ex ib llC T4 Gb
Protection Grade	IP66
Weight	Appr. 400g (with battery)
Dimensions	130mm×67mm×30mm(L × W × H)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	0	0
H2S	0-100ppm	1ppm	10ppm	35ppm
CH4	0-5%vol	0.01%vol	1vol	2.5vol
