Product Description

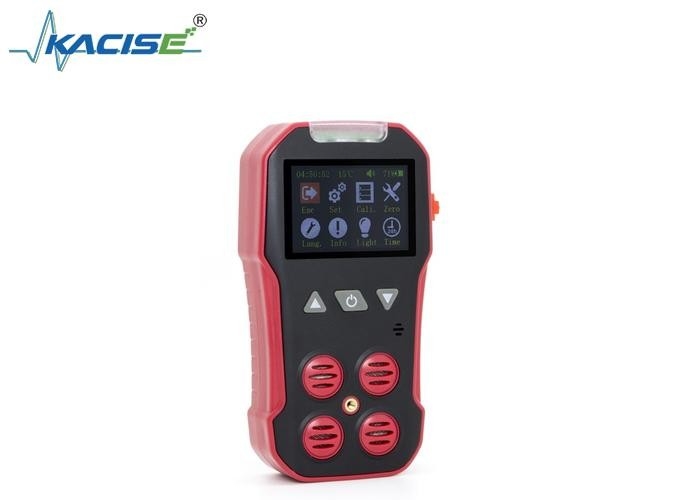

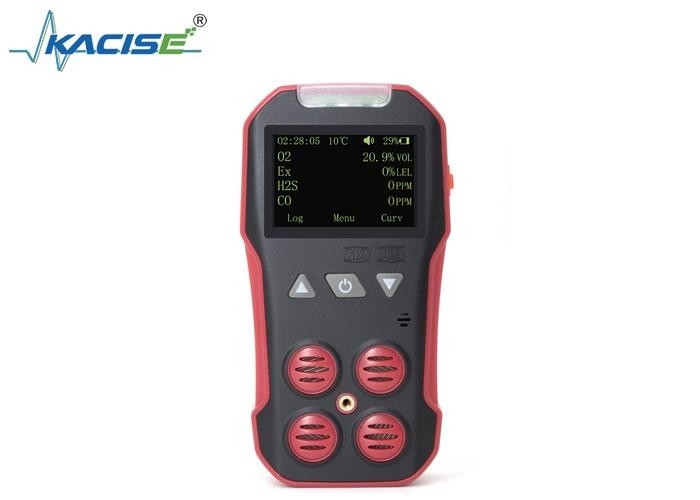

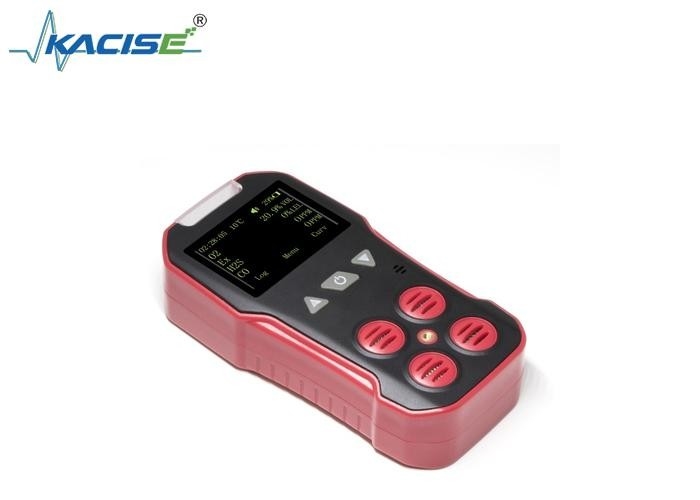

KMCD4 Underground Mining Gas Sentinel

Introduction

The Underground Mining Gas Sentinel: KMCD4 is an essential device for underground mining. It features a plug - in electrochemical sensor and a self - checking function for battery power, display, sensor, and hardware. With a protection grade of IP66 and an explosion - proof grade of Ex ib llC T4 Gb, it's suitable for harsh mining environments. It weighs about 400g and has compact dimensions, making it convenient for miners to carry.

Product Features

1. Plug - in electrochemical sensor for easy replacement.

2. Self - checking function for system integrity.

3. High protection and explosion - proof grades.

4. Compact size and light weight for portability.

Technical Parameters

Accuracy	≦±5% F.S.
Response Time	≦30s
Indication	LCD displays real-time and system status;LED, audio and vibration alert for gas leakage, fault and low voltage.
Sensor	plug-in electrochemical sensor
Alarm Type	low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm
Working environment	-20℃～50℃, ＜95%RH (no dew)
Power Source	DC3.7V Li-on battery, 1800mAh
Charging time	6h~8h
Working time	≧8h continuously (without alarming)
Resolution	0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX)
Self-checking Function	Self-checking Battery power, display, sensor, hardware failure
Gas Sensor Life	2 years
Explosion-proof grade	Ex ib llC T4 Gb
Protection Grade	IP66
Weight	Appr. 400g (with battery)
Dimensions	130mm×67mm×30mm(L × W × H)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	0	0
H2S	0-100ppm	1ppm	10ppm	35ppm
CH4	0-5%vol	0.01%vol	1vol	2.5vol
