Name: KSK - 10 Industrial Site Gas Safety Scout
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSK-10
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KSK - 10 Industrial Site Gas Safety Scout

Industrial Site Gas Safety Scout

Place of Origin:

CHINA

Certification:

Model Number:

KSK-10

Request A Quote

Product Details

Response Time:

T＜30s

Accuracy:

≦ 5% F.S.

Humidity:

＜95%RH Non-condensing

Operating Voltage:

DC3.7V Li Battery 1500mAh

Working Time:

≧8h Continuously

Highlight:

Industrial Site Gas Safety Scout

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

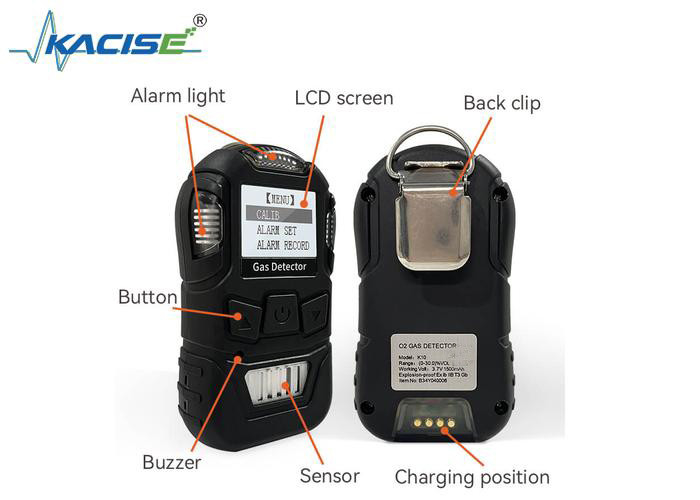

KSK - 10 Industrial Site Gas Safety Scout
Introduction

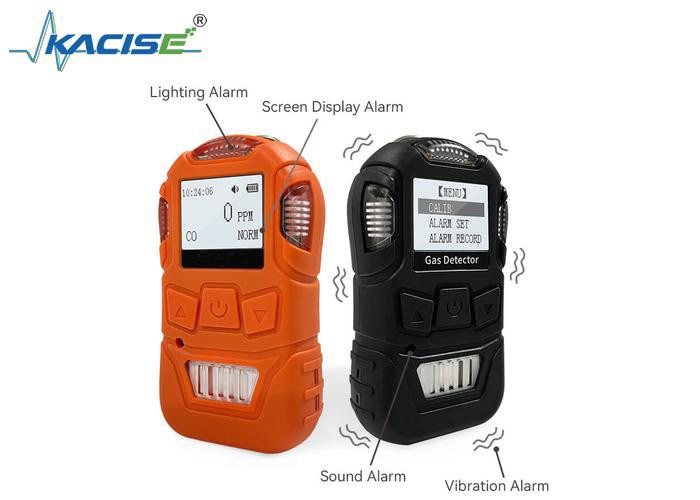

Industrial Site Gas Safety Scout: KSK - 10 is an essential device for ensuring safety in industrial settings. Employing advanced large - scale integrated circuit technology, it uses natural diffusion to detect gas. High - quality gas sensors endow it with excellent sensitivity and repeatability. With four alarm methods—sound, vibration, light, and display—it alerts users promptly. Operating on a DC3.7V Li - battery, it can work continuously for over 8 hours. Its IP66 protection grade enables it to withstand harsh industrial environments.
Product Features
1. Advanced large - scale integrated circuit technology.
2. Natural diffusion sampling for gas detection.
3. High - quality sensors with excellent sensitivity and repeatability.
4. Four - fold alarm system.
5. Long - lasting battery operation for over 8 hours.
6. IP66 protection against dust and water.
Technical Parameters

Sampling method	natural diffusion
Accuracy	≦ 5% F.S.
Response time	T＜30s
Alarm Method	four alarm method: sound, vibration, light, display
Operating Environment	Operating temperature -10℃～55℃
Humidity	＜95%RH non-condensing
Operating voltage	DC3.7V Li battery 1500mAh
Working time	≧8h continuously
Charging time	4h～6h
Sensor life	2 years
Protection category	IP66
Weight	about 130g (including battery but without accessories)
Dimension	109mm×60mm×30mm

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
