KFBH - 60 Industrial Fixed Gas Surveillance

KFBH - 60 Industrial Fixed Gas Surveillance

Industrial Fixed Gas Surveillance

KFBH - 60 Gas Surveillance

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KFBH - 60

Contact Us
Request A Quote
KFBH - 60 Industrial Fixed Gas Surveillance KFBH - 60 Industrial Fixed Gas Surveillance KFBH - 60 Industrial Fixed Gas Surveillance
Product Details
Resolution:
1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision:
＜5% F.S.
Response Time:
≦30S
Recovery Time:
≦10S
Working Temperature:
-20℃-55℃
Repeatability:
≦±1%
Highlight:

Industrial Fixed Gas Surveillance

,

KFBH - 60 Gas Surveillance

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

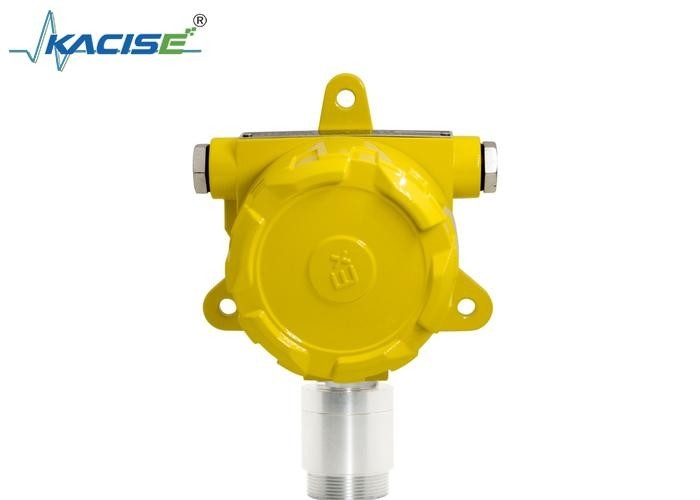

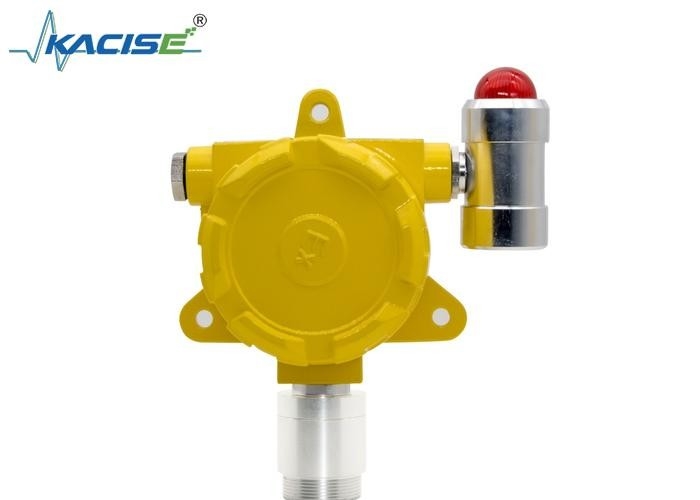

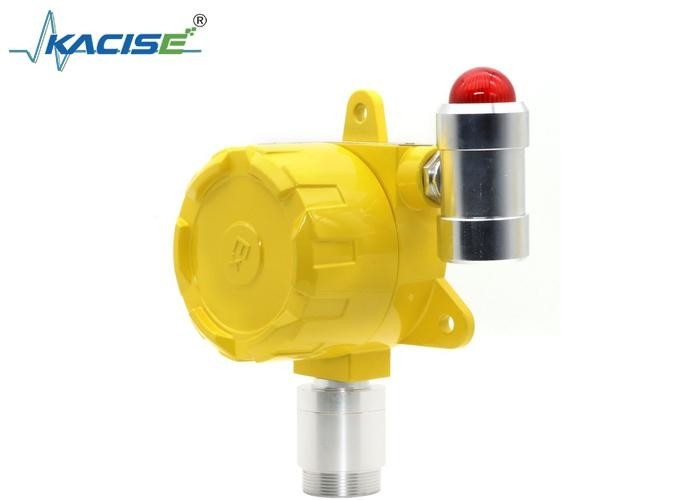

 KFBH - 60 Industrial Fixed Gas Surveillance



Introduction



Industrial Fixed Gas Surveillance: KFBH - 60 is a high - performance fixed gas detector. Equipped with advanced catalytic or electrochemical sensors, it accurately converts gas concentrations in the air into digital signals. It can detect a wide range of gases, including combustible, toxic, and oxygen - related ones. With multiple sampling methods and output signals, it suits various industrial scenarios such as refineries and chemical plants. Operating in a temperature range of - 20℃ to 55℃, it’s explosion - proof (Ex db IIC T6 Gb) and available for OEM/ODM services.



Product Features



1. Advanced catalytic or electrochemical sensors for accurate detection.

2. Wide gas detection range.

3. Multiple sampling and output signal options.

4. High - temperature resistance and explosion - proof design. 5. Available OEM/ODM services.



Technical Parameters



Gas Detected Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF
Detection principle catalytic or electrochemical or PID's or infrared principles
Sampling Method wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution 1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision ＜5% F.S.
Output signal 4-20mA ,0-5V, RS485, relays, wireless digital (optional)
Response Time ≦30S
Recovery Time ≦10S
Repeatability ≦±1%
Linearity error ≦±1%
Zero shift ≦±1% (FS / year)
Display Technology Display high brightness LED display
Connection mode G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm
Working temperature -20℃-55℃
Explosion-Proof Ex db IIC T6 Gb
Working voltage DC 24V
Dimensions 190×150×95mm
Cable requirement 4-20mA, RVVP, 3-line, ≧1.5 mm2
Modbus, RVVP, 4-line, ≧1.5 mm2



Specifications



Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
