Name: KFBH - 60 Industrial Gas Surveillance Sentinel
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFBH-60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KFBH - 60 Industrial Gas Surveillance Sentinel

Industrial Gas Surveillance Sentinel

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFBH-60

Request A Quote

Product Details

Explosion Proof Grade:

Ex Db IIC T6 Gb

Response Time:

30S

Power Supply:

DC24V±10%

Working Temperature:

-20℃～50℃

Output Current:

4-20mA

Working Humidity:

0-95%RH

Highlight:

Industrial Gas Surveillance Sentinel

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

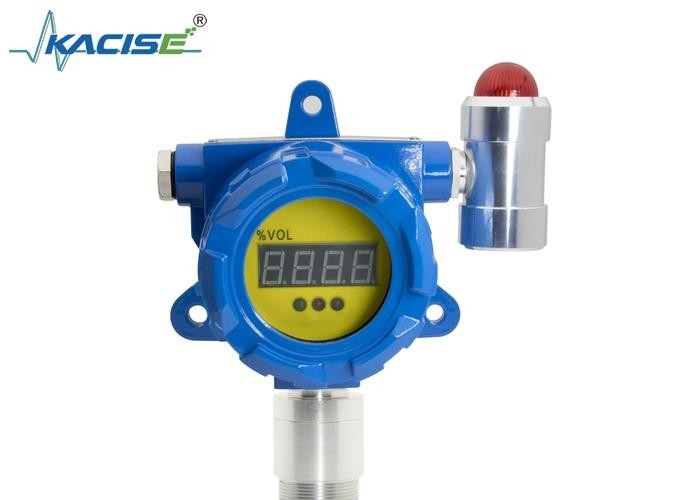

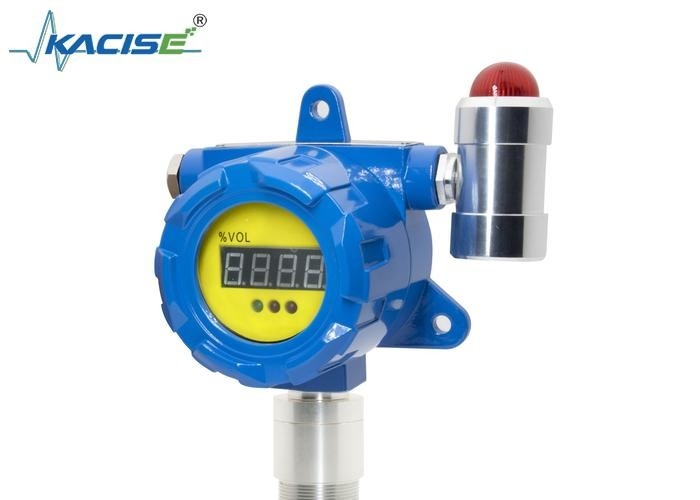

KFBH - 60 Industrial Gas Surveillance Sentinel

Introduction

The Industrial Gas Surveillance Sentinel: KFBH - 60 is a fixed gas detector designed to ensure safety in industrial settings. Equipped with advanced catalytic or electrochemical sensors, it accurately converts gas concentrations into digital signals. Paired with a gas controller, it’s effective in refineries, chemical plants, and other gas - prone areas. With an explosion - proof grade of Ex db IIC T6 Gb, it can operate safely in hazardous environments. The 4 - 20mA output and wall - mounted design make installation and integration easy

Product Features

1. Advanced sensor technology for accurate gas detection.
2. High explosion - proof rating (Ex db IIC T6 Gb). 3. Standard
4 - 20mA output for seamless integration.
4. Wall - mounted design for convenient installation

Technical Parameters

Product type	KFBH-60 fixed gas detector/transmitter
Explosion proof grade	Ex db IIC T6 Gb
Response time	30S
Power supply	DC24V±10%
Working temperature	-20℃～50℃
Output current	4-20mA
Working humidity	0-95%RH
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	190x150x95mm(L×W×H)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
