KFBH-60 Refinery Gas Guardian with Fast Response ≤30S High-Brightness LED Display and Compact Design

Refinery Gas Guardian

KFBH - 60 Gas Guardian

Place of Origin:

CHINA

Certification:

Request A Quote

KFBH-60 Refinery Gas Guardian with Fast Response ≤30S High-Brightness LED Display and Compact Design

Product Details

Precision:

＜5% F.S.

Resolution:

1%LEL, 0.1ppm, 1ppm, 0.01%vol

Recovery Time:

≦10S

Response Time:

≦30S

Repeatability:

≦±1%

Working Temperature:

-20℃-55℃

Highlight:

Refinery Gas Guardian

KFBH - 60 Gas Guardian

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

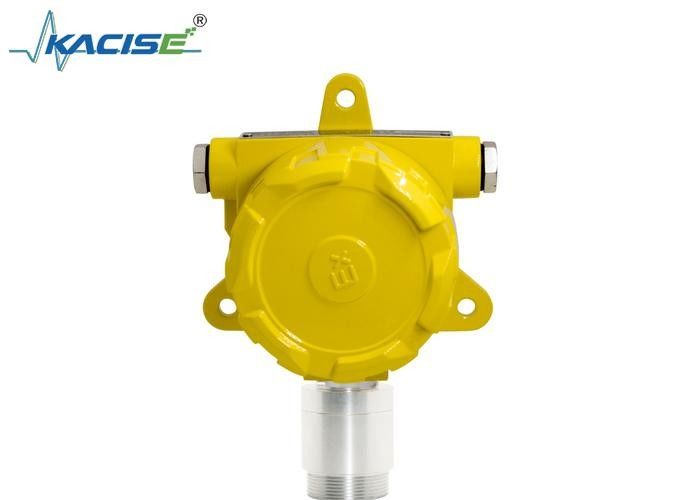

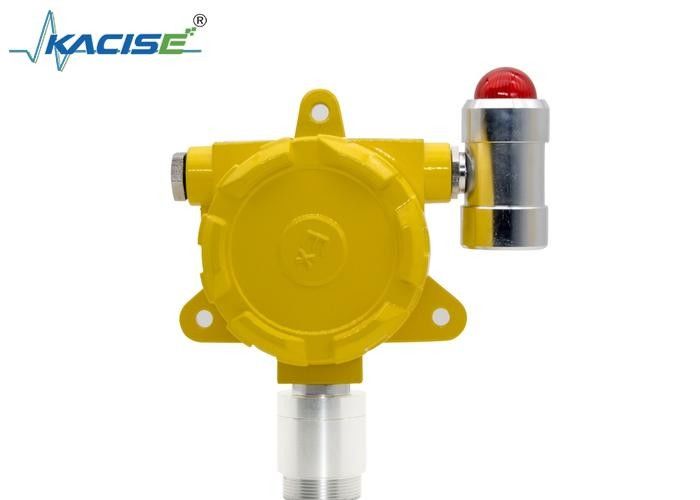

KFBH - 60 Refinery Gas Guardian

Introduction

Refinery Gas Guardian: KFBH - 60 is specifically designed for refineries. Using a wall, pipeline, or flow - through sampling method, it quickly and accurately detects gas leaks. With a response time of ≤30S and recovery time of ≤10S, it ensures timely alerts. Its high - brightness LED display shows real - time gas concentration. The device has a compact design with dimensions of 190×150×95mm and is suitable for long - term installation in refineries to prevent gas - related accidents.

Product Features

Multiple sampling methods for refinery - specific needs.
Fast response and recovery times.
High - brightness LED display for easy monitoring.
Compact design for easy installation.

Technical Parameters

Gas Detected	Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF
Detection principle	catalytic or electrochemical or PID's or infrared principles
Sampling Method	wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution	1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision	＜5% F.S.
Output signal	4-20mA ,0-5V, RS485, relays, wireless digital (optional)
Response Time	≦30S
Recovery Time	≦10S
Repeatability	≦±1%
Linearity error	≦±1%
Zero shift	≦±1% (FS / year)
Display Technology	Display high brightness LED display
Connection mode	G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm
Working temperature	-20℃-55℃
Explosion-Proof	Ex db IIC T6 Gb
Working voltage	DC 24V
Dimensions	190×150×95mm
Cable requirement	4-20mA, RVVP, 3-line, ≧1.5 mm2
Cable requirement	Modbus, RVVP, 4-line, ≧1.5 mm2

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
