KFBH - 60 Refinery Gas Guardian

Refinery Gas Guardian

KFBH - 60 Gas Guardian

Place of Origin:

CHINA

Certification:

Request A Quote

Product Details

Precision:

＜5% F.S.

Resolution:

1%LEL, 0.1ppm, 1ppm, 0.01%vol

Recovery Time:

≦10S

Response Time:

≦30S

Repeatability:

≦±1%

Working Temperature:

-20℃-55℃

Highlight:

Refinery Gas Guardian

KFBH - 60 Gas Guardian

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

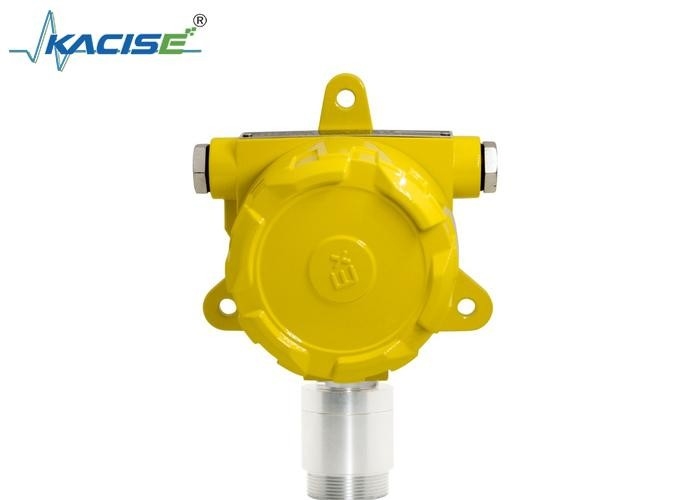

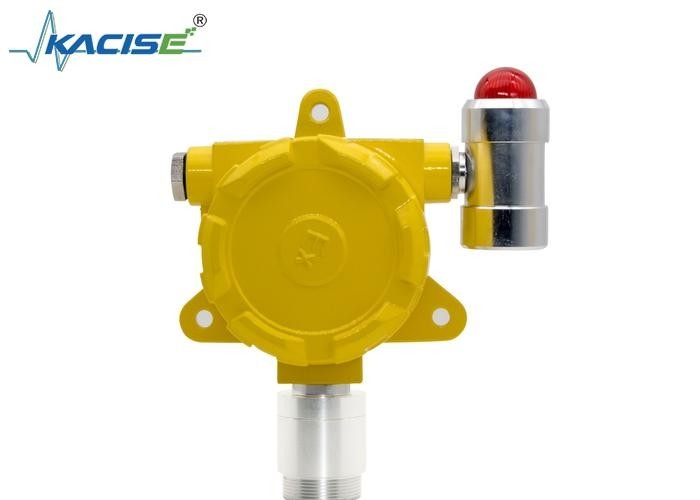

KFBH - 60 Refinery Gas Guardian

Introduction

Refinery Gas Guardian: KFBH - 60 is specifically designed for refineries. Using a wall, pipeline, or flow - through sampling method, it quickly and accurately detects gas leaks. With a response time of ≤30S and recovery time of ≤10S, it ensures timely alerts. Its high - brightness LED display shows real - time gas concentration. The device has a compact design with dimensions of 190×150×95mm and is suitable for long - term installation in refineries to prevent gas - related accidents.

Product Features

1. Multiple sampling methods for refinery - specific needs.

2. Fast response and recovery times.

3. High - brightness LED display for easy monitoring.

4. Compact design for easy installation.

Technical Parameters

Gas Detected	Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF
Detection principle	catalytic or electrochemical or PID's or infrared principles
Sampling Method	wall, pipeline, flow-through (with the monitoring of the environment-related)
Resolution	1%LEL, 0.1ppm, 1ppm, 0.01%vol
Precision	＜5% F.S.
Output signal	4-20mA ,0-5V, RS485, relays, wireless digital (optional)
Response Time	≦30S
Recovery Time	≦10S
Repeatability	≦±1%
Linearity error	≦±1%
Zero shift	≦±1% (FS / year)
Display Technology	Display high brightness LED display
Connection mode	G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm
Working temperature	-20℃-55℃
Explosion-Proof	Ex db IIC T6 Gb
Working voltage	DC 24V
Dimensions	190×150×95mm
Cable requirement	4-20mA, RVVP, 3-line, ≧1.5 mm2
Cable requirement	Modbus, RVVP, 4-line, ≧1.5 mm2

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
