KFBH - 60 Chemical Facility Gas Watchdog

KFBH - 60 Chemical Facility Gas Watchdog

KFBH - 60 Gas Watchdog

Chemical Facility Gas Watchdog

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KFBH-60

Contact Us
Request A Quote
KFBH - 60 Chemical Facility Gas Watchdog KFBH - 60 Chemical Facility Gas Watchdog KFBH - 60 Chemical Facility Gas Watchdog
Product Details
Power Supply:
DC24V±10%
Response Time:
30S
Explosion Proof Grade:
Ex Db IIC T6 Gb
Working Humidity:
0-95%RH
Output Current:
4-20mA
Working Temperature:
-20℃～50℃
Highlight:

KFBH - 60 Gas Watchdog

,

Chemical Facility Gas Watchdog

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

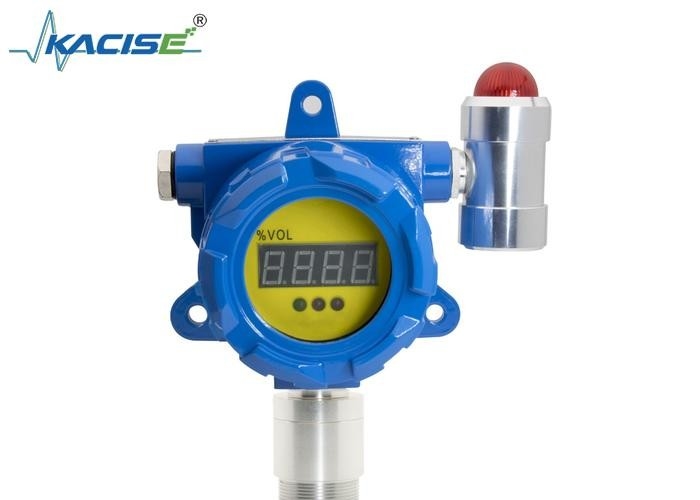

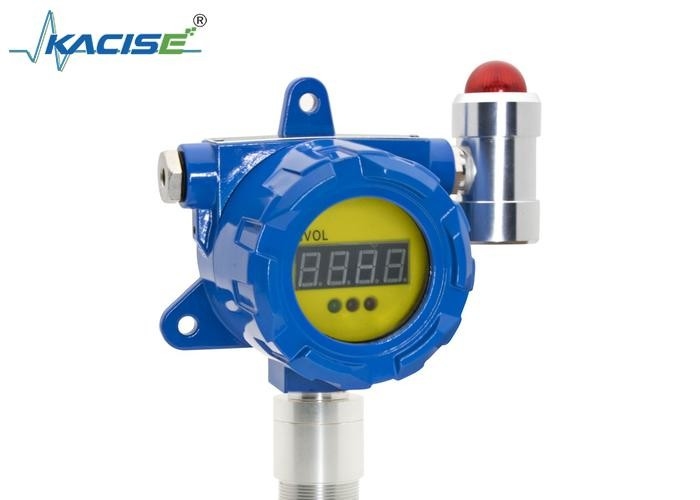

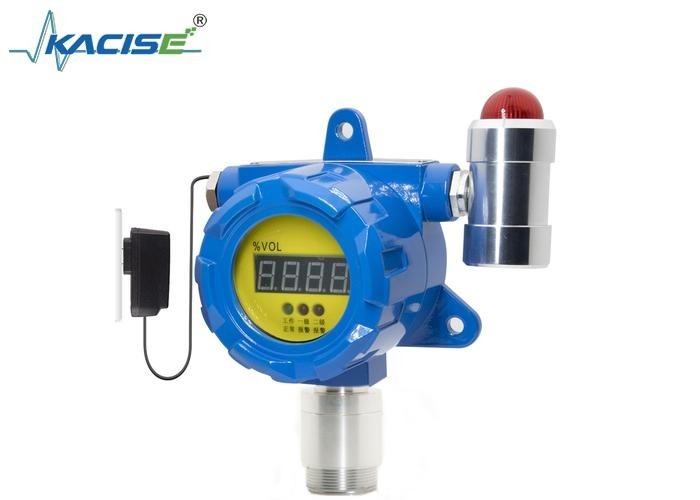

KFBH - 60 Chemical Facility Gas Watchdog



Introduction



The Chemical Facility Gas Watchdog: KFBH - 60 is an essential gas detection solution for chemical facilities. It accepts single inputs of 4 - 20mA and RS485, providing flexibility in data collection. With a humidity tolerance of 0 - 95%RH, it can function in humid chemical plant environments. Its compact dimensions of 190x150x95mm ensure space - efficient installation



Product Features



1. Multiple input options (4 - 20mA and RS485) for flexible data collection.

2. High humidity tolerance (0 - 95%RH).

3. Compact design for space - efficient installation



Technical Parameters

Product type KFBH-60 fixed gas detector/transmitter
Explosion proof grade Ex db IIC T6 Gb
Response time 30S
Power supply DC24V±10%
Working temperature -20℃～50℃
Output current 4-20mA
Working humidity 0-95%RH
Contact output Free contact output, max power 1kW
Single input 4~20mA and RS485
Installation method Wall-mounted
Shell material Aluminum
Dimensions 190x150x95mm(L×W×H)



Specifications



Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
