Name: KFGTQ-DX401 Explosion Proof IP66 Protection Industrial Gas Monitor with Two-Level Alarm Multi-Gas Detector
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFGTQ-DX401
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

KFGTQ-DX401 Explosion Proof IP66 Protection Industrial Gas Monitor with Two-Level Alarm Multi-Gas Detector

DX401 Multi Gas Sentinel

KFGTQ Multi Gas Sentinel

Industrial Multi Gas Sentinel

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFGTQ-DX401

Request A Quote

Product Details

Relay:

Two Sets Of Relay Outputs, Contact Capacity: 30V DC 3A/250V AC 3A

Port:

M20X1.5、G1/2

Operating Humidity:

≤95%RH,no Dew

Explosion Proof Mark:

Ex Db IlC T6 Gb, Extb IIC T80C Db

Protection Category::

IP66

Work Pressure:

86~106KPa

Highlight:

DX401 Multi Gas Sentinel

KFGTQ Multi Gas Sentinel

Industrial Multi Gas Sentinel

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

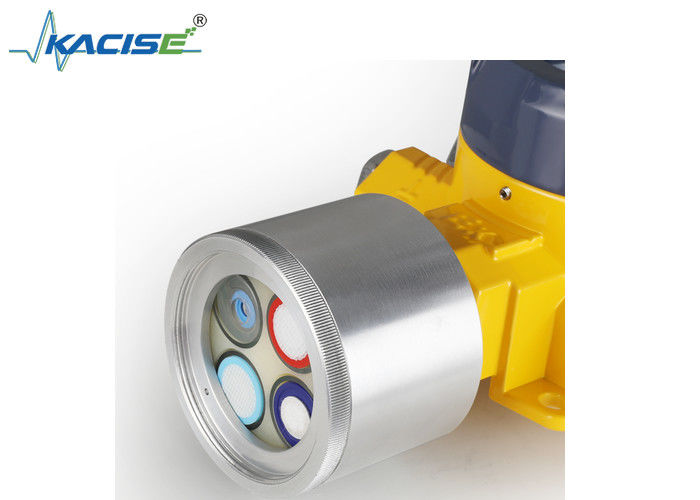

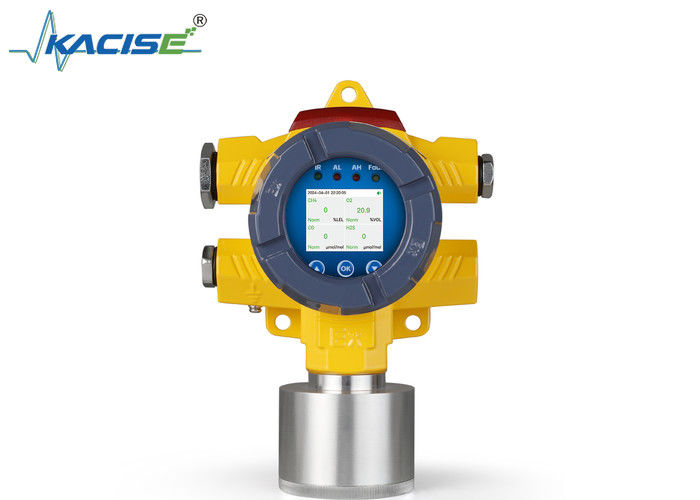

KFGTQ - DX401 Industrial Multi - Gas Sentinel

Introduction

The Industrial Multi - Gas Sentinel: KFGTQ - DX401 is a state - of - the - art fixed multi - gas detector. Engineered with advanced integrated circuit and intelligent technologies, it uses natural diffusion for gas sampling. Equipped with high - quality sensor modules, it accurately detects methane, oxygen, carbon monoxide, and hydrogen sulfide. The device features a user - friendly GUI operation interface and a backlit color LCD for easy monitoring. With standard RS485 signal output and MODBUS RTU protocol, it enables seamless integration. It also offers two - level alarm settings and multiple protection functions. OEM/ODM services are available.

Product Features

Advanced integrated circuit and intelligent technologies.
Natural diffusion sampling with high - quality sensors.
User - friendly GUI and backlit LCD.
Standard RS485 signal and MODBUS RTU protocol.
Two - level alarm settings and multiple protection functions.
Available OEM/ODM services.

Technical Parameters

Gas Type	CH4 0~100%LEL~1%LEL O2 0~30%VOL~0.1%VOL CO 0~1000umol/mol~1 umol/mol H2S 0~100umol/mol ~1 umol/mol
Sensor	Support electrochemical, catalytic, semiconductor, PlD andinfrared gas sensors Diffusion
Relay	Two sets of relay outputs, contact capacity: 30V DC 3A/250V AC 3A
Port	M20X1.5,G1/2
Operating humidity	≤95%RH,no dew
Explosion proof mark	Ex db IlC T6 Gb, Extb IIC T80C Db
Protection category	IP66
Work Pressure	86~106KPa
