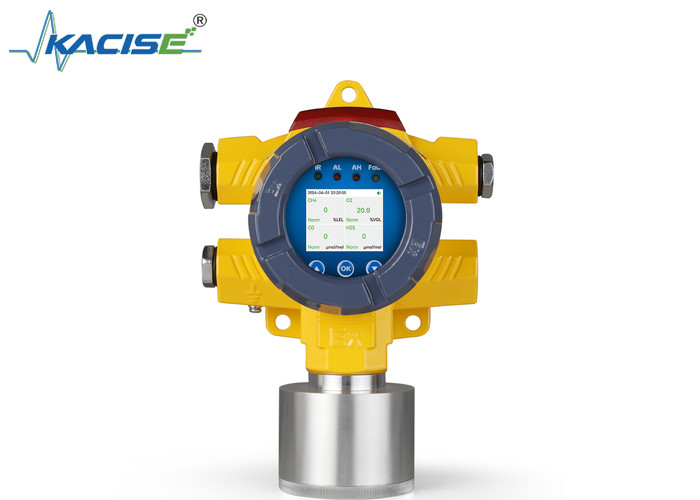

KFGTQ - DX401 Industrial Multi - Gas Sentinel

KFGTQ - DX401 Industrial Multi - Gas Sentinel

Introduction

The Industrial Multi - Gas Sentinel: KFGTQ - DX401 is a state - of - the - art fixed multi - gas detector. Engineered with advanced integrated circuit and intelligent technologies, it uses natural diffusion for gas sampling. Equipped with high - quality sensor modules, it accurately detects methane, oxygen, carbon monoxide, and hydrogen sulfide. The device features a user - friendly GUI operation interface and a backlit color LCD for easy monitoring. With standard RS485 signal output and MODBUS RTU protocol, it enables seamless integration. It also offers two - level alarm settings and multiple protection functions. OEM/ODM services are available.

Product Features

1. Advanced integrated circuit and intelligent technologies.

2. Natural diffusion sampling with high - quality sensors.

3. User - friendly GUI and backlit LCD.

4. Standard RS485 signal and MODBUS RTU protocol.

5. Two - level alarm settings and multiple protection functions. 6. Available OEM/ODM services.

Technical Parameters

Gas Type:

CH4 0~100%LEL~1%LEL

O2 0~30%VOL~0.1%VOL

CO 0~1000umol/mol~1 umol/mol

H2S 0~100umol/mol ~1 umol/mol

sensor: Support electrochemical, catalytic, semiconductor, PlD andinfrared gas sensors Diffusion

Relay: Two sets of relay outputs, contact capacity: 30V DC 3A/250V AC 3A

port: M20X1.5,G1/2

Operating humidity:≤95%RH,no dew

Explosion proof mark: Ex db IlC T6 Gb, Extb IIC T80C Db

Protection category: IP66

Work Pressure: 86~106KPa
