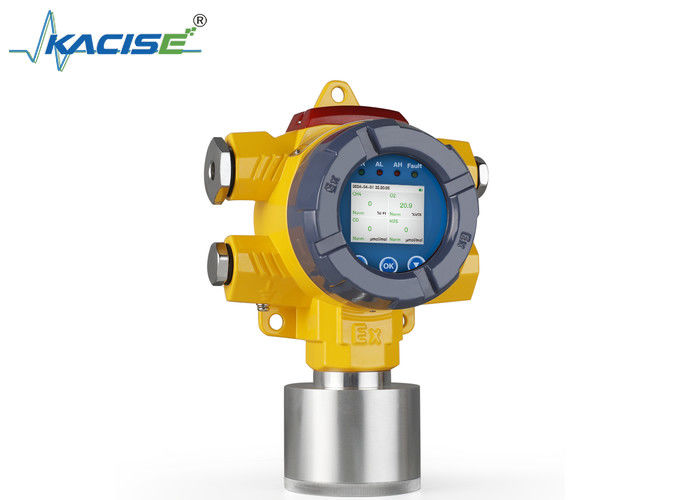

Name: KFGTQ-DX401 Petrochemical Gas Guardian with Explosion Proof IP66 Protection and 32-bit Microprocessor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFGTQ-DX401
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

KFGTQ-DX401 Petrochemical Gas Guardian with Explosion Proof IP66 Protection and 32-bit Microprocessor

Petrochemical Gas Guardian

Harsh Environments Petrochemical Gas Guardian

KFGTQ-DX401 Petrochemical Gas Guardian

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFGTQ-DX401

Request A Quote

Product Details

Work Pressure:

86~106KPa

Protection Category::

IP66

Port:

M20X1.5、G1/2

Relay:

Two Sets Of Relay Outputs, Contact Capacity: 30V DC 3A/250V AC 3A

Explosion Proof Mark:

Ex Db IlC T6 Gb, Extb IIC T80C Db

Operating Humidity:

≤95%RH,no Dew

Highlight:

Petrochemical Gas Guardian

Harsh Environments Petrochemical Gas Guardian

KFGTQ-DX401 Petrochemical Gas Guardian

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

KFGTQ - DX401 Petrochemical Gas Guardian

Introduction

The Petrochemical Gas Guardian: KFGTQ - DX401 is specifically tailored for the petrochemical industry. It efficiently detects key gases prevalent in petrochemical plants. The device adopts advanced micro - power technology sensors and a 32 - bit microprocessor for low - power operation. It has a sensor calibration function that ensures measurement accuracy. With explosion - proof certification (Ex db IlC T6 Gb) and IP66 protection, it can withstand harsh petrochemical environments. The multi - language support and easy - to - replace sensors enhance its usability.

Product Features

Advanced micro - power technology sensors and 32 - bit microprocessor.
Sensor calibration function for accuracy.
High explosion - proof and protection ratings.
Multi - language support and easy sensor replacement.

Technical Parameters

Parameter	Value
Gas Type	CH4 0~100%LEL~1%LEL O2 0~30%VOL~0.1%VOL CO 0~1000umol/mol~1 umol/mol H2S 0~100umol/mol ~1 umol/mol
Sensor	Support electrochemical, catalytic, semiconductor, PlD andinfrared gas sensors Diffusion
Relay	Two sets of relay outputs, contact capacity: 30V DC 3A/250V AC 3A
Port	M20X1.5,G1/2
Operating humidity	≤95%RH,no dew
Explosion proof mark	Ex db IlC T6 Gb, Extb IIC T80C Db
Protection category	IP66
Work Pressure	86~106KPa
