Name: KFK - G60 Hazardous Zone Gas Alert
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFK - G60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KFK - G60 Hazardous Zone Gas Alert

KFK - G60 Gas Alert

Hazardous Zone Gas Alert

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFK - G60

Request A Quote

Product Details

Protection Category:

IP 66

Explosion Proof Grade:

Ex Db LIC T6 Gb/Ex Tb IIIC T80C Db

Power Supply:

DC24V±15%

Response Time:

<30S

Output Current:

4-20mA

Working Temperature:

-20℃~50℃

Highlight:

KFK - G60 Gas Alert

Hazardous Zone Gas Alert

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

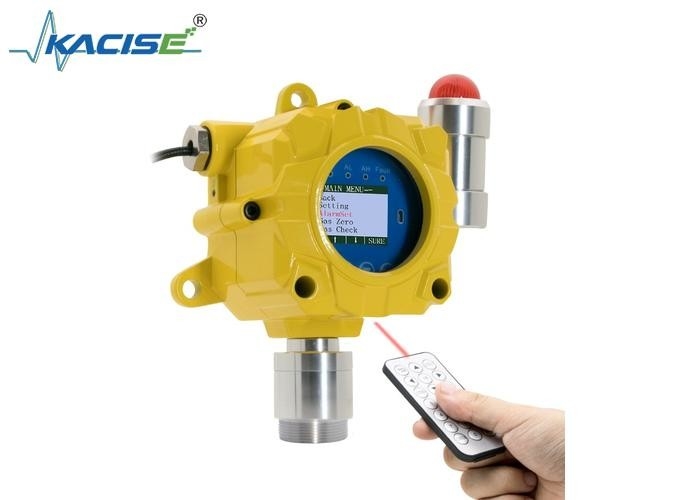

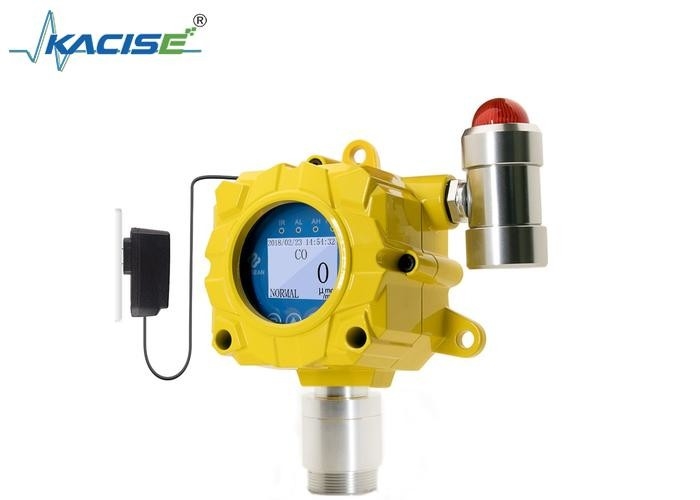

KFK - G60 Hazardous Zone Gas Alert

Introduction

The Hazardous Zone Gas Alert: KFK - G60 is specifically designed for hazardous areas. Made of aluminum, it's durable and suitable for long - term wall - mounted installation. It supports single inputs of 4 - 20mA and RS485, facilitating data collection and integration. The free contact output with a max power of 1kW allows for immediate control actions. Operating within a temperature range of - 20℃~50℃, it's reliable in different working conditions.

Product Features

1. Aluminum shell for durability.

2. Multiple input options for data collection.

3. Free contact output for control.

4. Wide operating temperature range.

Technical Parameters

Product Name	K-G60 Remote Control Fixed Gas Detector
Explosion proof grade	Ex db lIC T6 Gb/Ex tb IIIC T80C Db
Protection category	IP 66
Response time	<30S
Power supply	DC24V±15%
Working temperature	-20℃~50℃
Output current	4-20mA
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	19015095mm(LWH)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
