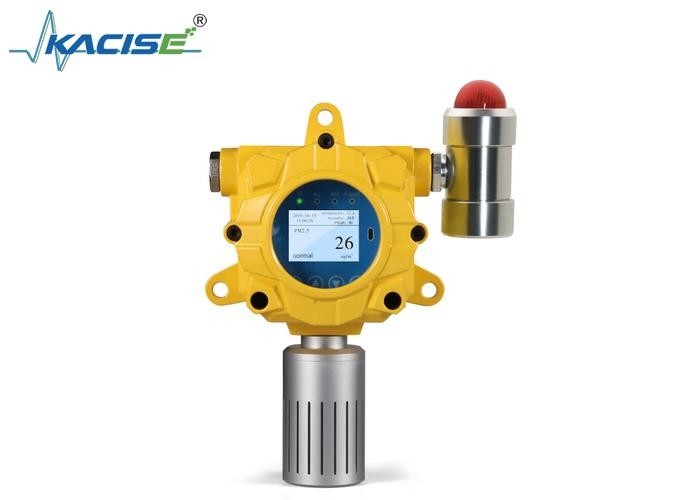

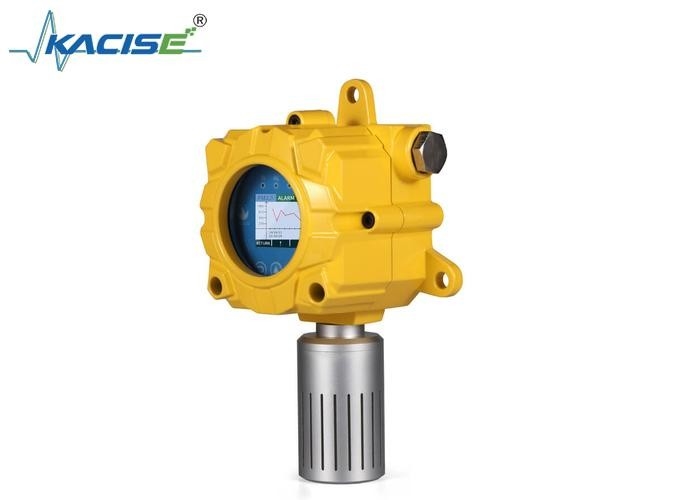

KFK - G60 - TSP Factory Dust Surveillance Pro

KFK - G60 - TSP Factory Dust Surveillance Pro

Introduction

Factory Dust Surveillance Pro: KFK - G60 - TSP is a high - performance fixed dust detector designed for factory settings. Employing the laser scattering method, it accurately measures dust concentrations. When the dust concentration exceeds the preset alarm point, it instantly triggers sound and light alarms or activates the exhaust system. With an international standard 4 - 20mA signal, it can be easily integrated into the plant DCS system. An RS485 digital signal enables connection to the plant host computer, ensuring seamless data transfer and monitoring.

Product Features

1. Laser scattering sampling for accurate dust detection.

2. Dual alarm and exhaust system activation functions.

3. Standard 4 - 20mA and RS485 signals for system integration.

4. Fast response time of ≤10s

Technical Parameters

Sensor: PM2.5 PM10

Pressure: 86 ~ 106Kpa

Sampling method: Laser Scattering

T&H: -20℃-50℃, <95%RH

Response Time: ≤10s

Voltage: DC24V±15%

Range:(0-1000)ug/m3

           (0-6000)ug/m3

Display: 2.0 inch colored LCD

Size: 236*181*90mm

Precision: ≤±10%F.S
