Home > products > Gas Detector Sensor >

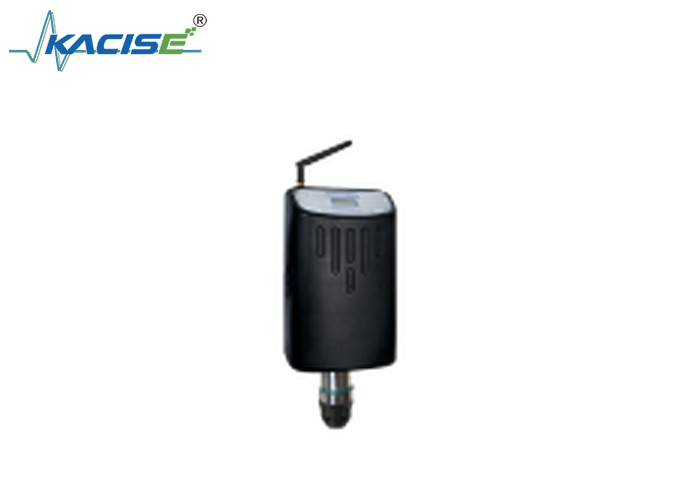

KWG100 Gas Monitoring Terminal

KWG100 Gas Monitoring Terminal

KWG100 Gas Monitoring Terminal

Gas Monitoring Terminal

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KWG100

Contact Us
Request A Quote
KWG100 Gas Monitoring Terminal
Product Details
Power Supply Method:
Lithium Battery
Working Mode:
Parameters Configurable
Sensor Type:
Laser Sensor
Detection Parameters:
CH₄: 0 - 100%LEL; Temperature: -40° - +125°
Operating Temperature:
-30° - 70°
Operating Humidity:
≤100%RH Without Dew Condensation
Highlight:

KWG100 Gas Monitoring Terminal

,

Gas Monitoring Terminal

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description
KWG100 Gas Monitoring Terminal

Product Details

The KWG100 (Manhole/Confined Space) gas monitoring terminal is an advanced instrument produced by our company. It has the function of wireless data upload and is used to monitor the gas concentration in urban underground confined spaces. This terminal is designed by adopting laser sensor and microcomputer technologies, combined with excellent low-power consumption technology. It has the advantages of power saving, intuitive display, good repeatability, long service life, easy installation, simple maintenance, and convenient operation.
This terminal is powered by batteries. It can use the existing local cellular communication network to upload information such as gas concentration, battery power, and the type of abnormality to the data center via a wireless network either at regular intervals or in the event of an alarm. Combined with the system software, it can perform maintenance operations such as statistics, query, and backup of the gas concentration information at each on-site monitoring point.
This terminal is suitable for continuously monitoring and giving early warnings of the gas concentration in urban underground confined spaces such as gas valve wells, water supply and drainage wells, power wells, and communication wells.

Product Advantages

  • Adopts an advanced ultra-low-power consumption 16-bit microcontroller.
  • Battery-powered.
  • Excellent low-power consumption design.
  • Segment code liquid crystal display screen, with an intuitive and clear display.
  • Wireless data upload function, with a dual data upload mechanism of time + event (alarm).
  • Remote parameter configuration.
  • Two-level alarm.
  • Intrinsically safe equipment, which can be used in explosion-proof areas.
  • IP68 protection level, providing dustproof and waterproof performance.

Main Applications

This terminal is suitable for continuously monitoring and giving early warnings of the combustible gas concentration in urban underground pipe networks such as gas valve wells, sewage wells, power wells, water supply wells, and communication wells.

Technical Specifications

Items Details
Power Supply Method Lithium Battery
Working Mode Parameters Configurable
Sensor Type Laser Sensor
Detection Parameters CH₄: 0 - 100%LEL; Temperature: -40° - +125°
Operating Temperature -30° - 70°
Operating Humidity ≤100%RH without Dew Condensation
Detection Accuracy CH₄: ±5%F.S; Temperature: ±2°
Display Method LCD Digital Display
Battery Service Life ≥18 months (Standard Working Mode)
Explosion - proof Type Intrinsic Safety
Protection Level IP68
Product Dimensions 285×125×70 (mm)
Product Weight Approximately 1.7 kg
Data Transmission 4G, NB - IoT Data Upload
