KSCY5 Infrared Ethylene Oxide Gas Sensor Module

KSCY5 Infrared Ethylene Oxide Gas Sensor Module

Ethylene Oxide Gas Sensor Module

Infrared Ethylene Oxide Gas Sensor Module

KSCY5 Ethylene Oxide Gas Sensor Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KSCY5

Contact Us
Request A Quote
KSCY5 Infrared Ethylene Oxide Gas Sensor Module
Product Details
Storage Temperature:
-20 To 80°C
Operating Temperature:
-20 To 60°C
Operating Humidity:
0 To 90% RH
Operating Pressure:
0.8 To 1.2ATM
Detection Range:
1000ppm
Measurement Accuracy:
1ppm
Highlight:

Ethylene Oxide Gas Sensor Module

,

Infrared Ethylene Oxide Gas Sensor Module

,

KSCY5 Ethylene Oxide Gas Sensor Module

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

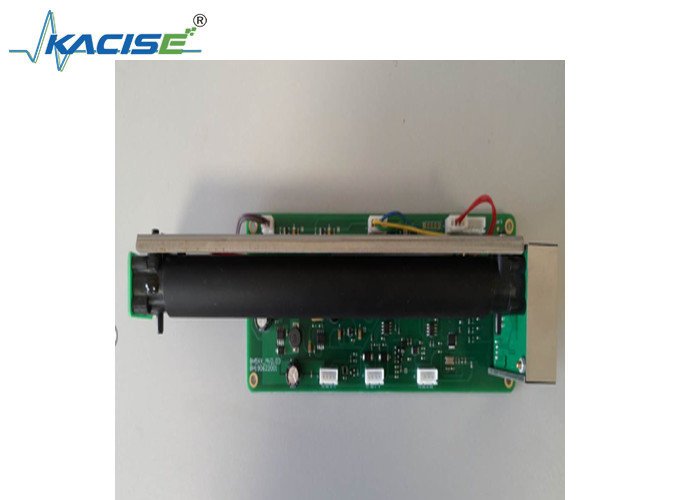

KSCY5 Infrared Ethylene Oxide Gas Sensor Module



Introduction



The KSCY5 infrared ethylene oxide sensor is a gas sensor module that uses the NDIR infrared absorption detection principle. KSCY5 uses MEMS light source, special structure optical cavity and dual-channel detector to achieve spatial dual optical path reference compensation, and the microprocessor performs signal acquisition, processing and output. KSCY5 has good selectivity, high sensitivity, no oxygen dependence, long life and low power consumption; built-in temperature sensor for temperature compensation; also has UART, 485 output and analog current/voltage output; alarm points can be set to facilitate customers to use in different application scenarios.



Technical Parameters



Working conditions
Description Symbol Value Unit
Storage temperature Tstg -20 to 80 °C
Operating temperature TA -20 to 60 °C
Operating humidity HA 0 to 90 % RH
Operating pressure PA 0.8 to 1.2 ATM
Electrical characteristics
Description Symbol Min Typical Max Unit
Power supply Vs 9 12 15 V
Maximum operating current Heating Imax 490 510 515 mA
Maximum operating current Not heating Imax 110 120 140 mA
Performance parameters
Description Min Typical Max Unit
Detection range 100 1000 100% ppm
Measurement accuracy 1 1 1 ppm
T90 Pump suction 15 ≤30 ≤30 s
Repeatability Zero point   <±50   ppm
50% FS - <±5% of measured value - ppm
life 3 5 10 Years
