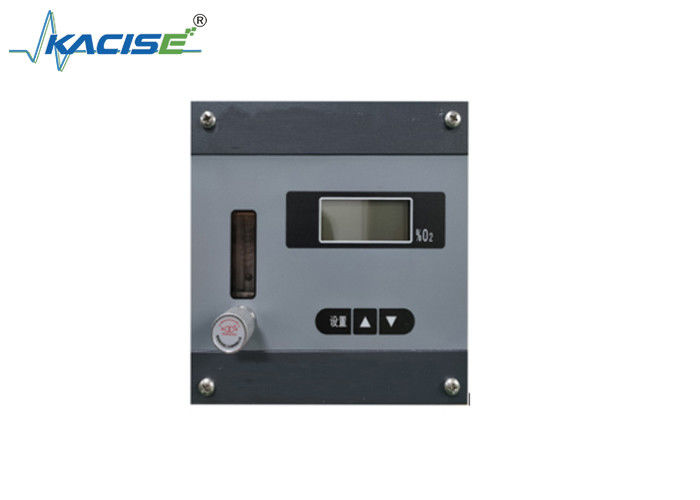

Name: KTG111-C Hydrogen and Oxygen Analyzer with ±1%FS Repeatability for Water Electrolysis and Fast Response Time ≤30s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KTG111-C
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

KTG111-C Hydrogen and Oxygen Analyzer with ±1%FS Repeatability for Water Electrolysis and Fast Response Time ≤30s

KTG111-C Water Electrolysis Hydrogen Analyzer

Accurate Results Water Electrolysis Hydrogen Analyzer

Oxygen Analyzer Water Electrolysis Hydrogen Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KTG111-C

Request A Quote

Product Details

Measurement Range:

0.00 - 2.00％/25.0％ (Optional Measurement Ranges)

Allowable Error:

±2％FS

Repeatability:

±1%FS

Resolution:

0.0001

Response Time:

T90 ≤ 30s

Zero Drift:

≤±1％FS/7d

Highlight:

KTG111-C Water Electrolysis Hydrogen Analyzer

Accurate Results Water Electrolysis Hydrogen Analyzer

Oxygen Analyzer Water Electrolysis Hydrogen Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

The KTG111-C oxygen in hydrogen analyzer is applied to water electrolysis for hydrogen and oxygen production

Product Applications

The product is widely used in on - line detection and analysis of hydrogen content in explosion - proof and non-explosion - proof scenarios during industrial production processes such as water electrolysis for hydrogen and oxygen production, fertilizers, petrochemicals, air separation, and biological fermentation.

Basic Principle

This instrument uses a fuel - cell - type electrochemical sensor, usually composed of silver and lead electrodes immersed in an electrolyte. The measured gas diffuses through a gas - permeable membrane to the electrodes, where a chemical reaction occurs, enabling the measurement of oxygen content.

Technical Parameters

Measurement Range	0.00 - 2.00％/25.0％ (Optional measurement ranges)
Allowable Error	±2％FS
Repeatability	±1%FS
Resolution	0.01%
Response Time	t90 ≤ 30s
Zero Drift	≤±1％FS/7d
Span Drift	≤±1％FS/7d
Sample Gas Flow Rate	(300 ± 30) mL/min
Operating Power Supply	Transmitter 24VDC
Operating Environment
Operating Temperature	- 15℃ - ＋45℃
Operating Humidity	≤90％RH

Instrument Features

The electrochemical sensor features long service life, high accuracy, and fast response.
Small in size and light in weight, easy to install.
Split - type explosion - proof design.
Equipped with on - site display function.
The output signal can be transmitted up to 1000 meters.

Intrinsic Safety Type

Overall Dimensions	140mm (Width)×140mm (Height)×220mm (Depth)
Cutout Dimensions	136mm (Width)×136mm (Height)
Parameters of External Safety Barrier	Vo ≤ 28VDC, Io ≤ 93mA, Cp ≤ 0.02uF, Lp ≤ 1mH
Weight	1.8kg

Flameproof Type

Dimensions	130mm*136mm
Analog Output	4 - 20mA
Digital Output	RS458 interface, modbus protocol.
Explosion - proof Mark	Exd IIC T6
Weight	1.8kg
