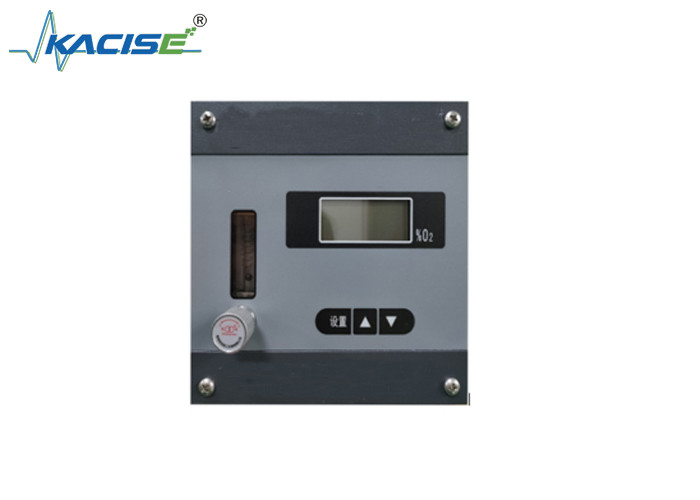

KTG111-C Water Electrolysis Hydrogen and Oxygen Analyzer ±1%FS Repeatability for Accurate Results

The KTG111-C oxygen in hydrogen analyzer is applied to water electrolysis for hydrogen and oxygen production

Product Applications

The product is widely used in on - line detection and analysis of hydrogen content in explosion - proof and non - explosion - proof scenarios during industrial production processes such as water electrolysis for hydrogen and oxygen production, fertilizers, petrochemicals, air separation, and biological fermentation.

Basic Principle

This instrument uses a fuel - cell - type electrochemical sensor, usually composed of silver and lead electrodes immersed in an electrolyte. The measured gas diffuses through a gas - permeable membrane to the electrodes, where a chemical reaction occurs, enabling the measurement of oxygen content.

Technical Parameters

Measurement Range: 0.00 - 2.00％/25.0％ (Optional measurement ranges)

Allowable Error: ±2％FS

Repeatability: ±1%FS

Resolution: 0.01%

Response Time: t90 ≤ 30s

Zero Drift: ≤±1％FS/7d

Span Drift: ≤±1％FS/7d

Sample Gas Flow Rate: (300 ± 30) mL/min

Operating Power Supply: Transmitter 24VDC

Operating Environment:

Operating Temperature: - 15℃ - ＋45℃

Operating Humidity: ≤90％RH

Instrument Features

• The electrochemical sensor features long service life, high accuracy, and fast response.
• Small in size and light in weight, easy to install.
• Split - type explosion - proof design.
• Equipped with on - site display function.
• The output signal can be transmitted up to 1000 meters.

Intrinsic Safety Type

Overall Dimensions: 140mm (Width)×140mm (Height)×220mm (Depth)

Cutout Dimensions: 136mm (Width)×136mm (Height)

Parameters of External Safety Barrier: Vo ≤ 28VDC, Io ≤ 93mA, Cp ≤ 0.02uF, Lp ≤ 1mH

Weight: 1.8kg

Flameproof Type

Dimensions: 130mm*136mm

Analog Output: 4 - 20mA

Digital Output: RS458 interface, modbus protocol.

Explosion - proof Mark: Exd IIC T6

Weight: 1.8kg
