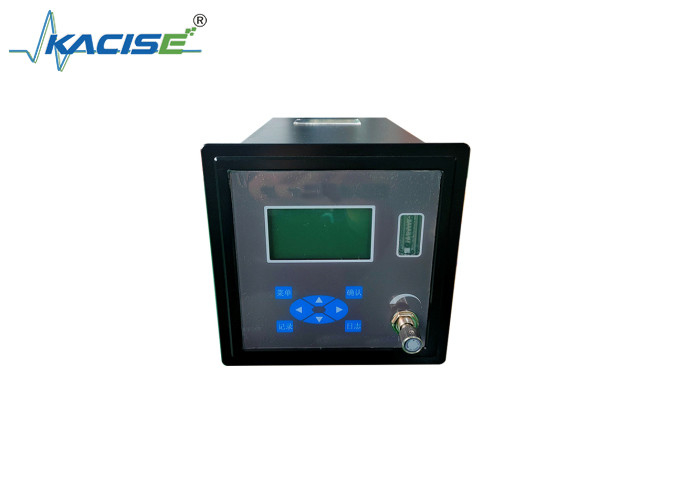

KTG111-W Trace Oxygen Analyzer for On-line Oxygen Content Analysis in Building Materials Industry

The KTG111-W trace oxygen analyzer is applied to the on-line analysis of oxygen content in the building materials industry

Introduction

The trace oxygen analyzer is a new type of intelligent industrial on-line analyzer developed by combining the electrochemical detection principle, imported high-performance electrochemical sensors, and new microcomputer technology.

Application Areas

On-line analysis of oxygen content in nitrogen production from air separation, chemical processes, protective gases in high-temperature sintering furnaces for magnetic materials, protective gases in the electronics industry, and the glass and building materials industries.

Instrument Features

• Selects imported fuel cell sensors, featuring long service life, high accuracy, and fast response.
• Adopts electronic flow control, with no blockage issues. It has a fully Chinese man-machine dialogue menu, making operations intuitive and convenient.
• Uses a 128×64 liquid crystal display, which can simultaneously show parameters such as oxygen content, flow rate, date, time, and the internal temperature of the instrument.
• Has a timed automatic storage function, allowing users to view stored data at any time.
• Alarm points can be set arbitrarily within the full measurement range. It is equipped with a standard RS232 or RS485 communication port, enabling two-way communication with a computer.

Technical Parameters

Measurement Range: (0.0 - 10/100/1000/25%) × 10⁻⁶;

Maximum Allowable Error: ±2% FS (0.0 - 10) × 10⁻⁶; ±1% FS (10 - 1000) × 10⁻⁶;

Stability: Zero drift ±1% FS/7d; Span drift ±1% FS/7d;

Repeatability: ±1% FS;

Sample Gas Flow Rate: (400 ± 20) ml/min;

Response Time: T90 ≤ 60S;

Resolution: 0.1 × 10⁻⁶;

Sample Gas Pressure: 0.05 MPa ≤ Inlet pressure ≤ 0.25 MPa;

Analog Output: (4 - 20) mA standard signal; (0 - 10) mA is optional (please specify when ordering).

Digital Output: Standard RS485 communication port, enabling two-way communication with a computer.

Operating Environment: Temperature: -5°C - +45°C; Humidity: ≤90% RH;

Operating Power Supply: 220VAC ± 10%, 50Hz ± 5%;

Overall Dimensions: 160mm (Width) × 160mm (Height) × 260mm (Depth)

Installation Dimensions: 153mm (Width) × 153mm (Height)

Weight: Approximately 2.2KG
