Name: Diffusion Type Explosion Proof Combustible Gas Detector with Multi-Thread Embedded System for Industrial Safety
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN102
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Diffusion Type Explosion Proof Combustible Gas Detector with Multi-Thread Embedded System for Industrial Safety

Industrial Combustible Gas Detector

Commercial Combustible Gas Detector

Point Type Combustible Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN102

Request A Quote

Diffusion Type Explosion Proof Combustible Gas Detector with Multi-Thread Embedded System for Industrial Safety

Product Details

Operating Voltage And Power Consumption:

DC24V ± 6V, ≤ 1.5W (DC24V)

Detection Range:

Diffusion Type

Detection Principle:

Catalytic Combustion, Electrochemical, Infrared, PID

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Explosion - Proof Mark And Protection Level:

Ex Db IIC T6 Gb : Ex Db IIIC T80°C Db IP66

Electrical Interface:

G3/4" Internal Thread

Highlight:

Industrial Combustible Gas Detector

Commercial Combustible Gas Detector

Point Type Combustible Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

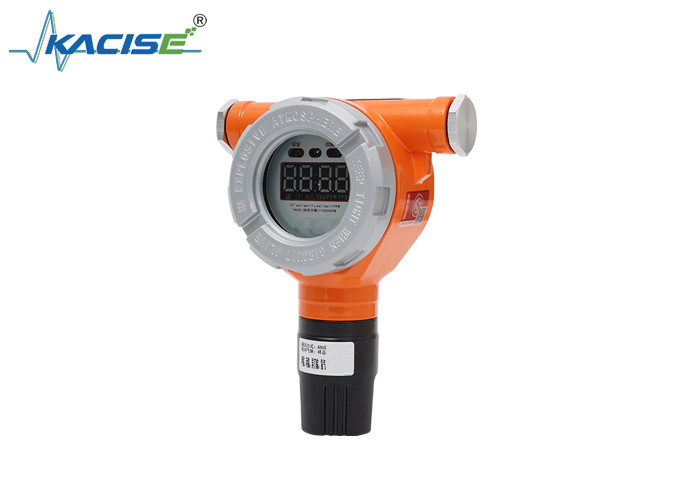

KAN102 Point - type Combustible Gas Detector / Toxic and Hazardous Gas Detection (Alarm) Instrument for Industrial and Commercial Applications

Product Introduction

This detector is compatible with gas sensors such as catalytic, infrared, semiconductor, and electrochemical types. It is designed with a thickened explosion - proof aluminum alloy housing, ensuring stable operation in various industrial explosion - proof environments. As an all - around detector, it can switch among 2/3/4 - wire systems, RS485, and LORA communication by replacing plug - in modules. It is operated with a dedicated infrared remote control. The software is driven by a multi - thread embedded system and programmed with an intelligent human - machine dialogue interface, meeting various functional requirements for gas detection.

Product Description

Operating Voltage and Power Consumption	DC24V ± 6V, ≤ 1.5W (DC24V)	Detection Range	Diffusion type
Detection Principle	Catalytic combustion, Electrochemical, Infrared, PID	Communication Distance	≤ 1000m (RVSP1.5mm²)
Electrical Interface	G3/4" internal thread	Explosion - proof Mark and Protection Level	Ex db IIC T6 Gb : Ex db IIIC T80°C Db IP66
Output Capacity	1 set of passive switch output: 220VAC/24VDC, 2A 1 set of active audible and visual alarm output	Communication and Operation Modes	Infrared remote control, within 8 meters 4 - 20mA three - wire communication, ABUS four - wire system TBUS two - wire system, RS485, LORA communication
Alarm Value	Specific parameters of different sensors are shown on the nameplate	Operating Temperature and Humidity	-40°C - +70°C (for combustible gases), -20°C - +40°C, ≤ 93%RH
Display Method	2.1 - inch high - brightness color LED display screen, 4 - digit 8 - segment digital + graphic display	Pressure Range and Response Time	86KPa - 106KPa, < 30S (T90)
