Name: Diffusion Type Carbon Monoxide and Carbon Dioxide Gas Detector for Underground Garages
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN109
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Diffusion Type Carbon Monoxide and Carbon Dioxide Gas Detector for Underground Garages

Underground Garages Carbon Dioxide Gas Detector

Diffusion Type Carbon Monoxide Gas Detector

Underground Garages Carbon Monoxide Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN109

Request A Quote

Diffusion Type Carbon Monoxide and Carbon Dioxide Gas Detector for Underground Garages

Product Details

Detection Principle:

Electrochemical (for CO), Infrared (for CO₂)

Detection Range And Sampling Method:

Diffusion Type For Carbon Monoxide And Carbon Dioxide

Detection Range:

0 - 500PPm (CO), 0 - 5000PPm (CO₂)

Alarm Method:

Audible And Visual Alarm

Operating Voltage And Power:

DC24V ± 6V

Ambient Air Pressure:

86KPa - 106KPa

Highlight:

Underground Garages Carbon Dioxide Gas Detector

Diffusion Type Carbon Monoxide Gas Detector

Underground Garages Carbon Monoxide Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

KAN109 Carbon Monoxide Gas Detector for Underground Garages

Product Introduction

The detector has a full - temperature compensation function, which automatically corrects the impact of temperature changes on the detected concentration. The bus is equipped with an anti - interference and anti - static protection circuit to ensure the long - term stable operation of the detector. The detector uses a high - precision electrochemical gas sensor, which features high sensitivity and strong anti - interference ability. When the detector alarms, it can emit audible and visual alarm signals. It can optionally be equipped with a linkage output node, which can be connected to a DC12V pulse gas solenoid valve or a dry - contact output.

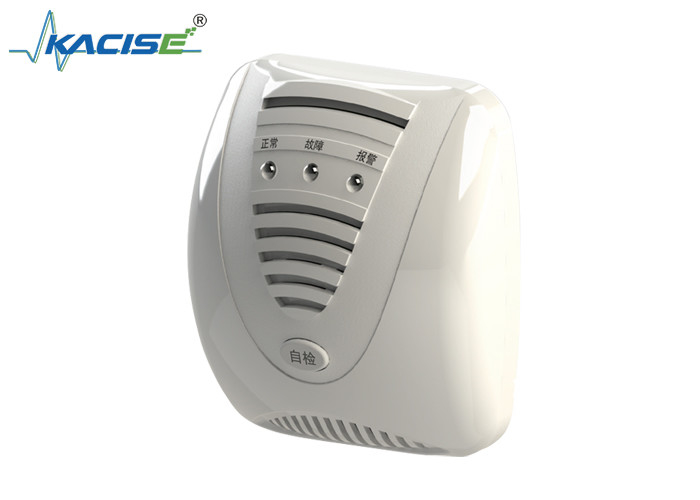

Diffusion Type Carbon Monoxide and Carbon Dioxide Gas Detector for Underground Garages 0

Product Description

Detection Principle	Detection Range and Sampling Method	Detection Range	Alarm Method
Electrochemical (for CO), Infrared (for CO₂)	Diffusion type for carbon monoxide and carbon dioxide	0 - 500PPm (CO), 0 - 5000PPm (CO₂)	Audible and visual alarm
Operating Voltage and Power	Installation Method	Alarm Output	Ambient Air Pressure
DC24V ± 6V ≤ 1.5W during normal monitoring ≤ 3W in alarm state	Wall - mounted installation, Ceiling - mounted installation	Optional 1 set of DC12V pulse solenoid valve output (discharged by 1000μf capacitor) or a set of passive relay output	86KPa - 106KPa
Response Time and Recovery Time	Operating Temperature and Humidity	Specification
≤ 30 seconds	-10°C - +55°C, ≤ 93%RH	ABS plastic, ≤ 150g, 108×95×45
