Name: Advanced Gas Alarm Controller with ≤ 10W Power Consumption and ≤ 1000m Communication Distance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN121
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Advanced Gas Alarm Controller with ≤ 10W Power Consumption and ≤ 1000m Communication Distance

≤ 10W Gas Alarm Controller

Advanced Gas Alarm Controller

≤ 1000m Gas Alarm Controller

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN121

Request A Quote

Advanced Gas Alarm Controller with ≤ 10W Power Consumption and ≤ 1000m Communication Distance

Product Details

Signal Transmission:

ABUS Four - Wire Bus, TBUS Two - Wire Bus

Operating Voltage:

AC220V ± 15%/50HZ

Alarm Threshold And Alarm Method:

High - Limit Alarm

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Detected Gases And Bus Capacity:

Combustible Gases, Toxic And Hazardous Gases, Configured With 1/2/4/8 Points

Power Consumption:

≤ 10W (excluding Detector)

Highlight:

≤ 10W Gas Alarm Controller

Advanced Gas Alarm Controller

≤ 1000m Gas Alarm Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

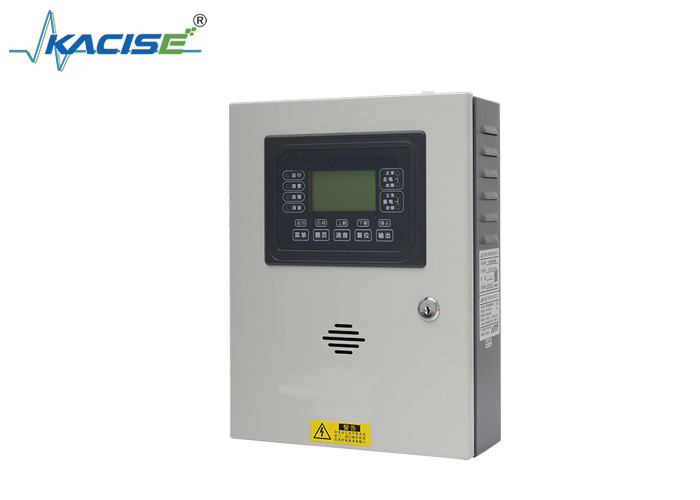

KAN121 Gas Alarm Controller

Product Introduction

It has two sets of built - in passive relay contact outputs, which can directly control solenoid valves and AC fans (AC220V) with a power less than 1100W. It allows for remote correction of detector sensitivity and zero - point adjustment, eliminating the need for on - site calibration using large - scale gas distribution equipment. It is equipped with an automatic fault detection function and can indicate the location and type of the fault. It can store 2000 historical records in different categories. It is optional to carry out the transformation work for a three - wire system. The system has a reserved communication interface, facilitating networking with third - party control systems.

Advanced Gas Alarm Controller with ≤ 10W Power Consumption and ≤ 1000m Communication Distance 0

Product Description

Signal Transmission	Operating Voltage	Alarm Threshold and Alarm Method	Communication Distance
ABUS four - wire bus, TBUS two - wire bus	AC220V ± 15%/50HZ	High - limit alarm Low - limit alarm Audible and visual alarm	≤ 1000m (RVSP1.5mm²)
Detected Gases and Bus Capacity	Power Consumption	Control Output	Display Method
Combustible gases, toxic and hazardous gases, configured with 1/2/4/8 points	≤ 10W (excluding detector)	Two - way programmable linkage output (contact capacity 5A/DC24V or 5A/AC220V), Pulse output: 500mS break, Continuous output: Switch - quantity output	3.2 - inch 128×64 pixel dot - matrix liquid crystal LED backlit display screen, using Chinese + icon display
Under - voltage Alarm Point and Indication Error	Working Environment	Detection Unit	Optional Accessories
165V ± 10V, ± 5%FS	Temperature: 0°C - 40°C, Humidity: ≤ 93%RH	%LEL, PPM, %VOL mg/m³, °C, %RH	Backup battery: 2 pieces of DC12V/1.3AH storage batteries, ASD - MK5215 isolated RS485 converter (Optional modules below) LORA, Ethernet, WIFI, NB
