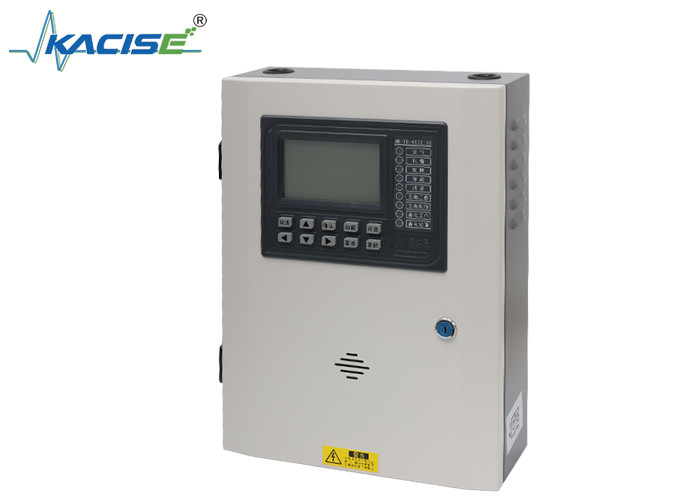

Name: KAN122 Gas Alarm Controller
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN122
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KAN122 Gas Alarm Controller

KAN122 Gas Alarm

Gas Alarm Controller

KAN122 Gas Alarm Controller

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN122

Request A Quote

Product Details

Signal Transmission:

ABUS Four - Wire Bus, TBUS Two - Wire Bus

Operating Voltage:

AC220V ± 15%/50HZ

Alarm Threshold And Alarm Method:

High - Limit Alarm

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Optional Accessories:

Backup Battery: 2 Pieces Of DC12V/4.5AH Storage Batteries

Power Consumption:

≤ 10W (excluding Detector)

Highlight:

KAN122 Gas Alarm

Gas Alarm Controller

KAN122 Gas Alarm Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

KAN122 Gas Alarm Controller

Product Introduction

It uses the ABUS bus for data transmission, which has a long transmission distance, strong anti - interference ability, and is equipped with a short - circuit protection function. It can record 1000 pieces of historical gas alarm information, 1000 pieces of historical fault information, and 500 pieces of system operation information. It is equipped with an RS485 interface, which can be networked and communicate with a monitoring system that complies with the communication protocol to achieve remote display of alarm information. There is a TF memory card reader (customization required), through which the historical data of the controller can be easily exported and external configuration data can be imported via the TF memory card.

KAN122 Gas Alarm Controller 0

Product Description

Signal Transmission	Operating Voltage	Alarm Threshold and Alarm Method	Communication Distance
ABUS four - wire bus, TBUS two - wire bus	AC220V ± 15%/50HZ	High - limit alarm Low - limit alarm Audible and visual alarm	≤ 1000m (RVSP1.5mm²)
Optional Accessories	Power Consumption	Control Output	Display Method
Backup battery: 2 pieces of DC12V/4.5AH storage batteries	≤ 10W (excluding detector)	Three - way programmable linkage output (contact capacity 5A/DC24V or 5A/AC220V), Pulse output: 500mS break, Continuous output: Switch - quantity output	5 - inch high - resolution LCD display
Under - voltage Alarm Point and Indication Error	Working Environment	Detection Unit	Detected Gases and Bus Capacity
165V ± 10V, ± 5%FS	Temperature: 0°C - 40°C, Humidity: ≤ 93%RH	%LEL, PPM, %VOL mg/m³, °C, %RH	Combustible gases, toxic and hazardous gases Maximum configuration of 4 loops/expandable, maximum of 8 loops (64 points per loop)
