Name: KAN125 Combustible Gas Alarm Controller Limit Alarm Threshold and Method ≤ 10W Power Consumption for Detection
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN125
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KAN125 Combustible Gas Alarm Controller Limit Alarm Threshold and Method ≤ 10W Power Consumption for Detection

KAN125 Combustible Gas Alarm Controller

10W Combustible Gas Alarm Controller

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN125

Request A Quote

Product Details

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Operating Voltage:

AC220V ± 15%/50HZ

Detected Gases And Bus Capacity:

Combustible Gases, Toxic And Hazardous Gases

Signal Transmission:

4 - 20mA Branch - Line System

Alarm Threshold And Alarm Method:

High - Limit Alarm

Power Consumption:

≤ 10W (excluding Detector)

Highlight:

KAN125 Combustible Gas Alarm Controller

10W Combustible Gas Alarm Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

KAN125 Combustible Gas Alarm Controller

Product Introduction

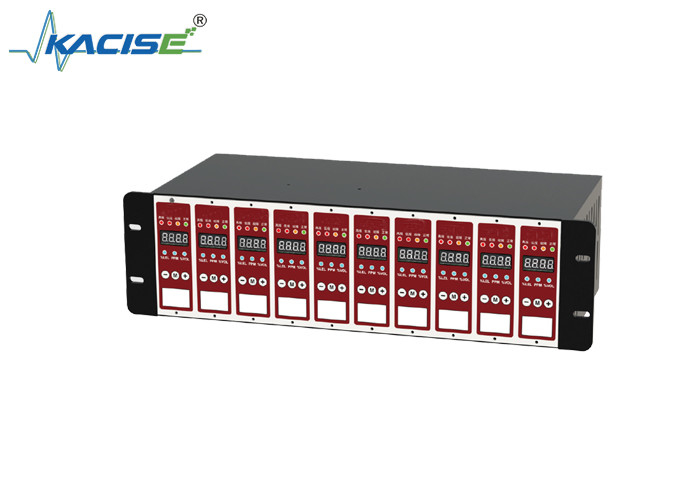

It can record 1,000 pieces of historical gas alarm information, 1,000 pieces of historical fault information, and 500 pieces of system operation information. It features a 19 - inch standard 3U disk - loaded integrated metal - structured chassis, which is easy to install in a cabinet and comes with a graphical LCD screen. The main control card is equipped with a networking communication RS485 interface. Through the expansion of the communication RS485 module, it can achieve remote communication and networking with the control system. The channel card comes with one set of 4 - 20mA signal output, one set of alarm switch - quantity output, and one set of fault switch - quantity output, and communicates with the detector via the 4 - 20mA signal.

KAN125 Combustible Gas Alarm Controller Limit Alarm Threshold and Method ≤ 10W Power Consumption for Detection 0

Product Description

Communication Distance	Operating Voltage	Detected Gases and Bus Capacity	Signal Transmission
≤ 1000m (RVSP1.5mm²)	AC220V ± 15%/50HZ	Combustible gases, toxic and hazardous gases Configured with 8/16/32/64 points	4 - 20mA branch - line system
Alarm Threshold and Alarm Method	Power Consumption	Control Output	Display Method
High - limit alarm Low - limit alarm Audible and visual alarm	≤ 10W (excluding detector)	Three - way programmable linkage output (contact capacity 5A/DC24V or 5A/AC220V), Pulse output: breaks after 500mS, Continuous output: Switch - quantity output	2 - inch 128×64 pixel dot - matrix liquid crystal LED backlit display screen, using Chinese and English + icon display
Under - voltage Alarm Point and Indication Error	Working Environment	Detection Unit	Optional Accessories
165V ± 10V, ± 5%FS	Temperature: 0°C - 40°C, Humidity: ≤ 93%RH	%LEL, PPM, %VOL	Backup battery: 2 pieces of DC12V/4.5AH storage batteries
