Name: KAN141 Intelligent Composite Flame Detector
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN141
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KAN141 Intelligent Composite Flame Detector

Intelligent Composite Flame Detector

KAN141 Composite Flame Detector

Composite Flame Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN141

Request A Quote

Product Details

Operating Voltage And Pressure Range:

DC24V±6V, 86KPa - 106KPa

Electrical Interface And Sensitivity Level:

G1/2" Internal Thread, Class I

Sensor Lifespan And Shell Material:

3 Years (typical Value), Explosion - Proof Sapphire Glass

Explosion - Proof Mark And Protection Level:

Ex D IIC T6 Gb : Ex TD A21 IP66 T80°C IP66

Viewing Angle Range And Response Time:

Infrared 90°, Ultraviolet 120°, <30S

Spectral Response:

Ultraviolet Tube: 185nm - 260nm

Highlight:

Intelligent Composite Flame Detector

KAN141 Composite Flame Detector

Composite Flame Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

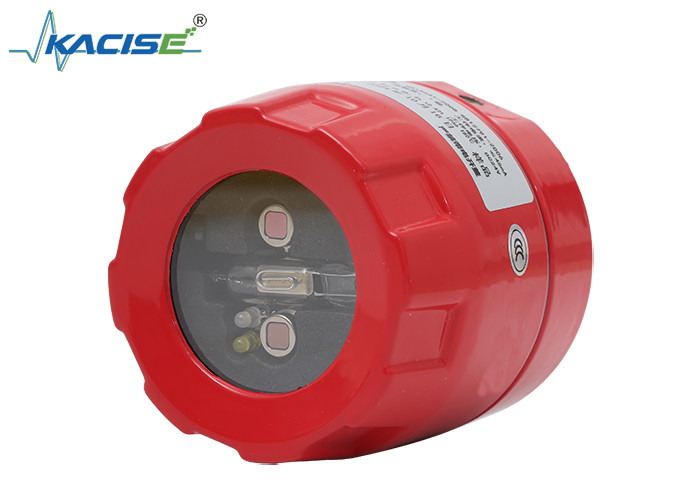

KAN141 Intelligent Composite Flame Detector

Product Introduction

The shell is made of a thickened explosion - proof sapphire panel. The sensitivity of this detector is adjustable. It has a passive output and can be connected to a fire alarm system. The flame detection distance can reach up to 50 meters; the infrared detection viewing angle is 90°, and the ultraviolet detection viewing angle is 120°. The detector is a composite red - ultraviolet flame detection device that can collect radiation information from light sources in different wavelength bands, which can greatly enhance the stability of the detector.

KAN141 Intelligent Composite Flame Detector 0

Product Description

Operating Voltage and Pressure Range	Electrical Interface and Sensitivity Level	Sensor Lifespan and Shell Material	Detection Distance
DC24V±6V, 86KPa - 106KPa	G1/2" internal thread, Class I	3 years (typical value), explosion - proof sapphire glass	25m (0.33m×0.33m ethanol fire, normal heptane fire) ≤60m (0.5m×0.5m gasoline fire)
Viewing Angle Range and Response Time	Explosion - proof Mark and Protection Level	LED Indication	Spectral Response
Infrared 90°, Ultraviolet 120°, <30S	Ex d IIC T6 Gb : Ex tD A21 IP66 T80°C IP66	Operating indication: green light flashing Alarm indication: red light always on Fault indication: yellow light always on	Ultraviolet tube: 185nm - 260nm Infrared tube: 4.3μm - 5.1μm
Signal Output and Operation Mode	Operating Temperature and Humidity	Fire Alarm Relay	Fault Relay
Relay passive, infrared adjustable	-10°C - +55°C, 0 - 95%RH (non - condensing)	1A/30VDC 0.3A/60VDC 0.5A/125AC	1A/30VDC 0.3A/60VDC 0.5A/125AC
