Name: KAN124 Air Controller for Underground Garages featuring TBUS Two Wire System Signal Transmission
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN124
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KAN124 Air Controller for Underground Garages featuring TBUS Two Wire System Signal Transmission

TBUS Two-Wire System Air Controller

KAN124 Air Controller

Underground Garages Air Controller

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN124

Request A Quote

Product Details

Signal Transmission:

TBUS Two - Wire System

Operating Voltage:

AC220V ± 20%/50HZ

Bus Capacity:

≤ 64 Points

No - Load Power Consumption:

≤ 10W

Indication Error:

± 5%FS

Working Environment:

Temperature: 0°C - 40°C, Humidity: ≤ 93%RH

Highlight:

TBUS Two-Wire System Air Controller

KAN124 Air Controller

Underground Garages Air Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

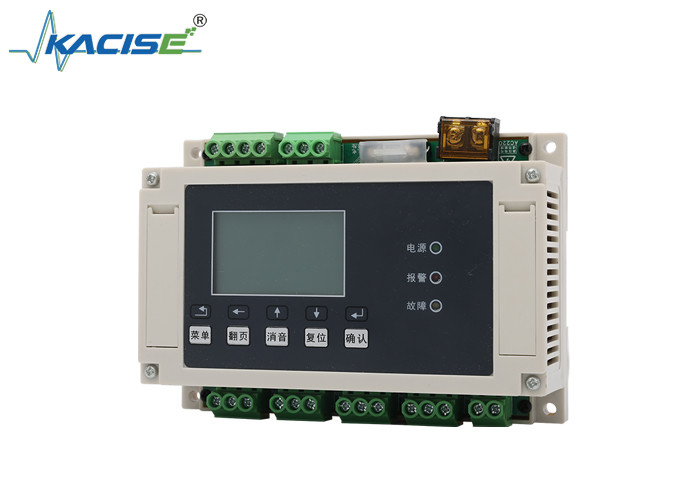

KAN124 Air Quality Controller (Specifically for Underground Garages)

Product Introduction

This is a two - wire system controller device that can communicate with the bus - type carbon monoxide detectors produced by our company. It comes with 4 sets of passive switch - quantity outputs, and the outputs of sets 1, 2, 3, and 4 are set to continuous output by default. The controller has automatic fault and alarm functions, and can send out information such as faults and alarms within the time required by the national standard. The controller is equipped with a networking communication RS485 interface. Through the expansion of the communication RS485 module, it can achieve remote communication networking with a control system that complies with the communication protocol, enabling remote control of alarm information.

KAN124 Air Controller for Underground Garages featuring TBUS Two Wire System Signal Transmission 0

Product Description

Signal Transmission	Operating Voltage	Alarm Threshold and Alarm Method	Communication Distance
TBUS two - wire system	AC220V ± 20%/50HZ	High - limit alarm Low - limit alarm Audible and visual alarm	≤ 1000m (RVSP2.5mm²)
Bus Capacity	No - load Power Consumption	Control Output	Display Method
≤ 64 points	≤ 10W	Four - way programmable linkage output (contact capacity 5A/DC24V or 5A/AC250V), default continuous output for groups 1, 2, 3, 4	2.4 - inch 128×64 pixel dot - matrix LCD, using Chinese and English + icon display
Indication Error	Working Environment	Detection Unit	Compatible Equipment
± 5%FS	Temperature: 0°C - 40°C, Humidity: ≤ 93%RH	PPM	Non - explosion - proof carbon monoxide detectors with two - wire communication produced by our company
