Name: ±3%RH Humidity Measurement and 0.1°C Temperature Resolution KAN 150 Transmitter for Industrial
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN150
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

±3%RH Humidity Measurement and 0.1°C Temperature Resolution KAN 150 Transmitter for Industrial

0.1°C Temperature Resolution KAN 150 Transmitter

±3%RH Humidity Measurement KAN 150 Transmitter

Industrial KAN 150 Transmitter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN150

Request A Quote

Product Details

Temperature Measurement Range And Accuracy:

(-40 - 80)°C, ±0.5°C

Humidity Measurement Range And Accuracy:

(0 - 100)%RH, ±3%RH

Specification:

Cast Aluminum Alloy, ≤325g, 118mm×98mm×52mm

Detection Range:

10 - 20m² Per Unit

Temperature Resolution And Humidity Resolution:

0.1°C, 0.1%RH

Operating Voltage And Power Consumption:

DC24V±6V, ≤1.5W

Highlight:

0.1°C Temperature Resolution KAN 150 Transmitter

±3%RH Humidity Measurement KAN 150 Transmitter

Industrial KAN 150 Transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

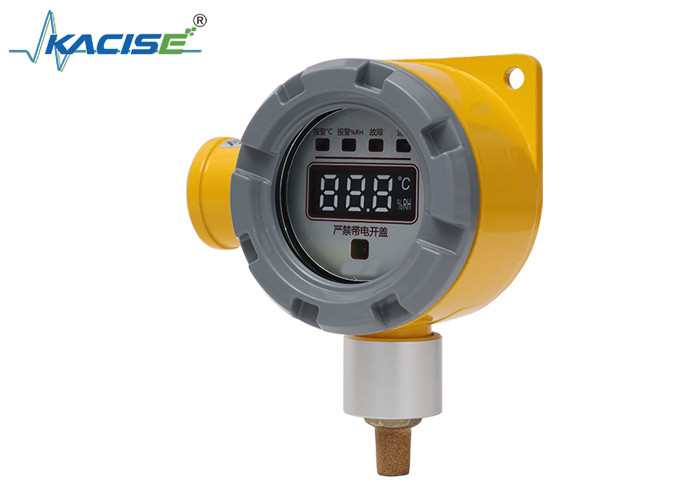

KAN 150 Temperature and Humidity Transmitter

Product Introduction

The transmitter comes with two switch - quantity outputs. By default, one is for temperature alarm and the other is for humidity alarm (customization is available). It is an explosion - proof transmitter. The transmitter communicates with the controller using the ABUS/TBUS method and can be used simultaneously with our company's gas detectors and other products. All transmitters are designed with a non - polar connection, and the bus is designed with an anti - interference and anti - static protection circuit to ensure the stable operation of the transmitter.

±3%RH Humidity Measurement and 0.1°C Temperature Resolution KAN 150 Transmitter for Industrial 0

Product Description

Temperature Measurement Range and Accuracy	Humidity Measurement Range and Accuracy	Communication Method and Distance	Specification
(-40 - 80)°C, ±0.5°C	(0 - 100)%RH, ±3%RH	ABUS two - bus communication, RS485, ≤1000m (4 - 20mm²)	Cast aluminum alloy, ≤325g, 118mm×98mm×52mm
Temperature Resolution and Humidity Resolution	Operating Voltage and Power Consumption	Output Capacity	Detection Range
0.1°C, 0.1%RH	DC24V±6V, ≤1.5W	30V, 2A (maximum contact current)	10 - 20m² per unit
Electrical Interface	Response Time	Output Method
G3/4" thread (internal)	<30S	Two groups of passive switch - quantity outputs (by default, this function is not available; please contact the manufacturer for customization if needed)
