KMPI - EII Full - Spectrum Electrochemiluminescence Detector

KMPI - EII Full - Spectrum Electrochemiluminescence Detector

EII Electrochemiluminescence Detector

Full Spectrum Electrochemiluminescence Detector

KMPI Electrochemiluminescence Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KMPI - EI

Contact Us
Request A Quote
Product Details
Measurement Accuracy:
Better Than 0.05%
Amplifier Gain:
1×, 10×, 100×, 1000×
Filter Frequency:
10 Hz, 20 Hz, 50 Hz, 100 Hz
Amplifier Output Drift:
Better Than 0.05%
Signal Noise:
≤ 0.5 MV (P - P Value, 1×)
Input Impedance:
≥ 10 MΩ
Highlight:

EII Electrochemiluminescence Detector

,

Full Spectrum Electrochemiluminescence Detector

,

KMPI Electrochemiluminescence Detector

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

KMPI - EII Full - Spectrum Electrochemiluminescence Detector



Product Introduction

lectrochemiluminescence detection is a new type of detection method that has developed rapidly in recent years. It combines electrochemical analysis with chemiluminescence detection and can be used in clinical test analysis as well as scientific experiments in the fields of medicine, viruses, immunology, etc.

The MPI - EⅡ electrochemiluminescence detector is a high - performance analytical testing device based on the Windows operating platform. This instrument can perform chemiluminescence detections such as static injection chemiluminescence, chemiluminescence, and electrochemiluminescence.



This instrument can be applied in the following fields:

Detection and analysis of drugs, amino acids, polypeptides, proteins, and nucleic acids.

Research on the interactions between proteins and drugs, as well as between proteins and nucleic acids.

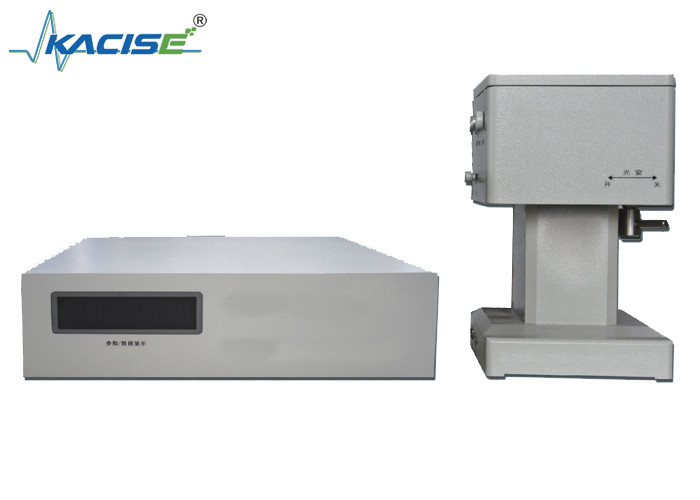

This instrument consists of two parts: the KKMPI - EII electrochemiluminescence detector and the AOL - 1 full - spectrum ultra - weak light detector. The KKMPI - EII electrochemiluminescence detector is the core of the entire testing system, and the electrochemical module and chemiluminescence module are integrated inside the instrument. The standard USB interface can effectively complete the data transmission between the system computer, the instrument, and the corresponding control components.



Electrochemistry

It provides electrochemical methods such as potentiostat, cyclic voltammetry, and linear sweep required for electrochemical and electrochemiluminescence analysis, as well as electrochemical current detection means..



Technical Specifications

Potential Range: - 10 V to 10 V

Current Range: ±250 mA

Reference Electrode Input Impedance: 10 MΩ

Sensitivity: 1 x 10⁻⁹ to 1 x 10⁻² A, a total of 8 ranges

Input Bias Current: < 50 pA; Potential Increment: 1 mV

Scan Rate: 0.001 to 65 V/S

Chemiluminescence

Technical Specifications

Measurement Dynamic Range: Greater than 5 orders of magnitude

Measurement Accuracy: Better than 0.05%

Amplifier Gain: 1×, 10×, 100×, 1000×

Filter Frequency: 10 Hz, 20 Hz, 50 Hz, 100 Hz

Amplifier Output Drift: Better than 0.05%

Signal Noise: ≤ 0.5 mV (P - P value, 1×)

Input Impedance: ≥ 10 MΩ

Integrating Amplifier Integration Time: 0.01 to 10 seconds

System Automatic Zero - setting

Gain Automatic Control

Sampling Rate: 1 to 200 times per second

AOL - 1 Full - Spectrum Ultra - weak Light Detector

It can perform various luminescence detections such as static injection chemiluminescence, chemiluminescence, and electrochemiluminescence, and can also be used as a shield for electrochemical detection to shield the influence of external electromagnetic interference signals.

Technical Specifications

Input High Voltage: - 100 to - 1000 V

Wavelength Range: 230 to 920 nm (Sensitive Wavelength: 630 nm)

Anode Sensitivity: > 2000 A/Lm
