Name: Low Power Integrated Air Quality Module KGD-AM-102 with Fast Response for PM and VOC Detection
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AM-102
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

Low Power Integrated Air Quality Module KGD-AM-102 with Fast Response for PM and VOC Detection

Integrated Air Quality Module

KGD AM 102 Air Quality Module

Low Power Air Quality Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-102

Request A Quote

Product Details

Power - On Stabilization Time:

≤180s（VOC）

Data Refresh Frequency:

Operating Conditions:

-20~60℃, 0~95%RH

Storage Conditions:

-40 - 80℃, 0 - 95%RH (Non - Condensing)

Operating Voltage:

DC 5V±0.2V, Ripple Below 100mV

Communication Interface:

① UART (3.3V/5V)

Highlight:

Integrated Air Quality Module

KGD AM 102 Air Quality Module

Low Power Air Quality Module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

Low - Power Integrated Air Quality Module KGD - AM - 102

Product Introduction

The laser dust sensor has a built - in MOX chip, enabling the simultaneous output of multiple indicators such as PM1.0, PM2.5, PM10, and VOC, meeting customers' needs for performance upgrades without changing the product structural design.

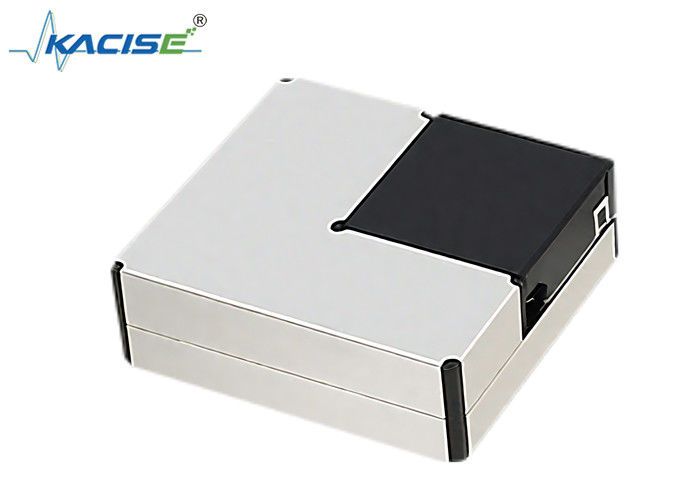

Low Power Integrated Air Quality Module KGD-AM-102 with Fast Response for PM and VOC Detection 0

Product Features

Capable of simultaneously outputting multiple indicators such as PM1.0, PM2.5, PM10, and VOC.
Built into the laser dust sensor, fully compatible with customers' existing product structures, requiring no modifications.
Fast response, low power consumption, and good long - term stability.
Correction and compensation technology to ensure accuracy across the full temperature range.

Technical Parameters

Detection range	Dust: 0 - 500μg/m³ (Can detect up to 5000μg/m³)VOC: 0 - 10ppm
Detection accuracy	PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10: 0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading (GRIMM, 0~40℃, 50 ±10%RH) VOC: ±15% (@0.3-1ppm) ±25% (@30ppm)
Power - on stabilization time	≤180s(VOC)
Data refresh frequency	1s
Operating conditions	-20~60℃, 0~95%RH
Storage conditions	-40 - 80℃, 0 - 95%RH (Non - condensing)
Operating voltage	DC 5V±0.2V, ripple below 100mV
Communication interface	① UART (3.3V/5V) ② IIC(3.3V/5V)
Product dimensions	W38H35D12 mm
