Name: Low - Power Integrated Air Quality Module KGD - AM - 102
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AM-102
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Low - Power Integrated Air Quality Module KGD - AM - 102

Integrated Air Quality Module

KGD AM 102 Air Quality Module

Low Power Air Quality Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-102

Request A Quote

Product Details

Power - On Stabilization Time:

≤180s（VOC）

Data Refresh Frequency:

Operating Conditions:

-20~60℃, 0~95%RH

Storage Conditions:

-40 - 80℃, 0 - 95%RH (Non - Condensing)

Operating Voltage:

DC 5V±0.2V, Ripple Below 100mV

Communication Interface:

① UART (3.3V/5V)

Highlight:

Integrated Air Quality Module

KGD AM 102 Air Quality Module

Low Power Air Quality Module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.742.855.2mm

Get Best Price

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price

86--17719566736

Contact Now

Product Description

Low - Power Integrated Air Quality Module KGD - AM - 102

Product Introduction

The laser dust sensor has a built - in MOX chip, enabling the simultaneous output of multiple indicators such as PM1.0, PM2.5, PM10, and VOC, meeting customers' needs for performance upgrades without changing the product structural design.

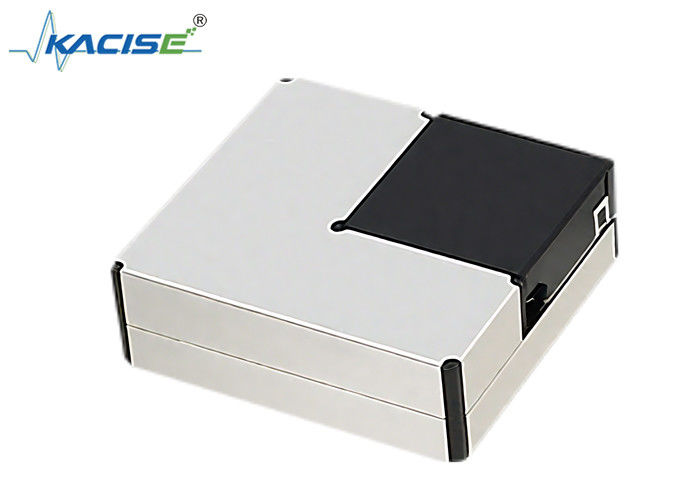

Low - Power Integrated Air Quality Module KGD - AM - 102 0

Product Features

Capable of simultaneously outputting multiple indicators such as PM1.0, PM2.5, PM10, and VOC.
Built into the laser dust sensor, fully compatible with customers' existing product structures, requiring no modifications.
Fast response, low power consumption, and good long - term stability.
Correction and compensation technology to ensure accuracy across the full temperature range.

Technical Parameters

Detection range	Dust: 0 - 500μg/m³ (Can detect up to 5000μg/m³)VOC: 0 - 10ppm
Detection accuracy	PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10: 0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading (GRIMM, 0~40℃, 50 ±10%RH) VOC: ±15% (@0.3-1ppm) ±25% (@30ppm)
Power - on stabilization time	≤180s(VOC)
Data refresh frequency	1s
Operating conditions	-20~60℃, 0~95%RH
Storage conditions	-40 - 80℃, 0 - 95%RH (Non - condensing)
Operating voltage	DC 5V±0.2V, ripple below 100mV
Communication interface	① UART (3.3V/5V) ② IIC(3.3V/5V)
Product dimensions	W38H35D12 mm
